No Residue Left Hfc - 227 Fm200 Fire Suppression System for Big Zone

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 70L/90L/100L/120L/180L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fm 200 suppression system

,

firefighting equipments

Agent:
Hfc-227ea
Zone Management:
Big Zone
Relative Humidity:
≤97%
Pattern Of Extinguishing:
Enclosed Flooding
Color:
Red
Actuation:
Automatic Or Manual
Agent:
Hfc-227ea
Zone Management:
Big Zone
Relative Humidity:
≤97%
Pattern Of Extinguishing:
Enclosed Flooding
Color:
Red
Actuation:
Automatic Or Manual
Product Description

No Residue Left Hfc - 227 Fm200 Fire Suppression System for Big Zone





Parameter:



No. specification Technical Parameter
1 Filling pressure 4.2Mpa 5.6Mpa
2 Scale of Protective region for one zone area:max single-zone is 800m2 volume:max single-zone is 3600m3
3 Spraying time ≤10s
4 Filling density ≤950kg/m3 ≤1080kg/m3
5 power DC24V/1.5A
6 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
7 Condition of reserving room for container temperature: -10~50℃, relative humidity: ≤97%
8 max working pressure 5.3Mpa 8.0Mpa
9 min working pressure 4.2Mpa 4.6Mpa





Description:



    Though Fm200 is a new and small part of the gas fire-fighting, it becomes more and more popular all over the world. Because of its born advantages-odorless, colorless and nontoxic, fm200 fire suppression system is considered as the best substitute of the popular series of halon type fire suppression system.



    The most attractive point is that the fm200 fire suppression system has no damage to the ozone layer, even just 1% possibility. Though the whole system looks very complicated, actually it is easy installation.

This fm200 fire fighting equipment only fits the occupied room or places, because it uses whole flooding way to extinguish the fire.





Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.





Competitive Advantage:



1. colorless, tasteless, low toxicity, and non-conductive



2. no residue or oily deposits



3. small storage space and easily pressurized in cylinder



4. compliance with environmental protection requirement



5. Large range of application area



6. perfect protection of apparatus or zones





Working principle:



When a fire happens, both the heat detector and smoke detector catch the differences and send the signal to the control panel. After receiving the signal, the control panel activates the alarm bell to tell people rapidly escape from the building / room. A few seconds later, the control panel activates the fm200 fire suppression system and put out the fire in 10s.





Simulated diagram:

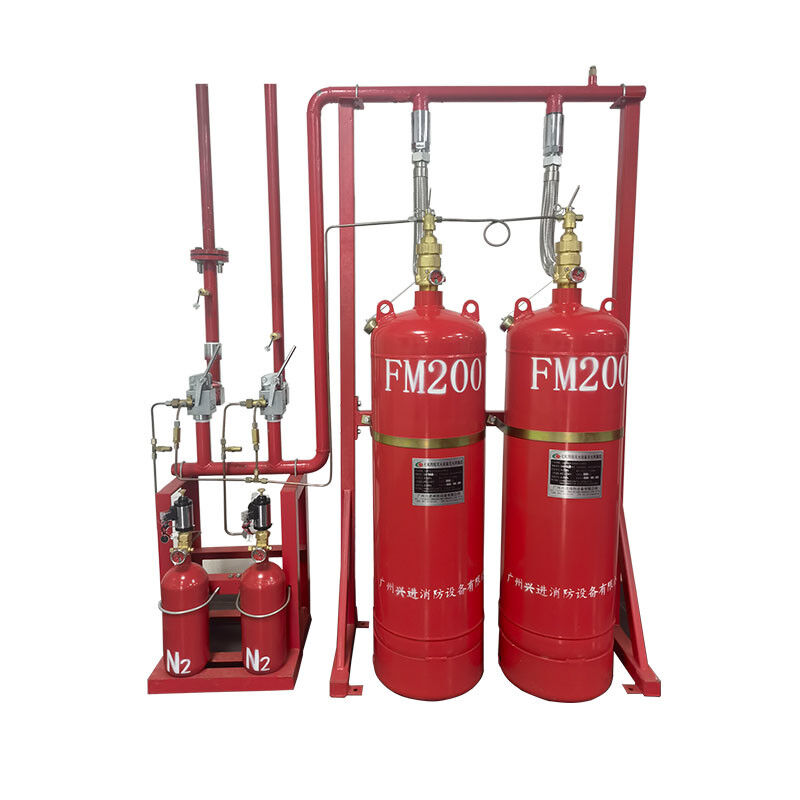

    Below attached is one mimic diagram of Hfc 227 Fire Extinguishing System for Big Zone





                      No Residue Left Hfc - 227 Fm200 Fire Suppression System for Big Zone 0





                   No Residue Left Hfc - 227 Fm200 Fire Suppression System for Big Zone 1

Company Introduction

Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.





No Residue Left Hfc - 227 Fm200 Fire Suppression System for Big Zone 2
