5.6Mpa Residential Hfc-227Ea Extinguishing System 180L Storage Reasonable Good Price High Quality

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 70L/90L/100L/120L/150L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

firefighting equipments

,

fire safety solutions

,

5.6mpa residential extinguishing system

Type:
Piped Network
Function:
Fire Suppression
Filling Pressure:
5.6Mpa
Pattern Of Extinguishing:
Enclosed Flooding
Nitrogen Pressure Of Driving Device:
6.0±1.0Mpa(20℃)
Actuation:
Automatic Or Manual
Type:
Piped Network
Function:
Fire Suppression
Filling Pressure:
5.6Mpa
Pattern Of Extinguishing:
Enclosed Flooding
Nitrogen Pressure Of Driving Device:
6.0±1.0Mpa(20℃)
Actuation:
Automatic Or Manual
Product Description

5.6Mpa Residential Hfc-227Ea Extinguishing System 180L Storage





Parameter:



No. specification Technical Parameter
1 Filling pressure 5.6Mpa
2 Scale of Protective region for one zone area:max single-zone is 800m² volume:max single-zone is 3600m³
3 Spraying time ≤10s
4 Filling density ≤1080kg/m3
5 power DC24V/1.5A
6 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
7 Condition of reserving room for container temperature: -10~50℃, relative humidity: ≤97%
8 max working pressure 8.0Mpa
9 min working pressure 4.6Mpa





Description:



1. Clean gas, colorless and tasteless and non-corrosive



2. Electric insulation, utilization for extinguishing of electrical combustion



3. No residue and pollution inside protection zone



4. No damage to ozone layer



5. Totally automatic system



6. Accurate control of protection zone



7. No need for employment of monitor staff



8. Manual or electromagnetic manipulation and mechanical manipulation





Applications:



    FM200 fire suppression is suitable for occupied room, because of its working principle is whole flooding. Those places that easily get fire require our fire suppression system. Taking the followings as examples:

    Telecommunication rooms

    Data and paper archives

    Switch gear rooms

    Computer rooms

    Military applications and cell sites

    High-tech medical

    Robotic equipment

    Telecommunication centers

    Textile manufacturing

    Records and data archives

    Electric utility facilities





Compositions:



    Hfc227ea Fire Suppression System With 180l Storage In 5.6mpa is mainly composed by three parts. Extinguishing devices and pipe fittings and electrical accessories.

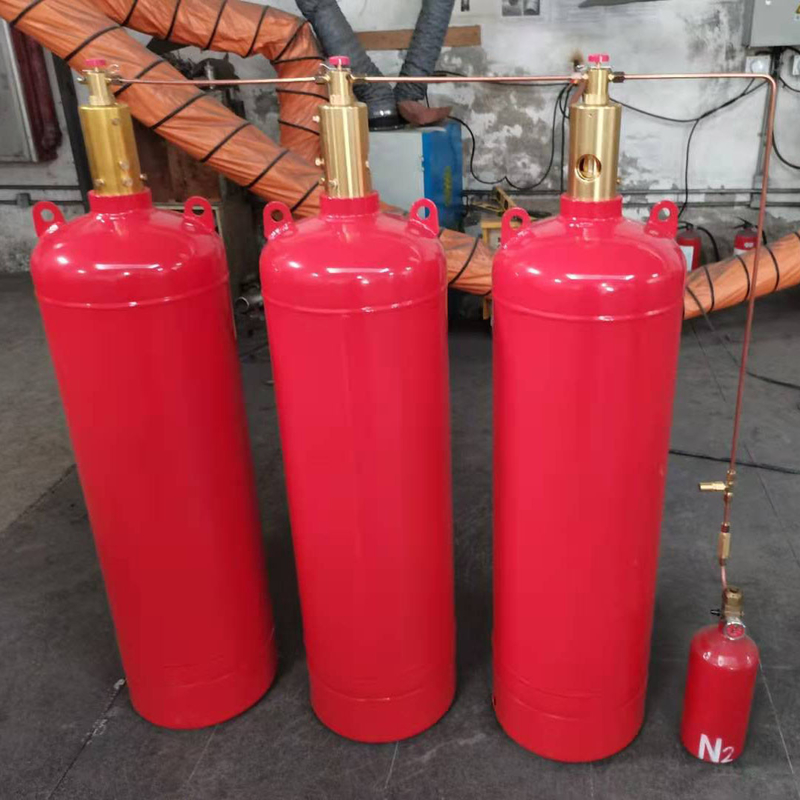

    Extinguishing devices are such things, like cylinder to fill and store fm200, frame and driving device(nitrogen cylinder) to trigger the storage cylinder to discharge agent and so on.



    Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow and so on.



    Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.



    These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.



    Here attached below is complete composition of whole system,





                     5.6Mpa Residential Hfc-227Ea Extinguishing System 180L Storage Reasonable Good Price High Quality 0





Working principle:



    Here is the illustration of working principle to whole system,





                      5.6Mpa Residential Hfc-227Ea Extinguishing System 180L Storage Reasonable Good Price High Quality 1
