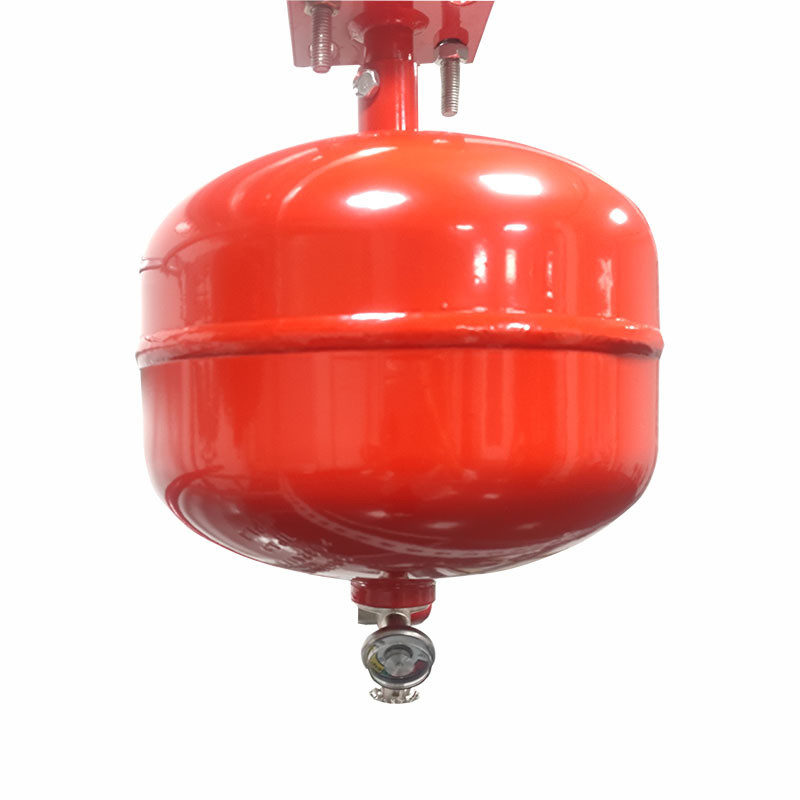

Heptafluoropropane / Fm200 20L Automatic Fire Extinguisher of Hanging Tank

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 8L/10L/12L16L/20L/30L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fm200 fire extinguisher

,

automatic fire extinguisher ball

Capacity:
20kg Fm200
Weight:
9kg
Diameter:
320mm
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Fm200(htc-227ea Or Heptafluoropropane)
Height:
460mm
Capacity:
20kg Fm200
Weight:
9kg
Diameter:
320mm
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Fm200(htc-227ea Or Heptafluoropropane)
Height:
460mm
Product Description

Heptafluoropropane / Fm200 20L Automatic Fire Extinguisher of Hanging Tank





Parameter:



No. Specification Technical Parameter
1 Filling pressure 1.6Mpa
2 Spraying time ≤8s
3 Working temperature 0~50℃
1 Starting mode Automatic





Description:



    20L Automatic Fire Extinguisher Of Hanging Tank is filled with fm200 agent. It is a kind of colorless and tasteless gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing.



    It is used in museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area.





Compositions:





    Normally, a complete fire suppression system contains three parts -- fire extinguishing device, pipe fitting and electrical elements. However, the suspense type fm200 fire suppression system does not need any pipe fitting, even the temperature-based suspension fm200 fire extinguisher type doesn’t require electrical elements.



    The components of this suspension type fm200 fire suppression are: round cylinder with fm200 fire agent, solenoid actuator ( electromagnetic type ), container valve, pressure switch, nozzle, temperature sensing glass ball ( temperature-based type ).



                                           Heptafluoropropane / Fm200 20L Automatic Fire Extinguisher of Hanging Tank 0





Advantages:



1 / Pure, odorless, colorless and clean

2 / No damage for ozone layer

3 / Environmentally friendly

4 / Convenient transportation and simple installation

5 / Saving space and money

6 / Short spraying time, less than 8s

7 / No residue left





Packages:



We usually pack products first the polyfoam and then wooden cases, and sometime we will make a palletizing for the further protection.

Heptafluoropropane / Fm200 20L Automatic Fire Extinguisher of Hanging Tank 1





Working principles:



1. Electromagnetic type:



    When a fire happens in the protected zone, a smoke detector can detect the smoke and send signal to the control panel. After receiving the signal, the control panel activates alarm bell to inform people that they should quickly run out from the protected zone if the protected zone is a kind of office, or to tell users that the protected zone has gotten a fire, they should go for a check and refill. After the control panel receiving signal from both smoke and heat detector, it will activate the fire extinguishing system and the fire agent sprays out within 8s.



2. Temperature-based type:



    When a fire happens, temperature will slowly climb up. As the temperature reaches to the special temperature of the temperature sensor, the glass ball will be burnt by the high temperature and then fire agent goes out for putting out fire within 8s. Here is a warning for users: we suggest that one protected zone should not have two or above temperature-based fire extinguishers in case that the temperature difference influence the efficiency of the extinguisher.
