70L fm200 system cylinder for 5.6Mpa Tube With CAL / CMA Certification

Product Details:
Place of Origin: China
Brand Name: xingjin
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: negotiation
Packaging Details: Plywood case
Delivery Time: 10-15 days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Model: QMQ5.6/120N-XJ Outside Diameter: 267 Mm
Height: 1560 Mm Net Weight: 139 Mm
High Light:

fire fighting extinguishers


fm200 extinguisher

Product Description



    70L fm200 system cylinder for 5.6Mpa pipe network is one kind of seamless steel container used to fill extinguishing agent. Here this type of container is adapted to relatively bigger protection zone. Usually, if it is used for cabinet type, it will locate in the corner. But, if it is used for pipe network type, you should leave one storage room for placement of cylinder group.



No. specification Technical Parameter
1 Filling pressure 4.2Mpa 5.6Mpa
2 Scale of Protective region for one zone area:max single-zone is 800m² volume:max single-zone is 3600m³
3 Spraying time ≤10s
4 Filling density ≤950kg/m3 ≤1080kg/m3
5 power DC24V/1.6A
6 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
7 Condition of reserving room for container temperature: -10~50℃, relative humidity: ≤97%
8 max working pressure 5.3Mpa 8.0Mpa
9 min working pressure 4.2Mpa 4.6Mpa





FM200 system cylinder is a storage vessel that contains the FM200 gas agent used in FM200 fire suppression systems. The cylinder is typically made of steel and is designed to withstand high-pressure conditions. It is available in different sizes depending on the size of the protected area and the amount of FM200 required for effective fire suppression. The cylinder is connected to a piping network that distributes the FM200 agent to the protected area in the event of a fire. When the FM200 is released, it floods the enclosure to extinguish the fire in seconds without causing any damage to sensitive equipment and people in the area. FM200 is a safe, clean, and environmentally friendly fire suppression agent widely used in data centers, server rooms, laboratories, archives, and museums.

An FM200 system cylinder is a critical component of an FM200 fire suppression system. It is a high-pressure cylinder designed to store the FM200 gas agent under pressure. The cylinder is made of steel and can withstand high temperatures and pressures, making it suitable for use in fire suppression systems.

The FM200 system cylinder comes in different sizes depending on the size of the area to be protected and the quantity of FM200 gas needed to suppress a fire. The cylinder is connected to the discharge pipe network of the fire suppression system. When the system senses a fire, it triggers the release of the FM200 gas from the cylinder, which floods the protected area, extinguishing the fire quickly and without causing any damage to sensitive equipment or materials.

The FM200 gas agent is non-toxic, clean, and environmentally friendly, making it ideal for use in sensitive environments like data centers, telecom rooms, and control rooms. The FM200 system cylinder is charged with the FM200 gas agent, and it must be serviced regularly to ensure it stays in good working condition and can effectively suppress fires when needed.




1. Clean gas, colorless and tasteless and non-corrosive

2. Electric insulation, utilization for extinguishing of electrical combustion

3. No residue and pollution inside protection zone

4. No damage to ozone layer


Competitive Advantage:


1. Management of multiple zones

2. Efficient fire protection in big region

3. Less occupation in fire-controlled space

4. Relatively cheap price than cabinet or hanging type if zone is big and multiple




1. Mechanical parts: cylinder with container valve, frame for cylinder group, driving cylinder, frame for driving device, high pressure hose etc. It is mainly used for storing fm200 agent

2. Electrical parts: smoke detector, heat detector, bell etc.

3. Pipe fittings: conduit, connector, elbow, flange etc.

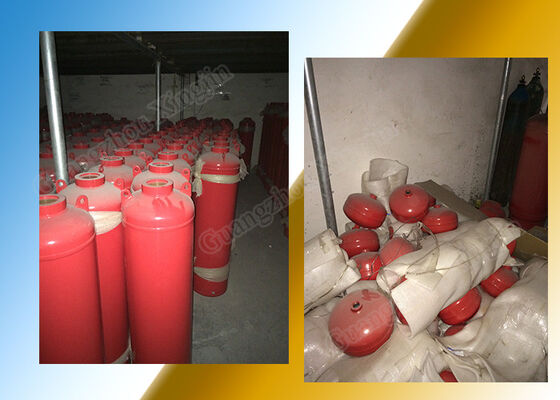

70L fm200 system cylinder for 5.6Mpa  Tube With CAL / CMA Certification 0






1. Choice for storage room, including ambient environment and volume

2. A separated storage for fm200 fire suppression system

3. Design of pipeline, including placement of conduits and connection

4. Installation, integration of each parts and connection between parts


Company Introduction:

Guangzhou Xingjin Fire Equipment Co., Ltd., which is situated in Guangzhou, which is a key hub for communication between China and the rest of the globe, is surrounded by easy access to transit and a stunning natural environment. We are a manufacturer, and our professional and experienced staff, which includes the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, devotes its time to the study and development of HFC-227ea (FM200) products. The pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are currently among the most commonly utilized of our well-known FM200 products. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China. 70L fm200 system cylinder for 5.6Mpa  Tube With CAL / CMA Certification 1


Part Cases Show:

• In Sichuan province, the project cases are Bei Xin Run Yuan, Dong Lu Yi Jing, Yuewang Tower, Times Flower City, Shude Middle School, Wal - Mart near ASCB, New Hope Building, Xin Yi Zi Jin City, Tobacco Building, etc.

• In Guangdong province, the project cases are GAC Group, 10086 in Shenzhen, Haizhu Industrial and Commercial Bureau, Wanbao Air Controller, Yingfu Building in Shenzhen, Bank of Communication in Zhanjiang, Lijin Square in Zhanjiang, Zhanjiang Broadcasting and TV Station, etc.

• In Shandong province, the project cases are Lushang Office Building, Lushang Marketing Center, etc.


Why Choose Us

• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.

After-Sale Service

• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.


Q1: Are you a trading company or a manufacturing, first?
A1: We are a producer.


Q2: Do OEM items exist?
A2: Your own artwork and design are appreciated.


Q3: Where is your factory located? Can I go there?
A3: Shilou, Panyu, Guangzhou, Guangdong, China is where our factory is located. Yes, of course. We always look forward to seeing you.


Q4: How can I get to your plant ?
A4: You can take a taxi or take the subway to get here because of how easily it can be reached. If arriving by subway, you must take the line 4 and alight at the Shiqi station. Take the No. 126 bus out of the station after that, and get off at Yuexi station.
