Home > products > Automatic Fire Suppression Tube > White 0.75m³ Novec 1230 Automatic Fire Extinguishing Tube

White 0.75m³ Novec 1230 Automatic Fire Extinguishing Tube

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: XJ300N

Payment & Shipping Terms

Minimum Order Quantity: 100 sets

Price: negotiation

Packaging Details: Plywood case, carton or as requirement

Delivery Time: 10-15 working days

Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 300 sets per month

Get Best Price
Product Details
High Light:

0.75m³ Automatic Fire Extinguishing Tube

,

18mm Automatic Fire Extinguishing Tube

Type:
Automatic Fire Extinguishing Tube
Agent:
Novec 1230
Color:
White
Length:
2000mm, 3000mm
Diameter Of The Tube:
18mm
Coverage:
0.75 M³
Type:
Automatic Fire Extinguishing Tube
Agent:
Novec 1230
Color:
White
Length:
2000mm, 3000mm
Diameter Of The Tube:
18mm
Coverage:
0.75 M³
Product Description

Novec 1230 automatic fire extinguishing tube



Novec 1230 fire extinguishing products automatic fire extinguishing tube





Product Advantages:



1) Totally automatic and independent of electricity.



2) Convenient installation.



3) Use FM200 or FK-5-1-12 (Novec1230) cleaning agent. Non-toxic, harmless to human body.



4) Environmentally friendly



5) Small size ,not much space.



6) Wide-range in application.







Technical Specification:



Model Type of agent Amount of agent(g) Length of tube(mm) Diameter of tube(mm) Approximate maximum coverage(m³) Operation temperature(℃)
XJ200H Hfc-227ea 500±5 2000 18 0.5 From -40 to 60
XJ300H Hfc-227ea 750±10 3000 18 0.75 From -40 to 60
XJ200N Novec 1230 500±5 2000 18 0.5 From -40 to 60
XJ300N Novec 1230 750±10 3000 18 0.75 From -40 to 60



Description:

Automatic fire suppression tube is designed for protection of small enclosures with greater risk of fire. It operates automatically without any power supply by detecting higher temperature. When temperature in the protected enclosure rises to a critical threshold, the detection tube melts down at the point where affecting temperature is the highest. Melting the tube creates a “nozzle” releasing the entire extinguishing agent stored in the tube directly onto the source of the fire.

White 0.75m³ Novec 1230 Automatic Fire Extinguishing Tube 0



Application:

Based on the volume of protected enclosure, the tubes are suitable for the ranges but even more than those:

Engine compartments of boats;

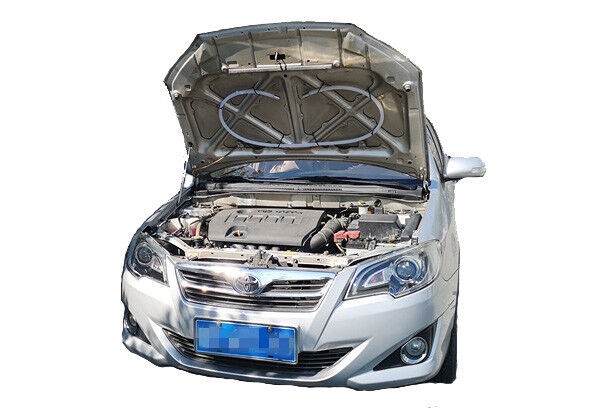

Engine compartments of on-road vehicles: car, SUV, van, recreational vehicle, mini bus, etc.

Engine compartments of off-road vehicles: ATV, small tractor, forklift truck, small construction machine, golf cart, grass cutting machine, etc.

Electrical switchboard, fuse box, rack, electrical cabinet, etc.
