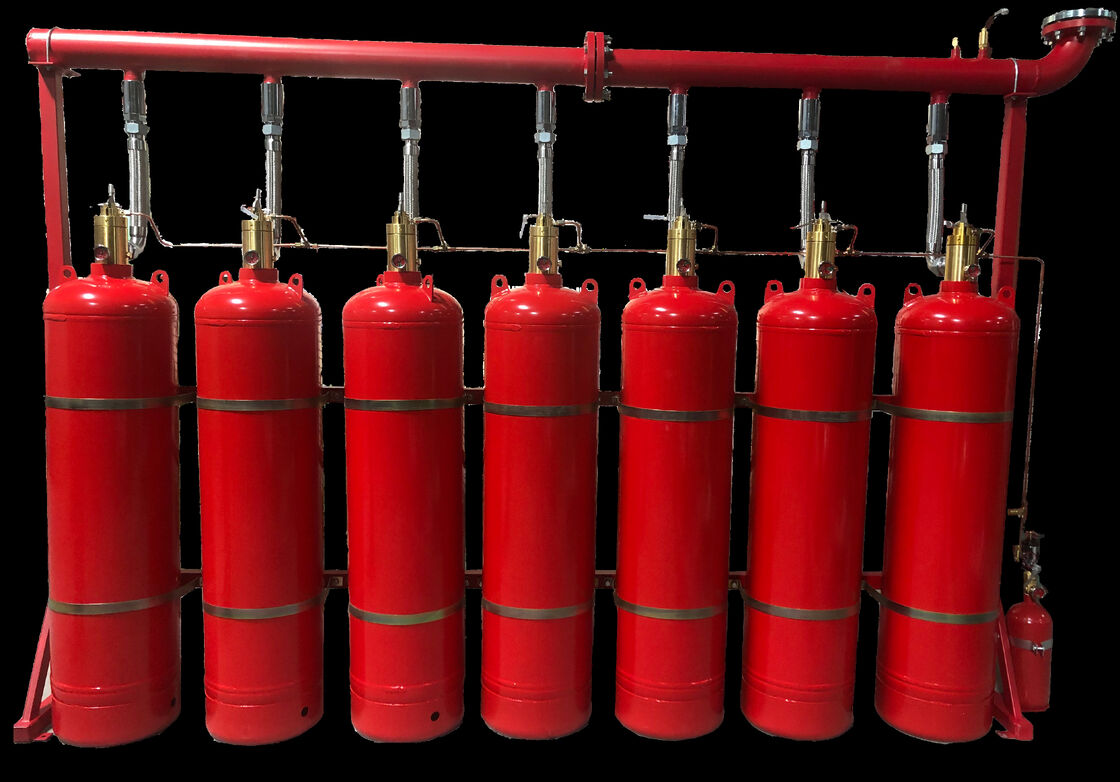

Hfc227ea Fire Extinguishing System Reasonable Good Price High Quality

Product Details

Place of Origin: China

Brand Name: Xingjin / OEM

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2, QMP70/5.6, QMP90/5.6, QMP120/5.6

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
Highlight:

fm 200 system

,

fm200 suppression system

Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea (FM200)
Working Pressure:
4.2MPa / 5.6MPa
Color:
Red
Discharge Time:
≤10s
Power:
DC24V/1.6A
Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency Manual
Product Name:
Fm200 Fire Suppression System
Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea (FM200)
Working Pressure:
4.2MPa / 5.6MPa
Color:
Red
Discharge Time:
≤10s
Power:
DC24V/1.6A
Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency Manual
Product Name:
Fm200 Fire Suppression System
Product Description



40L 4.2MPa Pipe Network Hfc227ea Fire Extinguishing System

Description

HFC-227ea(FM200) clean agent automatic fire suppression system is widely used in China and all over the world. Its most strong point is that this system meets the world’s requirement of environmental protection. It will not hurt the ozone layer even for 1% possibility. The other strong point is that such as the clean, odorless and colorless agent, the easy installation and so on, make it the best substitute for the halon 1301 in people’s mind.
Fm200 gas fire suppression system works more efficient when it is equipped with the electric elements. Besides, this system requires a little storage room outside but next to the protected zone. It helps save places. This system also distinguishes itself by the fast spraying time with less than 10s.
Hfc227ea (also known as FM200) is a clean agent fire extinguishing system that is commonly used to protect high value assets such as computer rooms, data centers, and archives. It is a colorless, odorless, and electrically non-conductive gas that is discharged as a fine mist to extinguish fires with minimal damage to protected property.

The Hfc227ea system operates by extinguishing fires through a combination of heat absorption and chemical inhibition of the combustion process. When a fire breaks out, the system automatically detects the fire and activates the Hfc227ea agent to suppress it before it can spread.

The system is designed to provide complete protection by flooding the protected area with the Hfc227ea gas, which is stored in pressurized cylinders or tanks. The system is activated either manually or automatically by a fire detection and alarm system. Once activated, the Hfc227ea agent is discharged through a network of pipes and nozzles in the protected area. The gas quickly fills the entire space, effectively extinguishing the fire.

Overall, the Hfc227ea fire extinguishing system is a highly effective and environmentally friendly solution for protecting high value assets from fire damage. Its clean agent properties make it ideal for use in sensitive areas where damage from water, foam or other agents can cause significant damage beyond the fire itself.

Parameters

NO. Specifications 4.2Mpa system 5.6Mpa system
1 Capacity 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr 70Ltr,90Ltr,120Ltr
2 Device model QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 QMP70/5.6, QMP90/5.6, QMP120/5.6
3 Filling pressure 4.2Mpa 5.6Mpa
4 Max filling rate 0.95kg/L 1.08kg/L
5 Discharge time ≤10s
6 Power DC24V/1.6A
7 Nitrogen driving device 6.0±1.0Mpa
8 Storage surroundings Temperature:-10~50℃
Relative humidity:≤97%
9 Proportion ≤800m²
10 Volume ≤3600m³




Hfc227ea Fire Extinguishing System Reasonable Good Price High Quality 0


Components

The pipe network type fm200 fire suppression system consists of actually three parts: the The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.

The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.

Hfc227ea Fire Extinguishing System Reasonable Good Price High Quality 1

Application

• Computer room, communication room, power distribution room, library, archives,
Museum, etc.

• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.


Company Introduction

Guangzhou Xingjin Fire Equipment Co,.Ltd. is specialized in fire suppression system. Our Headquarter is located in Panyu District, Guangzhou, which is the south door of China mainland. Our company has complete and scientific quality management system.The sincerity, powerful strength and good quality are recognized by fire industry. All Xingjin staffs welcome everyone from all directions and all industries to come here for visit, guidance and business cooperation.

Our company specializes in all kinds of Heptafluoropropane fire suppression systems,aerosol fire suppression systems, and we possess an experienced research and development team who have more than 20 years work experiences in national fire suppression career.



Hfc227ea Fire Extinguishing System Reasonable Good Price High Quality 2


After-Sale Service

• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
