16L Automatic FM200 Hanging Fire Suppression System Reasonable Good Price High Quality

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: XQQC16/1.6

Payment & Shipping Terms

Minimum Order Quantity: 10 set system

Price: negotiation

Packaging Details: Plywood case or paper carton

Delivery Time: 10-15 working days after payment or receipt of L/C

Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 10000 sets per month

Get Best Price
Product Details
High Light:

FM200 Fire Suppression System

,

16L Hanging Fire Suppression System

,

Hfc-227ea FM200 Hanging System

Cylinder Volume:
16L
Agent:
Hfc-227ea
Working Pressure:
1.6MPa
Zone Management:
One Zone
Placement:
Hanging On The Wall/ceiling
Standard Of Examination:
GB25972-2010
Pattern Of Extinguishing:
Enclosed Flooding
Actuation:
Electrical
Cylinder Volume:
16L
Agent:
Hfc-227ea
Working Pressure:
1.6MPa
Zone Management:
One Zone
Placement:
Hanging On The Wall/ceiling
Standard Of Examination:
GB25972-2010
Pattern Of Extinguishing:
Enclosed Flooding
Actuation:
Electrical
Product Description

16L Automatic FM200 Hanging Fire Suppression System





Description:

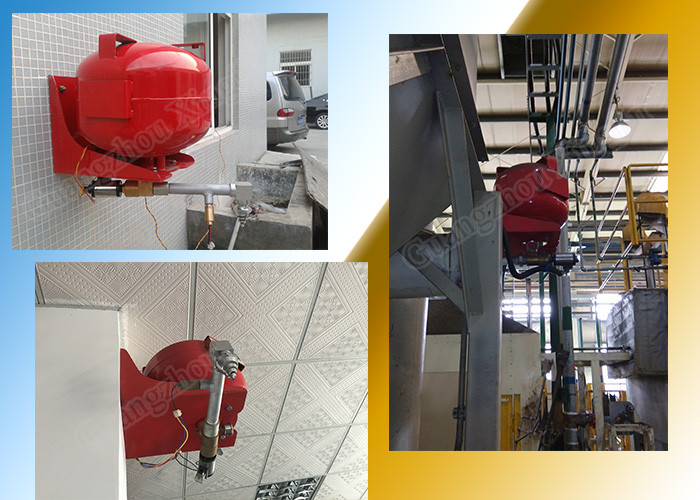

Hanging type FM-200 fire extinguisher

A hanging type FM-200 fire extinguisher is a type of fire suppression system that uses FM-200 clean agent to extinguish fires. The fire extinguisher is installed in an area or room to provide fire protection using a specialized hanging bracket or sling that suspends the extinguisher from the roof or ceiling.

The hanging type FM-200 fire extinguisher is an effective fire suppression solution for areas with sensitive equipment or assets where a clean agent is necessary to avoid damage from water or foam. The system works by releasing the FM-200 agent into the protected space when a fire is detected, which extinguishes the fire by removing the heat and oxygen needed for combustion.

The FM-200 agent is stored in a cylinder and is discharged through a network of piping and nozzles. The system can be activated manually or automatically through a fire detection system. The hanging type FM-200 fire extinguisher is also an ideal fire suppression solution for spaces that are difficult to access or where floor space is limited.

This type of fire extinguisher is commonly used in data centers, computer rooms, switchgear rooms, and other areas where electrical equipment is present and a clean agent is necessary for fire protection.

  • Preset and independent
  • It is easily wall or ceiling mounted in the protected area to directly put out the fire, without pipe network distribution.
  • It has two activation methods: automatically send the signal to control panel for releasing the agent by electricity and manual control mode.



                                16L Automatic FM200 Hanging Fire Suppression System Reasonable Good Price High Quality 0



Parameters



No Specifications Parameters
1 Tank size 16Ltr, 20Ltr, 30Ltr
2 Device model XQQC16/1.6, XQQC20/1.6, XQQC30/1.6
3 Storage pressure 1.6mpa
4 Maximum working pressure 2.5mpa
5 Discharge time ≤8s
6 Maximum filling rate 1kg/L
7 Device starting power DC24V/1.6A
8 Environment temperature of protection zone 0℃~50℃



Below data refers to regular temperature at 20 centigrade and atmospheric pressure at 1 bar. The max coverage would vary a little from the ambient temperature and pressure on the real condition.



Device model Filling amount (kg) Maximum working pressure(Mpa) Storage pressure (Mpa) Maximum coverage
(m³)
Starting mode
XQQC16/1.6 16 2.5 1.6 22.22 Solenoid actuator

Starting power:
DC24V/1.6A
XQQC20/1.6 20 2.5 1.6 27.78
XQQC30/1.6 30 2.5 1.6 41.67





Compositions:



Hanging type fm200 fire suppression device can be divided into two types: one is the electromagnetic type, the other is the temperature-controlled type.



The electromagnetic type hanging fm200 fire suppression device consists of a fm200 cylinder, a container valve, a solenoid actuator, a pressure switch, a stainless steel pipe, and a nozzle.



The temperature-controlled type hanging fm200 fire suppression system prefers a unit of temperature sensor instead of container valve and solenoid valve.





Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.





Competitive Advantage:



    1. Small but effective

    2. Extremely simple installation

    3. Little space for placement of it

    4. Hanging on the ceiling or wall

    5. Low cost for little protective zone

    6. Colorless, odorless and pure

    7. 0% opportunity of hurting the ozone layer

    8. Do no harm to the environment

    9. Good substitute to the halon series



Company Introduction:

Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and our professional and experienced staff, which consists of the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, is dedicated to the study and development of HFC-227ea (FM200) products. The FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are all currently commonly utilized. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.


16L Automatic FM200 Hanging Fire Suppression System Reasonable Good Price High Quality 1



FAQ:



1. Are you a tradding company nor a manufacturer?



    We are manufacturer.



2. How long will you use for a usual quantity order?



    For usual order(40 pics), we often spend 15 working days in makeing; for some big orders, it is better to communicate with our saler.



3. In what way do you want the payment paid?



    We accept all kind of payment way, but we will more grateful if you use simple ways like T/T or Paypal.
