Enclosed Flooding FM200 Fire Suppression System Without Pollution 38kg

Product Details:
Place of Origin: China
Brand Name: Xingjin / OEM
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 28000 sets per week
  • Detail Information
  • Product Description

Detail Information

Cylinder Volume: 40L, 70L, 90L, 100L, 120L, 150L, 180L Capacity Of Gas: 38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing: Enclosed Flooding Agent: Hfc-227ea (FM200)
Working Pressure: 4.2MPa / 5.6MPa Color: Red
Discharge Time: ≤10s Power: DC24V/1.5A
Starting Mode: Automatic, Electrical Manual, Mechanical Emergency Manual Product Name: Fm200 Fire Suppression System
High Light:

38kg Fire Suppression System

,

Flooding Fire Suppression System

,

38kg fm200 flooding system

Product Description

Enclosed Flooding FM200 Fire Suppression System Without Pollution for Telecommunication Room

Description


• Automatic HFC-227ea/FM200 fire extinguishing system is a set of fire extinguishing, automatic control and fire detection in one system which is the modern intelligent automatic fire extinguishing device.



• HFC-227ea/FM200 is a kind of colourless, odorless, tasteless,noncorrosive, electrical insulated, non-conductive fire agent.



• The ozone-depleting potential value is zero.



• It is currently an ideal substitute for the halon extinguishing agent.



• Assemble agent according to different filling pressure, different capacity, different extinguishing agent and different starting mode.



Parameters



NO. Specifications 4.2Mpa system 5.6Mpa system
1 Capacity 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr 70Ltr,90Ltr,120Ltr
2 Device model QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 QMP70/5.6, QMP90/5.6, QMP120/5.6
3 Filling pressure 4.2Mpa 5.6Mpa
4 Max filling rate 0.95kg/L 1.08kg/L
5 Discharge time ≤10s
6 Power DC24V/1.5A
7 Nitrogen driving device 6.0±1.0Mpa
8 Storage surroundings Temperature:-10~50℃
Relative humidity:≤97%
9 Proportion ≤800m²
10 Volume ≤3600m³





Enclosed Flooding FM200 Fire Suppression System Without Pollution 38kg 0



Components




The pipe network model of fm200 fire suppression system consists of actually three parts: the pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.



The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.

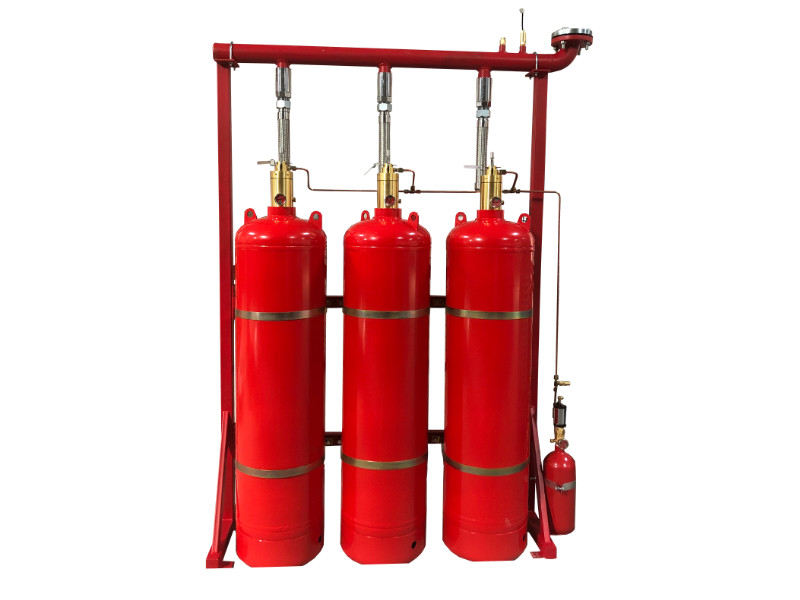

The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.





Enclosed Flooding FM200 Fire Suppression System Without Pollution 38kg 1

Enclosed Flooding FM200 Fire Suppression System Without Pollution 38kg 2

Application


      The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:



                                                                                                                      - Telecommunications and data processing

                                                                                                                      - Switch gear rooms

                                                                                                                      - Military applications and cell sites

                                                                                                                      - High-tech medical application

                                                                                                                      - Computer rooms

                                                                                                                      - Telecommunication centers

                                                                                                                      - Records and data archives

                                                                                                                      - Testing/imaging equipment

                                                                                                                      - Reference material

                                                                                                                      - Chemical laboratories

                                                                                               Enclosed Flooding FM200 Fire Suppression System Without Pollution 38kg 3





Packages



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.



                                                                              Enclosed Flooding FM200 Fire Suppression System Without Pollution 38kg 4







Company Introduction



Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.


                                                                  Enclosed Flooding FM200 Fire Suppression System Without Pollution 38kg 5




After-Sale Service


• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
