Direct Type Fire Detecting Tube FM200 Fire Suppression Device 4.2Mpa Reasonable Good Price High Quality

Product Details:
Place of Origin: China
Brand Name: xingjin
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: negotiation
Packaging Details: Plywood case
Delivery Time: 10-15 days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit c ard
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Volume: 70L Nominal Pressure: 5.7Mpa
Max Working Pressure: 12.1Mpa Working Temperature: 0℃-49℃
Material: Aluminum Steel Printed Color: Red
High Light:

FM200 Fire Suppression Device


4.2Mpa Fire Suppression Device

Product Description

42kg CO2 Fire Extinguisher for Fire Detected Tube Extinguisher
A CO2 fire extinguisher is a particular kind of extinguisher that extinguishes fires by using carbon dioxide gas. Due to the fact that it doesn't leave any residue or harm the equipment, this kind of extinguisher is frequently utilized in locations with electrical equipment or volatile substances.
By displacing the oxygen that feeds the fire, the CO2 fire extinguisher effectively suffocates it. When the extinguisher is activated, CO2 gas from a high-pressure cylinder inside the extinguisher is expelled through a nozzle.
The use of CO2 fire extinguishers on Class A fires (fires containing typical flammable materials like wood, paper, or cloth) is not advised since they lack the cooling impact necessary to prevent the fire from re-igniting. They work best on Class B and Class C fires, which involve electrical equipment and combustible liquids like gasoline, oil, or grease.

NO. Type of Device Direct Type Fire Detecting Tube CO2 Fire Suppression Device Indirect Type Fire Detecting Tube CO2 Fire Suppression Device Direct Type Fire Detecting Tube FM200 Fire Suppression Device
1 Device model WZ-Q/T-EZ6-XJ60 WZ-Q/T-EJ42-XJ60 WZ-Q/T-QZ3-XJ60
2 Storage Pressure
5.17Mpa 5.17Mpa 2.5Mpa
3 Max. Working Pressure 12.1Mpa 12.1Mpa 4.2Mpa
4 Min. Agent Needed for A Unit 2.5kg/m³ 1.5kg/m³ 0.7kg/m³
5 Max Agent Capacity 6kg 42kg 3kg
6 Max. Length of Fire Tube 25m 25m 20m
7 Max. Length of Release Tube -- 12m --
8 Max. Filling Rate 0.6kg/L 0.6kg/L 1.12kg/L
9 Working temperature 0℃~49℃ 0℃~49℃ 0℃~50℃

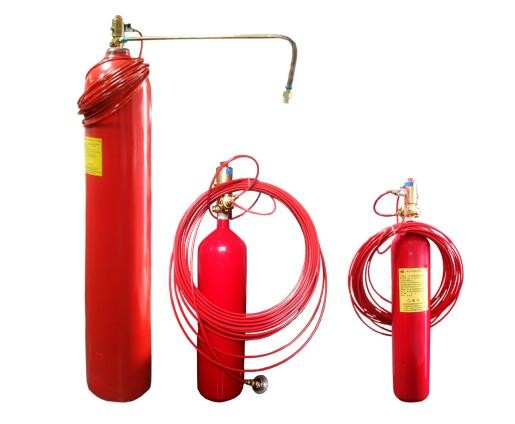

Direct Type Fire Detecting Tube FM200 Fire Suppression Device 4.2Mpa Reasonable Good Price High Quality 0
This extinguishing device does not require pipe fittings or electrical components to form a system. It might even be an actual fire suppression system.
A cylinder, a fire detecting tube with a maximum length of 25 meters, a container valve, and two different types of agents—co2 and fm200—make up the direct type fire detecting tube fire suppression system.
The components of the indirect type fire detecting tube fire suppression system are identical to those of the direct type with the addition of a release tube. Unlike the direct type, where the fire detecting tube can be used for both detecting and releasing, this system only uses the fire detecting tube for the detecting function, necessitating the addition of a release tube.
The following benefits apply to the fire detecting tube fire suppression system:
1. Easy transportation and installation. The only thing left to do after installing the cylinder is to install the detecting tube around a potential source of fire because this system integrates fire fighting and alarm function together and does not require matching electrical elements and pipe fittings.
2. The manual start mode. The system may be turned on without any power. The working principle of this device relies on internal storage pressure rather than an external force to activate it. The agent will release after the fire breaks the sensing tube.
3. Not much room is occupied. Instead of protecting a protected zone, this approach is more suited for securing a system like a communications network. The cylinder is fixed to the outside cabinet and won't take up much space.
Environmental Management System Certificate
Occupational Health and Safety Management System Certificate
Quality Management System Certificate
Certificate of China Compulsory Product Certification
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.

Direct Type Fire Detecting Tube FM200 Fire Suppression Device 4.2Mpa Reasonable Good Price High Quality 1
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
