2.5Mpa Red Fm200 Clean Agent Fire Detection Tube With 0-50℃ Working Temperature

Product Details:
Place of Origin: China
Brand Name: xingjin
Model Number: WZ-Q/T-QZ3-XJ60
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: negotiation
Packaging Details: Plywood case
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 200 sets per week
  • Detail Information
  • Product Description

Detail Information

Storage Pressure: 2.5Mpa Capacity Of Agent: 3kg Fm200
Zone Management: Single Pattern Of Extinguishing: Enclosed Flooding
Standard Of Examination: GB25972-2010 Max Length Of Detecting Tube: 20m
High Light:

Fm200 Clean Agent Fire Detection Tube


2.5Mpa Clean Agent Fire Detection Tube

Product Description

3Kg Fm200 Fire Extinguisher Tube With GB25972-2010 Standard



No. Specification Technical parameter
1 Type Fm200 direct type
2 model WZ-Q/T-QZ3-XJ60
3 Working pressure 2.5Mpa
4 Max working pressure 4.2Mpa
5 Working temperature 0-50℃
6 Density of unit volume 0.7kg/m3
7 Max length of detecting tube 20m
8 Quantity of agent 3kg




This device uses an extinguishing agent store and a pressurized fire trace tube to detect fires. As an extinguishing agent for this device, you can use carbon dioxide or HFC-227ea/FM200.


Usually, the structure would be designed to support both direct release and indirect release discharge types. The system is activated by the fire trace when a fire initially starts, and an extinguishing agent is then sent through the fire trace tube. It is commonly referred to as a straight release. The fire trace tube is used in a different technique, which we call "indirect release," to release an extinguishing agent as soon as it detects a fire.


The fire trace extinguishing device can be used to treat the lack of fixed equipment efficiently. because it can be used in places where it is difficult to install fire alarm systems, pipes, or nozzles, such as tight spaces or odd circumstances.

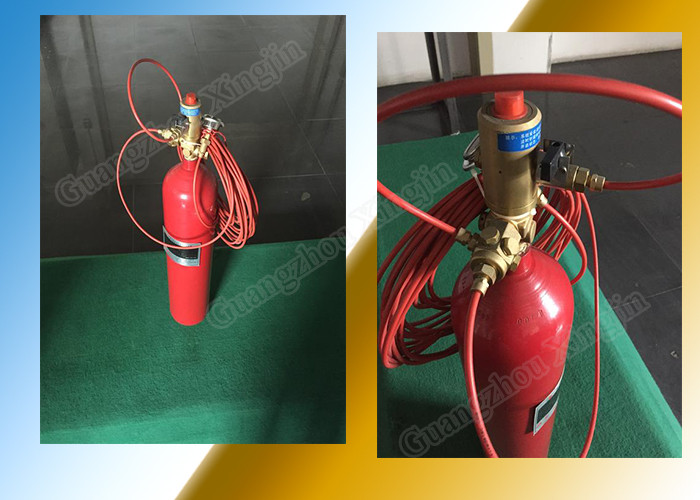

2.5Mpa Red Fm200 Clean Agent Fire Detection Tube With 0-50℃ Working Temperature 0



Power plants, communications, broadcasting, petrochemical, railway ans so on system.


              2.5Mpa Red Fm200 Clean Agent Fire Detection Tube With 0-50℃ Working Temperature 1



Working principle:


Because of its soft characteristics, the fire detecting tube can be fixed anyplace a fire could readily start. As a result, there is a potential that a fire inside the cabinet will spread quickly and damage the fire detecting tube. The fire agent emerges and sprays out of the hole where the fire detecting tube broke to put out the fire when the air pressure changes as a result of the tube breaking. Users are prompted to investigate the fire and recharge the system by the little alarm bell that sounds on top of the fire extinguisher.





There aren't any electrical parts or pipe fittings needed to establish a system for this extinguishing device. It might be used as a system for putting out flames.


The direct type fire detecting tube fire suppression system consists of a cylinder, a fire detecting tube that can be up to 25 meters long, a container valve, and two distinct kinds of agents: co2 and fm200.


The addition of a release tube makes the indirect type fire detecting tube fire suppression system's components equivalent to those of the direct type. This method only utilizes the fire detecting tube for the detecting function, making the presence of a release tube necessary. This differs from the direct type, which employs the fire detecting tube for both the detecting and releasing functions.


2.5Mpa Red Fm200 Clean Agent Fire Detection Tube With 0-50℃ Working Temperature 2

The fire detecting tube fire suppression device has the following advantages:


1. Simple installation and transit. Because this system integrates fire fighting and alarm function together and does not require matching electrical elements and pipe connections, all that is required to be done after installing the cylinder is putting the detecting tube around a potential source of fire.


2.Secondly, the manual start mode. It is possible to activate the system without any power. The device's activation is based on internal storage pressure rather than an outside force in its basic design. After the fire smashes the sensor tube, the agent will release.


3.There isn't much space taken up. This strategy is more suited for securing a system like a communications network rather than guarding a protected zone. The cylinder won't take up much room because it is fastened to the outer cabinet.​​

Company Introduction


Strategically situated in Guangzhou, a city renowned for its easy access to transit and scenic surroundings, is Guangzhou Xingjin Fire Equipment Co., Ltd. Guangzhou is crucial in promoting communication and trade since it is situated where China's home market meets the international arena. Our business makes the most of this favorable location to position itself as the industry's top manufacturer.


We are dedicated to the study and development of HFC-227ea (FM200) fire suppression systems at Guangzhou Xingjin Fire Equipment Co., Ltd. Program design specialists, adept installation technicians, quality inspectors, and a quick-response after-sales service staff make up our committed team of professionals. In order to satisfy the demands of our clients, we work together to create superior goods and solutions.


Our range of FM200 products has gained widespread popularity and enjoys extensive usage across various sectors. These include:

  • Pipe Network FM200 Fire Suppression System: This system utilizes a network of pipes to distribute FM200 agent throughout the protected area, ensuring comprehensive fire suppression coverage.
  • Cabinet Type FM200 Fire Suppression System: Designed specifically for cabinet enclosures, this system provides targeted fire protection for valuable equipment and materials housed within cabinets.
  • Automatic FM200 Fire Extinguisher (Wall-mounted Style): This ceiling-mounted automatic extinguisher is an efficient and compact solution for fire suppression, particularly suitable for areas with limited space.
  • Fire Detecting Tube Suppression System: This innovative system employs fire detecting tubes that react to heat and automatically discharge the FM200 agent, swiftly suppressing fires.
  • Automatic Fire Suppression Tube: This tube-based system is designed to detect and suppress fires within confined spaces, making it ideal for use in small enclosures or equipment compartments.

Thanks to our unwavering commitment to delivering high-quality products and exceptional customer service, Guangzhou Xingjin Fire Equipment Co., Ltd. has garnered a strong reputation in the Chinese market. We are proud to have earned the trust and satisfaction of our.
