Guangzhou Xingjin Fire Equipment Co.,Ltd.

FM200 Fire Suppression System High Pressure Cylinders Detection Control Panel

Product Details:
Place of Origin: China
Brand Name: Xingjin / OEM
Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2, QMP70/5.6, QMP90/5.6, QMP120/5.6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 28000 sets per week
  • Detail Information
  • Product Description

Detail Information

Cylinder Volume: 40L, 70L, 90L, 100L, 120L, 150L, 180L Capacity Of Gas: 38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing: Enclosed Flooding Agent: Hfc-227ea (FM200)
Working Pressure: 4.2MPa / 5.6MPa Color: Red
Discharge Time: ≤10s Power: DC24V/1.6A
Starting Mode: Automatic, Electrical Manual, Mechanical Emergency Manual Product Name: Fm200 Fire Suppression System
High Light:

FM200 Fire Suppression System


High Pressure FM200 Fire Suppression System

Product Description


Guangzhou Factory Price HFC 227EA Gas Automatic FM200 Fire Suppression System

The FM200 fire suppression system is a popular and exceptionally effective fire prevention method for putting out fires in enclosed spaces. It employs FM200, a clean gaseous extinguishing chemical known for its speedy fire suppression and low environmental impact. The FM200 system is widely utilized in critical areas such as data centers, server rooms, control rooms, museums, labs, and other sites where water-based fire suppression approaches could substantially disrupt operations.

The following are the primary characteristics and elements of an FM200 fire suppression system:

  • FM200 Extinguishing Agent: FM200 is a colorless, odorless, electrically inert gas that extinguishes fires by removing heat from the fire triangle. When activated, it is stored in high-pressure cylinders and released into the enclosed space as a gas.
  • Detection and Control Panel: A sensor and control panel linked to the device continuously scans the enclosed space for fire signs. When a fire is detected, it gathers data from numerous fire detection systems, including smoke detectors and heat detectors, and when a fire is detected, FM200 is released.
  • Distribution Network: A network of pipes and fittings is set up to disperse the FM200 agent uniformly throughout the protected area. When triggered, these pipes are precisely positioned to give comprehensive coverage and effective gas dispersion.
  • Discharge Nozzles: To properly spread the FM200 agent, strategically placed discharge nozzles with precise engineering are installed along the pipe network. These nozzles guarantee even distribution and uniform coverage, maximizing the system's extinguishing power.
  • Activation Mechanism: Strategically arranged discharge nozzles with precision engineering are fitted along the pipe network to adequately spread the FM200 chemical. These nozzles ensure even distribution and uniform coverage, boosting the extinguishing power of the system.
  • Room Integrity: The FM200 system can be activated automatically by the detection and control panel, but it can also be operated manually by authorized persons using a manual release station. Because of its adaptability, it is possible to respond rapidly and tailor fire suppression to the specific circumstances.
  • Safety Precautions: The FM200 system requires the integrity of the protected space to function properly. The chamber or enclosure must be firmly sealed in order to keep the FM200 agent's concentration high enough to effectively suppress the fire.

The FM200 fire suppression system is well-known for its fast response times, powerful fire suppression capabilities, and minimal interruption to populated areas. Because of its non-corrosive and non-conductive properties, it is ideal for protecting valuable assets, critical infrastructure, and delicate equipment. Appropriate installation, frequent maintenance, and compliance with local fire safety requirements are required for the system to perform optimally and protect persons and property.




NO. Specifications 4.2Mpa system 5.6Mpa system
1 Capacity 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr 70Ltr,90Ltr,120Ltr
2 Device model QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 QMP70/5.6, QMP90/5.6, QMP120/5.6
3 Filling pressure 4.2Mpa 5.6Mpa
4 Max filling rate 0.95kg/L 1.08kg/L
5 Discharge time ≤10s
6 Power DC24V/1.6A
7 Nitrogen driving device 6.0±1.0Mpa
8 Storage surroundings Temperature:-10~50℃
Relative humidity:≤97%
9 Proportion ≤800m²
10 Volume ≤3600m³

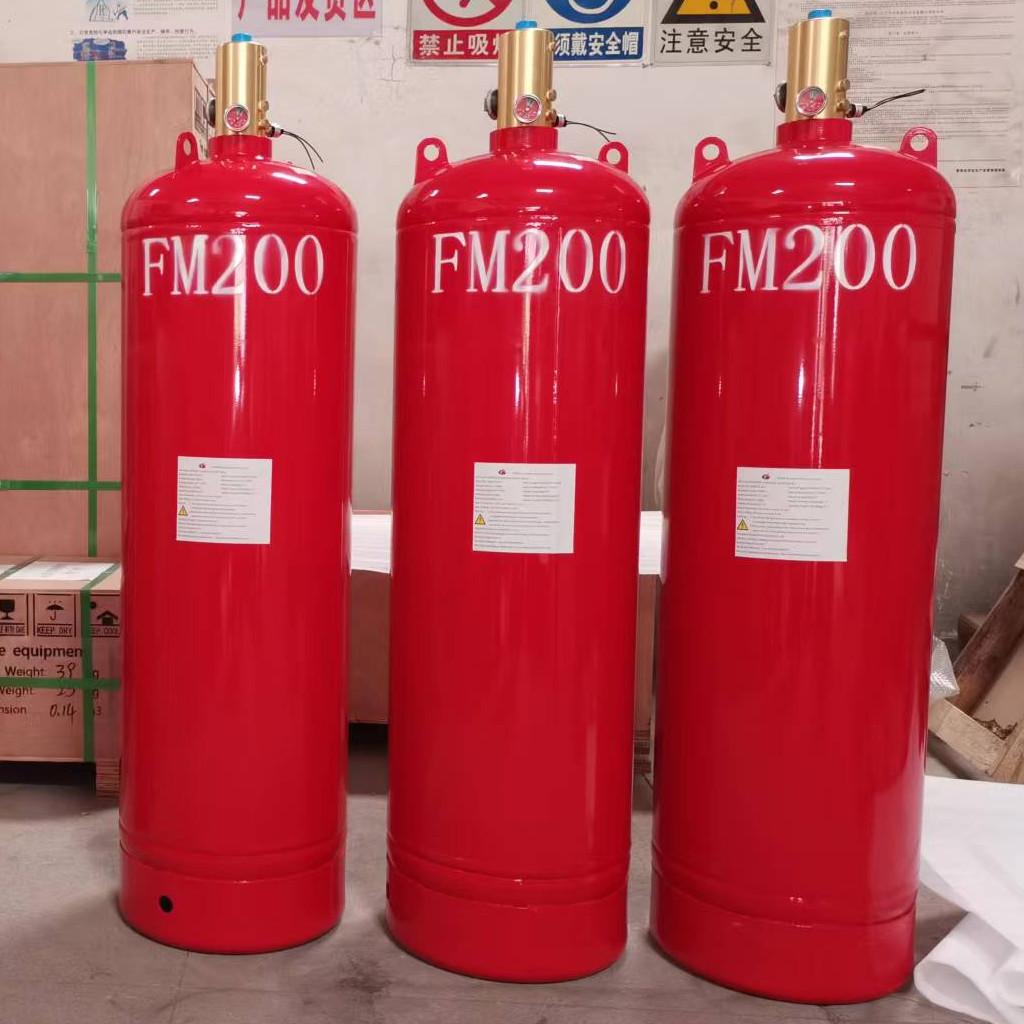

FM200 Fire Suppression System High Pressure Cylinders Detection Control Panel 0


Let's expand on the last two components of the FM200 fire suppression system: the firefighting apparatus and the electrical components.

  1. Firefighting Apparatus: The firefighting equipment, which is in charge of storing and dispersing the FM200 agent, is an essential part of the FM200 fire suppression system. It is made up of a number of related components that operate in concert to provide efficient fire suppression:
  • FM200 Cylinders: Under certain conditions, the FM200 agent is stored in these high-pressure cylinders. The number and size of the cylinders are determined by the dimensions and risks of the protected area.

  • Cylinder Frames: The cylinders are firmly attached to frames to provide stability and support, as well as to prevent movement or damage during operation.

  • Nitrogen-Pressure Driving Devices: Nitrogen gas is used as a driving force in these devices to regulate the discharge of FM200 from the cylinders. They ensure that the agent is discharged uniformly and that the required pressure is maintained.

  • Driving Device Frames: The driving device frames, like cylinder frames, securely support the nitrogen-pressure driving devices during usage, ensuring their steadiness and security.

  • Flexible Hoses: By linking the cylinders and the distribution pipes, these hoses enable the FM200 agent to move from the cylinders to the protected region. They offer flexibility for installation needs while being built to endure high pressure.

    Container Valves: These valves govern how much FM200 is released from the cylinders, enabling a controlled discharge in the case of a fire. They are built to be dependable and guarantee efficient operation.

  • Check valves: These valves regulate the direction of FM200 flow within the pipe system (for liquid and gas flow). While the check valves for gas flow maintain unidirectional flow during system operation, the check valves for liquid flow prevent backflow or leakage.

  • Manifolds: Manifolds are utilized to evenly distribute the FM200 agent throughout the pipe system. They act as a hub for linking various pipes and nozzles, ensuring that the agent is distributed equally throughout the protected area.

  • Safety Valves: Safety valves are installed to release system overpressure, protecting against overpressurization and ensuring the equipment's integrity.

  • Selective Valves: These valves provide the capability to isolate specific sections of the piping network for maintenance or repairs without affecting the entire system's operation.

  • Flanges and Elbows: Flanges and elbows are essential components that connect and join different sections of the piping network. They provide secure connections, flexibility, and ease of installation.

  • Nozzles: Nozzles are strategically placed along the piping network to disperse the FM200 agent effectively. They are designed to provide optimal coverage and ensure the agent reaches the fire source efficiently.

  1. Electrical Components: The FM200 fire suppression system contains a variety of electrical components that are required for monitoring and operation. These components boost system performance and provide critical feedback and control mechanisms. Some of the electrical components are as follows:
  • Control Panels: The FM200 system's central command post is represented by the control panels. They receive signals from the detection equipment, turn on the suppression system, and emit both visual and auditory alarms to warn staff and building occupants.

  • Discharge Indication Lights: When the FM200 system is triggered and the agent is released into the protected area, these lights are put to signal this. They give an unmistakable visual cue that the suppression process is active.

  • Alarm Bells and Sounders with Lights: These visual and auditory alarm systems are used to notify staff and residents of a fire emergency. They produce obnoxious noises and flashing lights to make sure that a fire is rapidly identified.

  • Smoke Detectors and Heat Detectors: These detecting tools are essential for spotting smoke or extreme heat inside the enclosed space. They communicate with the control panel via signals, which activate the FM200 system.

  • Manual Buttons: As an extra method of turning on the FM200 system, manual buttons or switches are offered. Authorized workers can use them to manually start the fire suppression operation.

By merging these electrical components, the system becomes more reliable, it is simpler to detect fires before they spread, and it performs more effectively when a fire arises. They work together with the pipe system and firefighting equipment to form the FM200 fire suppression system, which is complete and efficient.

By integrating firefighting equipment, electrical components, and the previously described piping network, the FM200 fire suppression system provides a trustworthy and effective way to protect critical sites and valuable assets from the devastating impacts of fire.


FM200 Fire Suppression System High Pressure Cylinders Detection Control Panel 1






































The FM200 fire suppression system finds extensive application in a range of environments and is specifically designed to combat various types of fires. Let's expand on the context and use cases mentioned:

  1. Protected Environments:
    The FM200 fire suppression system is commonly installed in the following environments:
  • Computer Rooms: These rooms house critical IT infrastructure, servers, and data storage systems. The FM200 system is ideal for protecting these sensitive electronic components from fire-related risks.

  • Communication Rooms: These rooms house communication equipment, such as routers, switches, and telecommunications systems. The FM200 system ensures the safety and uninterrupted operation of these vital communication networks.

  • Power Distribution Rooms: These rooms contain electrical switchgear, transformers, and other power distribution equipment. The FM200 system helps safeguard against electrical fires that may arise from faulty equipment or electrical malfunctions.

  • Libraries and Archives: These spaces house valuable books, manuscripts, documents, and archives. The FM200 system provides a fire suppression solution that minimizes the risk of fire damage while preserving these irreplaceable assets.

  • Museums: Museums often exhibit valuable artifacts, artwork, and historical objects. The FM200 system helps protect these items from fire-related hazards, offering a balance between fire suppression and preservation needs.

  1. Fire Types:
    The FM200 fire suppression system is effective at extinguishing various types of fires:
  • Electrical Fires: Electrical fires can occur due to short circuits, faulty wiring, or electrical equipment malfunctions. The FM200 system is designed to safely extinguish such fires without conducting electricity, protecting both the equipment and personnel.

  • Liquid Fires: Fires involving flammable liquids, such as oils, fuels, or solvents, can be effectively suppressed by the FM200 system. The agent rapidly absorbs heat, lowering the temperature and suffocating the fire.

  • Solid Fires: The FM200 system can combat fires involving solid materials like paper, wood, textiles, and plastics. By reducing the heat and oxygen levels, it rapidly suppresses the fire and minimizes the risk of reignition.

  • Gas Fires: The FM200 system is capable of suppressing fires involving flammable gases when the gas source can be safely shut off before extinguishing occurs. It effectively interrupts the combustion process, preventing the spread of fire.

The FM200 fire suppression system's versatility and effectiveness across multiple fire types make it a reliable choice for a wide range of applications. Its ability to quickly and efficiently suppress fires in diverse environments helps mitigate potential risks and protect both property and lives.




We use a rigorous packaging technique to guarantee the FM200 Fire Suppression System's maximum protection and safe transportation. The enhanced packaging technique listed below demonstrates our dedication to client pleasure and compliance with safety regulations:


  1. Polyfoam Encasement: Each component of the FM200 Fire Suppression System is precisely wrapped in a layer of polyfoam. This robust, lightweight polymer, which also serves as a shock absorber, protects the components from hits and vibrations during handling and shipping.

  2. Insertion of Wooden Cases: We carefully wrap the components in polyfoam before installing them in robust hardwood cases. These containers are designed to meet the dimensions and forms of the FM200 Fire Suppression System components, resulting in a tight fit that reduces packing movement. The sturdy hardwood structure of the cases ensures excellent protection against outside influences and the integrity of the packaged contents.

  3. Palletization for Enhanced Safety: We choose palletization where necessary, such as to satisfy certain customer requirements or to adhere to safety rules. On a pallet, the wooden containers carrying the FM200 Fire Suppression System's components must be carefully arranged. Utilizing forklifts or pallet jacks to handle, load, and unload items is made easier by palletization. Additionally, it simplifies logistical procedures, especially for larger orders or shipments, ensuring effective management and protection of numerous goods.

  4. Reinforcement and Strapping: We use palletization where it is necessary, such as to meet specific customer requirements or to follow safety regulations. The wooden containers containing the FM200 Fire Suppression System components must be carefully stacked on a pallet. Palletization makes it easier to use forklifts or pallet jacks to handle, load, and unload things. Furthermore, it streamlines logistical procedures, particularly for larger orders or shipments, ensuring excellent management and protection of a large number of commodities.


  5. Clear Labeling and Comprehensive Documentation: Each pallet or shipment is meticulously labeled with legible markings. Important information such as the contents, weight, handling directions, and any necessary labels for hazardous products are included on these labels, all in strict accordance with the standards that apply. We also provide detailed paperwork, such as packing lists, installation manuals, and safety instructions, to ensure proper handling, installation, and use of the FM200 Fire Suppression System.


By carefully following specified packing techniques, we ensure that the FM200 Fire Suppression System components are suitably covered and securely packed, hence minimizing any potential risks during shipment. Our continual effort to delivering top-quality products in outstanding condition underscores our commitment to customer enjoyment and safety.


FM200 Fire Suppression System High Pressure Cylinders Detection Control Panel 2FM200 Fire Suppression System High Pressure Cylinders Detection Control Panel 3FM200 Fire Suppression System High Pressure Cylinders Detection Control Panel 4


Company Introduction


Strategically situated in Guangzhou, a city renowned for its easy access to transit and scenic surroundings, is Guangzhou Xingjin Fire Equipment Co., Ltd. Guangzhou is crucial in promoting communication and trade since it is situated where China's home market meets the international arena. Our business makes the most of this favorable location to position itself as the industry's top manufacturer.


We are dedicated to the study and development of HFC-227ea (FM200) fire suppression systems at Guangzhou Xingjin Fire Equipment Co., Ltd. Program design specialists, adept installation technicians, quality inspectors, and a quick-response after-sales service staff make up our committed team of professionals. In order to satisfy the demands of our clients, we work together to create superior goods and solutions.


Our range of FM200 products has gained widespread popularity and enjoys extensive usage across various sectors. These include:

  • Pipe Network FM200 Fire Suppression System: This system utilizes a network of pipes to distribute FM200 agent throughout the protected area, ensuring comprehensive fire suppression coverage.
  • Cabinet Type FM200 Fire Suppression System: Designed specifically for cabinet enclosures, this system provides targeted fire protection for valuable equipment and materials housed within cabinets.
  • Automatic FM200 Fire Extinguisher (Wall-mounted Style): This ceiling-mounted automatic extinguisher is an efficient and compact solution for fire suppression, particularly suitable for areas with limited space.
  • Fire Detecting Tube Suppression System: This innovative system employs fire detecting tubes that react to heat and automatically discharge the FM200 agent, swiftly suppressing fires.
  • Automatic Fire Suppression Tube: This tube-based system is designed to detect and suppress fires within confined spaces, making it ideal for use in small enclosures or equipment compartments.

Thanks to our unwavering commitment to delivering high-quality products and exceptional customer service, Guangzhou Xingjin Fire Equipment Co., Ltd. has garnered a strong reputation in the Chinese market. We are proud to have earned the trust and satisfaction of our.


FM200 Fire Suppression System High Pressure Cylinders Detection Control Panel 5

FM200 Fire Suppression System High Pressure Cylinders Detection Control Panel 6FM200 Fire Suppression System High Pressure Cylinders Detection Control Panel 7

FM200 Fire Suppression System High Pressure Cylinders Detection Control Panel 8

FM200 Fire Suppression System High Pressure Cylinders Detection Control Panel 9

Why Choose Us

  • 5 years quality guarantee
  • Xingjin is running in a high efficiency management system
  • Advanced equipments & professional engineers to promise all products are quite satisfactory.
  • We provide 8×6 hrs technical support and service.

After-Sale Service

  • We have an efficient sales and after sales team to promise slove all client's question in time.
  • We provide 8×6 hrs technical support and service.



Q1: Are you a manufacturer or a trading company?

A1: We are a manufacturer.


Q2: Is OEM products available?

A2: Yes, we welcome your own design and drawing.


Q3: Where is your factory? Can I visit it?

A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.

Of course yes. We always welcome and wait for your visit.


Q4: How can I get to your factory?

A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
