100L FM200 Cabinet Extinguisher: Rapid Response & Efficient Fire Suppression

Product Details

Place of Origin: China

Brand Name: xingjin


Model Number: GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:
Spraying Time:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Working Pressure:
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Spraying Time:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Working Pressure:
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Product Description


100L FM200 Cabinet Extinguisher Single Cylinder with Two Nozzles



  • Fire safety is a critical concern for every individual and organization. To effectively combat fire hazards, various firefighting technologies have been developed, and one such technology is the 100L FM200 Cabinet Extinguisher. This article aims to provide an insightful analysis of the importance and benefits of this extinguisher, focusing on key aspects that will be of interest to our target audience.

    I. Overview of the 100L FM200 Cabinet Extinguisher

    The 100L FM200 Cabinet Extinguisher is specifically designed to protect enclosed areas or critical equipment from fire-related damage. Utilizing the FM200 gas, it offers rapid fire suppression capabilities while minimizing the risk of collateral damage. This extinguisher is suited for a wide range of applications, including data centers, control rooms, archives, and telecommunication facilities.

    II. Enhanced Fire Suppression Efficiency

    1. Effective Suppression without Residue

    Traditional firefighting systems, such as water-based solutions, often leave behind a significant amount of residue, which can cause additional damage to sensitive equipment. The 100L FM200 Cabinet Extinguisher, however, releases a clean and colorless gas that does not leave any residue upon evaporating. This feature ensures that after a fire incident, minimal cleaning or restoration is required, resulting in reduced downtime and cost savings.

    2. Rapid Fire Suppression

    Time is of the essence during a fire emergency. The FM200 gas discharges in seconds, efficiently suppressing the fire and preventing its further spread. This rapid response time is vital for protecting critical equipment or sensitive materials during a potential fire incident, where even a few seconds can make a significant difference.

    III. Safety Considerations

    1. Environmental Friendliness

    One of the key concerns in fire safety is the environmental impact of extinguishing agents. Unlike some traditional fire suppressants, FM200 is not known to contribute to ozone depletion. Its chemical composition is environmentally friendly, making it a suitable choice for organizations committed to sustainability.

    2. Human Safety

    While fire suppression is crucial, ensuring the safety of individuals in the area is equally vital. The 100L FM200 Cabinet Extinguisher is non-toxic and odorless, ensuring that the occupants are not exposed to harmful substances during deployment. Furthermore, the extinguisher is compatible with occupied spaces, allowing for immediate re-entry after a fire incident.

    IV. Case Studies and Data Illustration

    1. Case Study: Data Center Protection

    A renowned data center incorporated the 100L FM200 Cabinet Extinguishers in their facility, experiencing a significant reduction in fire-related incidents and subsequent downtime. The rapid response time of the extinguisher prevented potential equipment damage, resulting in cost savings and increased customer satisfaction.

    2. Statistical Data: FM200 Effectiveness

    According to a comprehensive study conducted by the Fire Protection Research Foundation, the FM200 gas-based extinguishing systems have an impressive 95% effectiveness rate in suppressing fires. The study analyzed incidents in various industries and highlighted the reliability and efficiency of FM200 technology.

    V. Conclusion

    In conclusion, the 100L FM200 Cabinet Extinguisher is an innovative firefighting solution that surpasses traditional methods in terms of effectiveness, efficiency, and safety. Its ability to rapidly suppress fires while leaving no residue makes it an ideal choice for protecting critical equipment and enclosed spaces. With its environmental friendliness and human safety considerations, the 100L FM200 Cabinet Extinguisher offers a comprehensive and reliable fire protection solution. By investing in this advanced technology, organizations can minimize the risks associated with fire incidents and optimize their safety procedures.


100L FM200 Cabinet Extinguisher: Rapid Response & Efficient Fire Suppression 0

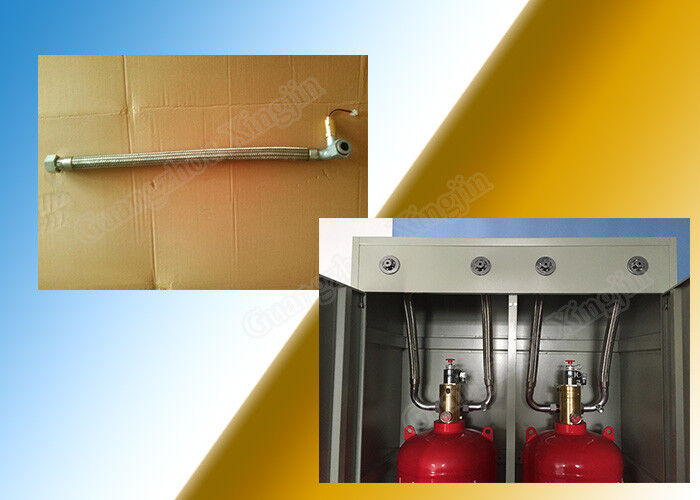

A number of parts that work together to successfully put out fires make up the FM200 Cabinet Type Extinguisher system. An extinguishing mechanism and many electrical parts make up the system, which ensures its dependability. The parts of a full one-set system are shown in the diagram below:


  1. FM200 Agents: FM200 agents are clean gas extinguishing agents stored in a pressurized cylinder and serve as the heart of the fire suppression system. These chemicals are specifically developed to extinguish fires quickly by eliminating heat and interfering with the combustion process.

  2. FM200 Cylinder: The FM200 cylinder is the container in which the FM200 agents are stored. It is built to endure high pressures and has safety safeguards to assure correct extinguishing agent storage and discharge.

  3. Hoop: The hoop is a structural element that holds the FM200 cylinder in place within the cabinet. It contributes to the cylinder's stability and ensures that it is appropriately positioned for effective fire suppression

  4. Cabinet: The cabinet serves as a safe enclosure for the FM200 system's components. It is built to be strong and long-lasting, protecting the system from outside elements and potential damage.

  5. Container Valve: The container valve is an important component since it regulates the discharge of the FM200 agent from the cylinder. When engaged, it is intended to deliver a consistent and regulated discharge of the extinguishing agent.

  6. Solenoid Actuator: The solenoid actuator is an electrical device that is used to open and close the container valve. It receives signals from the fire detection system and initiates the fire suppression process by releasing the FM200 agent.

  7. Flexible Hose (High Pressure Hose): The flexible hose, also known as a high-pressure hose, transports the FM200 agent from the cylinder to the discharge nozzles. It is built to resist the system's high pressures and enables for variable deployment within the protected region.


  8. Nozzle(s): When the FM200 agent is fired, the nozzle(s) are strategically placed within the cabinet to guarantee optimal distribution. They are intended to enable efficient extinguishing agent dispersion, maximizing coverage and fire control effectiveness.


  9. Pressure Switch: The pressure switch is an electrical component that measures the pressure inside the FM200 cylinder. It sends feedback to the control panel, informing it of the system's state and ensuring that the cylinder is appropriately pressured for reliable operation.


These elements work together to create a whole FM200 Cabinet Type Extinguisher system. Together, they make it possible to quickly and effectively put out fires inside closed cabinets, safeguarding priceless tools and materials from fire-related threats.


100L FM200 Cabinet Extinguisher: Rapid Response & Efficient Fire Suppression 1




























For a variety of applications and settings where fires represent a serious risk, the FM200 Cabinet Type Extinguisher system is ideal. It can successfully defend a variety of locations, including:


  1. Clean Rooms: Clean rooms are highly regulated environments used in sectors such as medicines, biotechnology, and electronics manufacture. The FM200 system can protect sensitive equipment and processes in clean rooms while leaving no damage or residue.


  2. Anechoic Chambers: Acoustic testing and research are conducted in anechoic chambers, which are specialized rooms. The FM200 system can protect against fire without interfering with the chamber's distinctive acoustics or delicate equipment.


  3. Emergency Power Facilities: The FM200 system's capacity to suppress flames quickly and effectively, maintaining uninterrupted power supply during emergencies, might benefit locations housing emergency power facilities such as backup generators and electrical infrastructure.


  4. Flammable Liquid Storage Spaces:Fire suppression systems must be reliable in areas where flammable liquids are stored, such as fuel storage facilities or chemical storage rooms. The FM200 system can swiftly extinguish flammable liquid flames, reducing the risk of explosions or spreading fires.


  5. Data Processing Centers: Critical IT equipment and servers are housed in data centers. The FM200 system can safeguard these facilities from flames, reducing downtime and averting data loss or equipment damage.


  6. Telecommunications Facilities: The FM200 system's capacity to quickly suppress flames and protect critical communication infrastructure can assist telecommunications facilities such as data exchange centers and communication hubs.


  7. Process Control Areas:The FM200 system can be used in industrial locations with process control equipment, such as manufacturing facilities or refineries, to offer effective fire suppression while protecting equipment and reducing disturbances to production operations.


  8. Pricey Medical Equipment: The FM200 system may be relied on by medical facilities that house expensive and delicate equipment, such as MRI machines or surgical suites, to quickly suppress fires and protect essential medical equipment.


  9. Industrial Equipment: Production areas with industrial equipment, such as assembly lines or machinery, can benefit from the FM200 system's ability to suppress fires rapidly, minimizing damage and downtime.

  10. Libraries, Museums, and Art Galleries: These cultural institutions house valuable and irreplaceable artifacts. The FM200 system can provide fire protection without causing any residue or damage to the delicate items.

  11. Areas prone to Fires: Locations where fires are more likely to occur, such as engine rooms, cargo holds, rolling mills, printing presses, oil switches, oil-immersed transformers, and production lines involving paint spraying, can greatly benefit from the fast and efficient fire suppression capabilities of the FM200 system.

In conclusion, the FM200 Cabinet Type Extinguisher system is versatile and may be used in a variety of situations and industries to safeguard precious assets, essential equipment, and worker safety. Its capacity to quickly suppress fires makes it an excellent alternative for high-risk areas as well as delicate situations where harm from standard fire suppression methods must be minimized.
100L FM200 Cabinet Extinguisher: Rapid Response & Efficient Fire Suppression 2




































NO. Specifications Parameters
1 Cylinder capacity 40Ltr,70Ltr,90Ltr,100Ltr,
2 Device model GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5
3 Filling pressure 2.5MPa
4 Max filling rate 0.95kg/L
5 Discharge time ≤10s
6 Working temperature 0℃~50℃
7 Max working pressure 4.2MPa
8 Discharge pressure 5.6±0.28MPa
9 Proportion of protected zone ≤500m²
10 Volume of protected zone ≤1600m³
11 Actuation Automatic or manual start

Competitive Advantage:
There are several benefits to using a cabinet fire suppression system, and the following is a brief explanation of some of them:
1. Swift reaction. Because there is no requirement for long-distance pipe transmission, Fm200 gas can be released directly into the protection zone. Its spraying cycle is only 8 seconds long. As a result, when the fire breaks out, it will take less time overall.

2. Simple installation. Installing a cabinet system would be less difficult than installing a pipe network system. After installing the control panels and electrical components, the only thing left to do is link it to one or more cabinet fire extinguishing systems. However, due to the control panel's output current limitation, no more than four of them should be placed in the same room.
3. A lower cost. The cost of a protective zone that just requires a single cylinder would surely be lower than the cost of a pipe network type because no pipes, pipe fittings, or manpower would be required for this component.
