Hanging Hfc-227ea Extinguishing System with Electrical Actuator

Product Details:
Place of Origin: China
Brand Name: xingjin
Payment & Shipping Terms:
Minimum Order Quantity: 1 set system
Price: negotiation
Packaging Details: Plywood case or paper carton
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 1000 sets per month
  • Detail Information
  • Product Description

Detail Information

Actuation: Electrical Or Manual Color: Red
Standard Of Examination: GB25972-2010 Filling Pressure: 1.6Mpa
Agent: Heptafluoropropane Placement: Hanging On The Wall
High Light:

fire safe solutions


automatic fire suppression system

Product Description

Hanging Hfc-227ea Extinguishing System with Electrical Actuator





No. Specification Technical Parameter
1 Filling pressure 1.6Mpa
2 Spraying time ≤8s
3 Working temperature 0~50℃
4 Starting mode Electrical start





    1. Electric insulation, utilization for extinguishing of electrical combustion

    2. No residue and pollution inside protection zone

    3. No damage to ozone layer

    4. No need for employment of monitor staff

    5. Manual or electromagnetic manipulation and mechanical manipulation

    6. Preparation for storage room

    7. Colorless, odorless and clean agent

    8. Do no harm to the environment





    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.


    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.



Competitive Advantage:


    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.

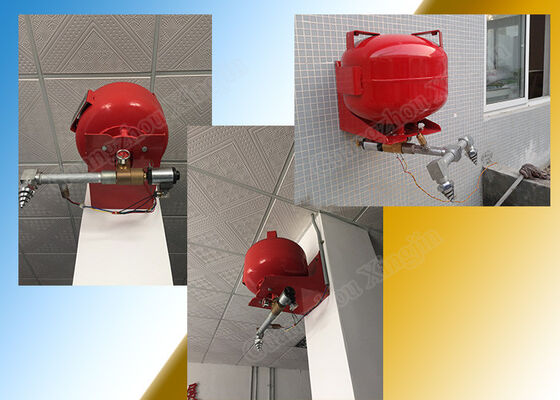

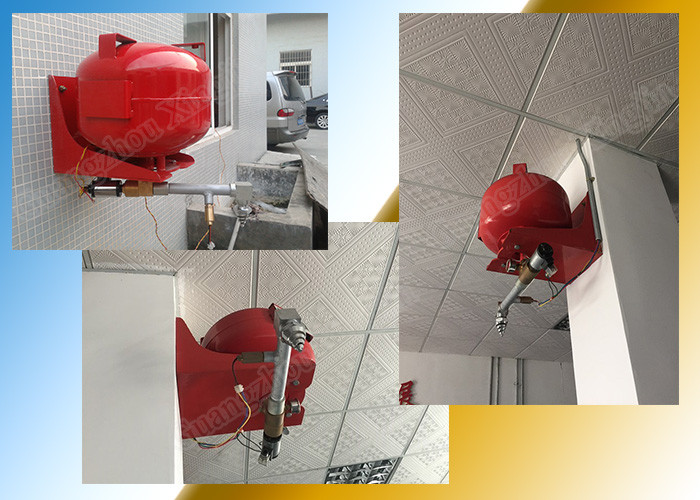

    Different from piped network type of fm200 automatic fire suppression system, it will be simple to install. Because there is no pipeline installation. If your protective zone is really small and there is no more space to put extinguishing device, this type can be under consideration. Because it will be hanged on the ceiling or attached on the wall.





1/ One protected zone can only be equipped with one temperature-based hanging type fm200 fire extinguisher.


2/ Users should follow the routine check schedual that we provide in the manual instruction.





   The hanging type fm200 fire suppression system is divided into two different kinds, they are electromagnetic type and temperature-based type. As people see in their names, these two kinds of systems have something different in their compositions.


   The electromagnetic hanging type fm200 fire extinguishing system is formed by: fm200 cylinder, fm200 fire agent, container valve, solenoid actuator, pressure switch and nozzle.


   The temperature-based hanging type fm200 fire extinguisher consists of: fm200 cylinder, fm200 fire agent, nozzle and temperature sensor.

Hanging Hfc-227ea Extinguishing System with Electrical Actuator 0
