50L Tank HFC 227ea Fire Extinguishing System For Anechoic Chamber

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fire suppression systems

,

automatic fire suppression system

Filling Pressure:
1.6Mpa
Capacity Of Cylinder:
50L
Standard Of Examination:
GB25972-2010
Pattern Of Extinguishing:
Enclosed Flooding
Starting Mode:
Electricity Sensor
Zone Management:
Single
Filling Pressure:
1.6Mpa
Capacity Of Cylinder:
50L
Standard Of Examination:
GB25972-2010
Pattern Of Extinguishing:
Enclosed Flooding
Starting Mode:
Electricity Sensor
Zone Management:
Single
Product Description

50L Tank HFC 227ea Fire Extinguishing System For Anechoic Chamber





Description:



    Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen. It is regconized as the best alternative to the halon series.



    Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.





Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.





Parameter:



NO. Specifications Parameters
1. Capacity 8l, 10l, 16l, 20l, 30l
2. Filling pressure 1.6Mpa
3. Spraying time ≤8s
4. Working temperature 0~50℃
5. Starting mode Electrical start or manual start





Compositions:



    1. Mechanical parts: tank with container valve, nozzle, solenoid valve pressure switch, sounder with light etc.

    2. Electrical parts: smoke detector, heat detector, alarm bell, control panel, discharge indicator, manual button etc.

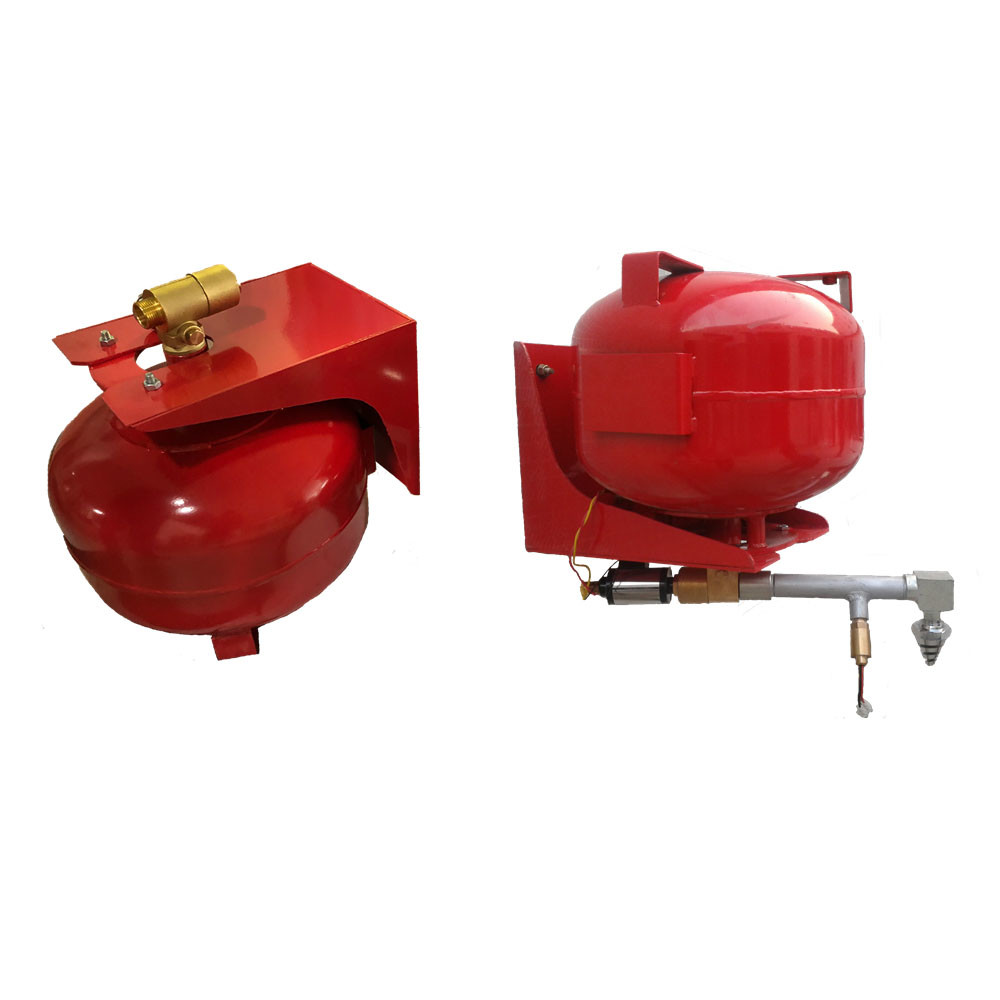

               50L Tank HFC 227ea Fire Extinguishing System For Anechoic Chamber 0

Attention:



    1. Few devices can be connected together in one room.

    2. Ceiling should be fastened and firm

    3. One room cannot use more than one temperature-based hanging type fm200 fire suppression system / extinguisher

    4. The solenoid valve's clip should be taken out after everything, such as the fixture of the system, the decoration of the room, is ready.

    5. The hanging type fm200 fire suppression system is fit for small rooms.

    6. Need careful transportation and installation.
