Heptafluoropropane perfluorohexanone fire extinguishing agent filling equipment

Name: Heptafluoropropane perfluorohexanone fire extinguishing agent filling equipment
Brand: Guangzhou Xingjin Fire Equipment Co.,Ltd.
SKU: XJ-QEO-006
Price: 1,108.00 USD
Availability: InStock

Product Details

Place of Origin: Guangzhou,China

Brand Name: XINGJIN

Certification: CCC,CAC,ROHS

Model Number: XJ-QEO-006

Payment & Shipping Terms

Minimum Order Quantity: 5 set

Price: Pricing based on quantity

Packaging Details: Wooden Box Or Plywood Outer Box With Bubble Bag Or Paper

Delivery Time: 15-20days

Payment Terms: T/T, L/C

Supply Ability: 30000set/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Drug Output Pressure:	0~3.6 MPa	Filling Pressure Alarm:	0~10 MPa (Adjustable, The Alarm Light Will Turn On
Filling Accuracy:	±0.5%	Power Requirements:	AC 220V,50Hz
External Connection Thread:	Threads For Reagent Inlet And Outlet And Nitrogen	Trademark:	Xingjin
Production Capacity:	30000 Sets Per Month	Nitrogen Decompression Range:	0~10 MPa Adjustable (Commonly Used: 4.2 MPa, 5.6 M
Vacuum Degree:	≤ -0.09 MPa	Filling Density:	≤ 1420 Kg/M³
Ambient Temperature:	0~50℃	Equipment Size:	720×800×1280 Mm (Excluding Runner)
Transport Package:	Wooden Box Or Plywood Outer Box With Bubble Bag Or	Origin:	Guangzhou, China

Drug Output Pressure:	0~3.6 MPa
Filling Pressure Alarm:	0~10 MPa (Adjustable, The Alarm Light Will Turn On
Filling Accuracy:	±0.5%
Power Requirements:	AC 220V,50Hz
External Connection Thread:	Threads For Reagent Inlet And Outlet And Nitrogen
Trademark:	Xingjin
Production Capacity:	30000 Sets Per Month
Nitrogen Decompression Range:	0~10 MPa Adjustable (Commonly Used: 4.2 MPa, 5.6 M
Vacuum Degree:	≤ -0.09 MPa
Filling Density:	≤ 1420 Kg/M³
Ambient Temperature:	0~50℃
Equipment Size:	720×800×1280 Mm (Excluding Runner)
Transport Package:	Wooden Box Or Plywood Outer Box With Bubble Bag Or
Origin:	Guangzhou, China

Product Description

Professional Novec 1230 Cylinder Filling Machine for Fire Suppression Systems

Product Description:
The perfluorohexanone fire extinguishing agent filling equipment is a professional device that combines efficiency, safety, and precision, suitable for the maintenance and installation of perfluorohexanone fire extinguishing systems. Equipped with nitrogen pressure reduction, a filling pressure alarm, a vacuum system, and a reserved interface for weight alarm nodes, the equipment supports a variety of gas cylinder sizes, ensuring airtightness and accuracy during the fire extinguishing agent filling process.

Equipment valve body function:

F1 Pressure Reducing Valve	Control the pressure of nitrogen when it enters the system to ensure a stable and safe filling process.
F2 pressure relief valve	Release excess pressure in an emergency to protect equipment and gas cylinders from high pressure damage.
F3 Chemical Storage Valve	Control the flow of fire extinguishing agent from the agent storage tank to the filling cylinder.
F4 Nitrogen Storage Valve	Control the nitrogen gas from the storage tank into the equipment pipeline to provide pressure for filling the fire extinguishing agent.
F5 gas cylinder valve	Used to connect fire extinguishing agent cylinders and control the opening or closing of the cylinder fluid channel.
F6 Vacuum Valve	Used to open or close the extraction of air from the gas cylinder to reduce the pressure inside the cylinder and ensure the purity of the fire extinguishing agent.
F7 valve	Control the flow of perfluorohexanone into the gas cylinder
F8 valve	Controlled access to gas cylinders
F9 valve	Control the passage of nitrogen into the gas cylinder and provide pressure for the gas cylinder.

Heptafluoropropane filling operation:

1 After the cylinder is valved, move it to the filling room. Secure the cylinder and connect the piping between the cylinder and the filling station. Adjust the electric contact pressure gauge alarm and the pressure reducing valve outlet pressure. Open the cylinder container valve and slowly open nitrogen valve F2 to fill with nitrogen, controlling the pressure increase rate to no more than 1 MPa/min, until the pressure reaches the specified maximum operating pressure (see Appendix 3, "Test Pressure Comparison Table" for details). Close the cylinder container valve and move the cylinder to the pressure test room for a cylinder seal test.

2 After the cylinder seal test passes, move it to the filling room's platform scale. Secure the cylinder and connect the piping between the cylinder and the filling station. Open the cylinder container valve and open the pressure relief valve F4 on the filling station to relieve the pressure. After pressure relief is complete, pressurize the filling station vacuum button and simultaneously open vacuum valve F5. Start the vacuum pump to evacuate the cylinder. When the pressure gauge pointer approaches -0.09 MPa and stabilizes, close vacuum valve F5 and the vacuum pump in sequence.

For more detailed operating instructions please contact us!

Vacuum control schedule:

Volume	8L-30L	40L	70L	90L	100L	120L	150L	180L
Minimum vacuum time	30s	40S	50S	56S	60S	65S	78S	93S

Why Choose Us

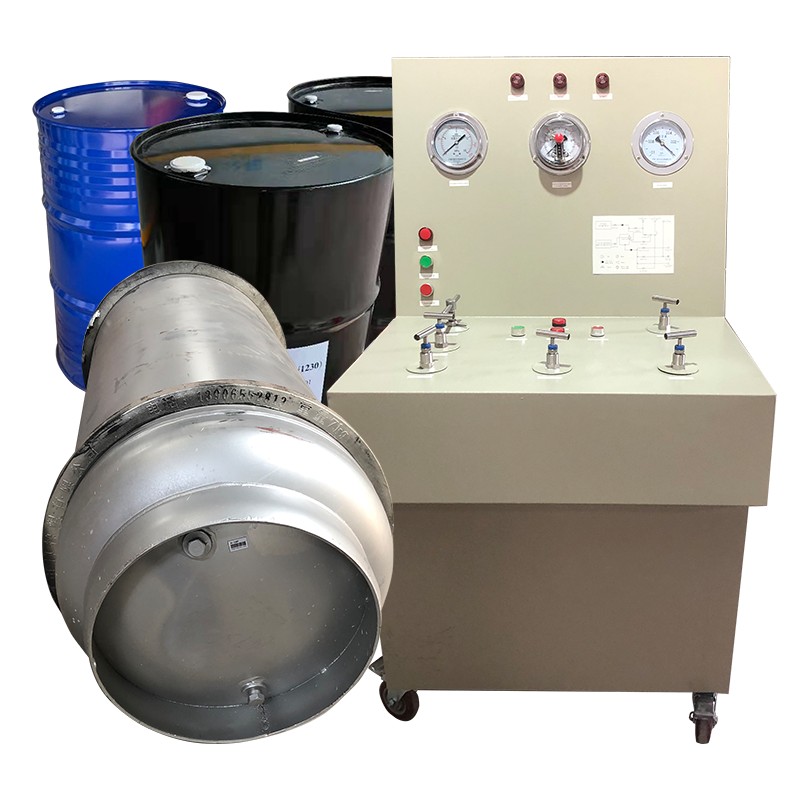

Heptafluoropropane perfluorohexanone fire extinguishing agent filling equipment 1
