Direct type fire-detecting-tube extinguisher

Product Details:
Place of Origin: China
Brand Name: xingjin
Payment & Shipping Terms:
Minimum Order Quantity: 5 set
Price: negotiation
Packaging Details: Plywood case
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, T/T, Western Union,Paypal,Credit card,Debit card
Supply Ability: 500 set per month
  • Detail Information
  • Product Description

Detail Information

Storage Pressure: 2.5Mpa Or 5.7Mpa Capacity Of Agent: 3kg Fm200 Or 6kg Carbon Dioxide
Zone Management: Single Pattern Of Extinguishing: Enclosed Flooding
Agent: Fm200(htc-227ea Or Heptafluoropropane) Or Carbon Dioxide Actuation: Automatic Or Manual
High Light:

fire detection tubing


fire detection system

Product Description

Fire-detecting-tube extinguisher



No. Specification Technical parameter
1 Type Fm200 direct type Carbon dioxide direct type
2 model WZ-Q/T-QZ3-XJ60 WZ-Q/T-EZ6-XJ60
3 Working pressure 2.5Mpa 5.7Mpa
4 Max working pressure 4.2Mpa 12.1Mpa
5 Working temperature 0-50℃ 0-49℃
6 Density of unit volume 0.7kg/m3 2.5kg/m3
7 Max length of detecting tube 20m 25m
8 Quantity of agent 3kg 6kg






    Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.


    Through long detecting tube with gas and pressure inside, it can be an automatic fire extinguisher without any manual manipulation.




    power plants, communications, broadcasting, petrochemical, railway ans so on system.

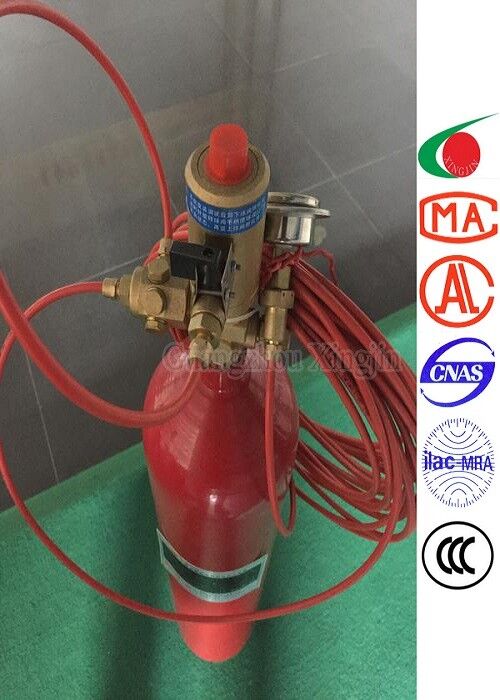

Direct type fire-detecting-tube extinguisher 0






    Fire-detecting-tube extinguisher do not need more accessories to consist of system. The extinguishing device can automatically put out fire alone. So the composition of this one is just extinguishing device, just one part. It is one kind of special system or extinguisher.


    Here attached below is complete composition of whole system,

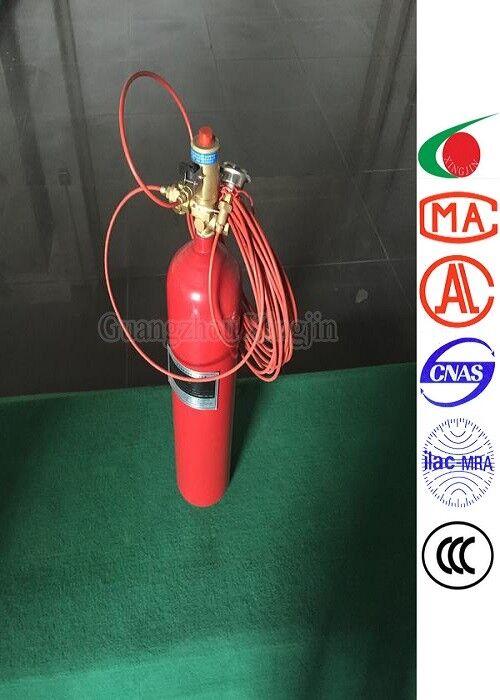

Direct type fire-detecting-tube extinguisher 1



Competitive Advantage:


    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.


    Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.


    It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than eight second. It means all agent will be discharged in so short time. Then it will be flooding overall.


    Fire-detecting-tube extinguisher is easiest to be installed and it will save much space after installation. Meanwhile, of course, it will be cheaper without matching electrical accessories or pipe fittings. It is suitable for little cabinet or IT server and so on such device. Because its soft and slender tube can capture subtle ignition inside delicate equipment.
