Product Details
Place of Origin: China
Brand Name: xingjin
Model Number: QRF40/5.3
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Box case
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 3000 pieces per month
Nominal Diameter: |
40mm |
Working Pressure: |
5.3Mpa |
Equivalent Length: |
5.64m |
Open Valve Pressure: |
＜1.8Mpa |
Nominal Diameter: |
40mm |
Working Pressure: |
5.3Mpa |
Equivalent Length: |
5.64m |
Open Valve Pressure: |
＜1.8Mpa |
Description:

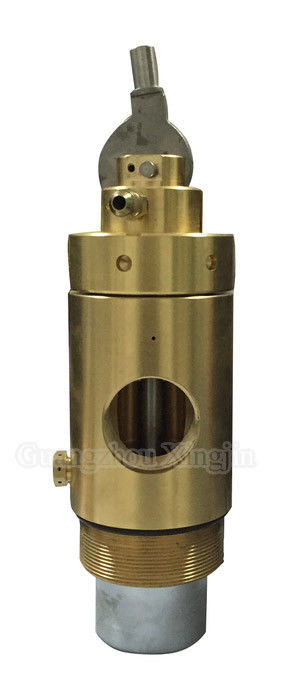

In pipe network system container valve is fixed between storage cylinder and high pressure hose for sealing agent in the cylinder. In case of emergency, you can open the valve in manually. In cabinet system container valve is fixed between storage cylinder and solenoid valve, but there is no manual valve in this system.
Attention:
The safety pin on container valve is used to lock the manual stick, when you start the container valve in manually , you must pull out the manual stick.
The main performance parameters:
| Model |
Nominal diameter (mm) |
Working Pressure (Mpa) |
Equivalent length (include siphon) (m)
|
Open valve pressure (Mpa) |
| QRF32/8 | 32 | 8 | 6 | ＜1.8 |
| QRF40/5.3 | 40 | 5.3 | 5.64 | ＜1.8 |
