China FM200 Fire Suppression System manufacturer

Electromagnetic Hfc227Ea Automatic Fire Fighting System In Suspension

Product Details:
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set system
Price: negotiation
Packaging Details: Plywood case or paper carton
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 1000 sets per month

Detail Information

Actuation: Electrical Or Manual Capacity Of Cylinder: 30L
Standard Of Examination: GB25972-2010 Pattern Of Extinguishing: Enclosed Flooding
Agent: Fm200 Dimension(mm): 692*400*455
High Light:

fire safe solutions

,

automatic fire suppression system

Product Description

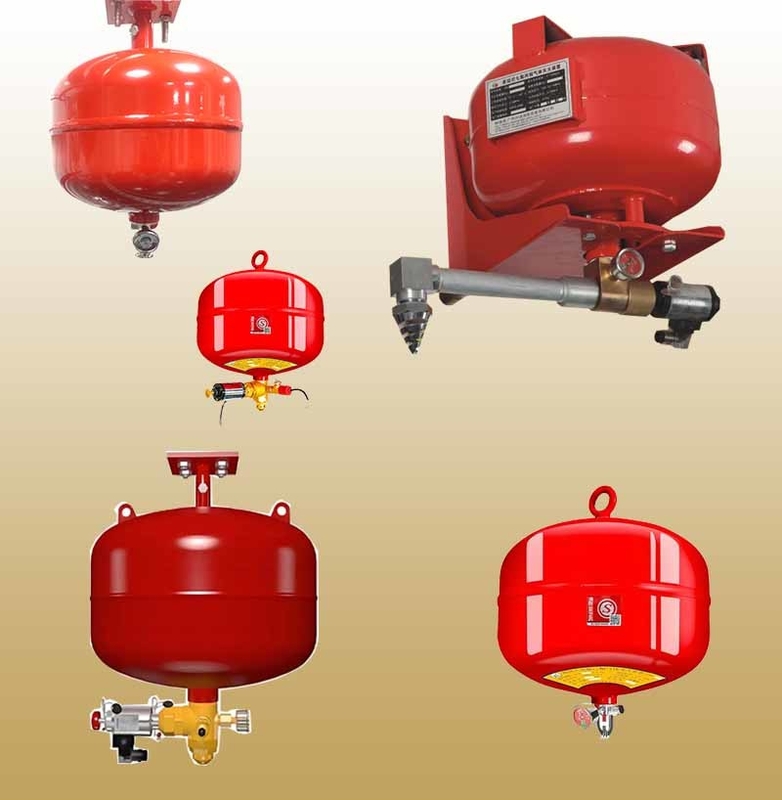

Electromagnetic Hfc227Ea Automatic Fire Fighting System In Suspension





Description:



    1. Direct target to expensive machine or delicate device

    2. Space confirmation of placement for cylinder group

    3. Manual or electromagnetic manipulation and mechanical manipulation

    4. Electric insulation, utilization for extinguishing of electrical combustion

    5. No need for employment of monitor staff

    6. Accurate control of protection zone





Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.





Parameter:



No. Specification Technical Parameter
1 Filling pressure 1.6Mpa
2 Spraying time ≤8s
3 Working temperature 0~50℃
4 Starting mode Electrical start or manual start





Competitive Advantage:



    1. Small but effective

    2. Extremely simple installation

    3. Little space for placement of it

    4. Hanging on the ceiling or wall

    5. Low cost for little protective zone





Working principle:



    Actually, the activating mode is defferent because of the two types' different components.



    The electromagnetic type: a fire happens in the room, quickly smoke detectors catch the somke and send signal to the control panel. Receiving the signal, the control panel makes an alarm bell ring to tell people quickly move out the room or the building. If few seconds later, the control panel doesn't receive the signal from a heat detector, users should go for a check if there really is a fire. If the control panel gets the signal from a heat detector, the fire suppression system will be quick activated after a few seconds delay. When the fire suppression system starts working, the indicated discharge light will light up.



   The temperature-based type: the temperature-based type fm200 fire suppression system activates itself by the high tmperature, so it is no need to be equipment with any electrical elements. When the fire happens, only the temperature reaches to the activating temperature that the temperature sensor will break itself and let the fire agent get out.

Electromagnetic Hfc227Ea Automatic Fire Fighting System In Suspension 0
