Product Details
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: 8L/16L/20L/30L
Payment & Shipping Terms
Minimum Order Quantity: 2 set system
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 15-20 working days after payment or receipt of L/C
Payment Terms: T/T, L/C
Supply Ability: 30000 set system
Actuation: |
Electrical |
Capacity Of Cylinder: |
40L |
Pattern Of Extinguishing: |
Enclosed Flooding |
Spraying Time: |
≤8s |
Zone Management: |
One Zone |
Standard Of Examination: |
GB25972-2010 |
Actuation: |
Electrical |
Capacity Of Cylinder: |
40L |
Pattern Of Extinguishing: |
Enclosed Flooding |
Spraying Time: |
≤8s |
Zone Management: |
One Zone |
Standard Of Examination: |
GB25972-2010 |

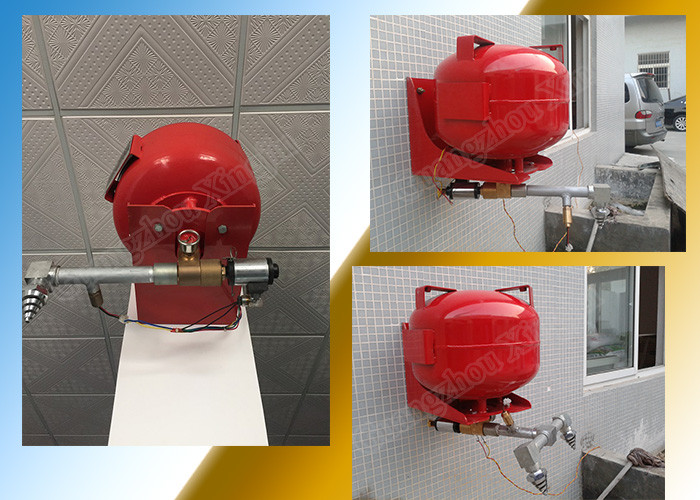

Automatic HFC 227ea Fire Extinguishing System Of 40L Suspension Tank
Parameter:
No. | Specification | Technical Parameter |
1 | Filling pressure | 1.6Mpa |
2 | Spraying time | ≤8s |
3 | Working temperature | 0~50℃ |
4 | Starting mode | Electrical start |
Description:
1. Electric insulation, utilization for extinguishing of electrical combustion
2. No residue and pollution inside protection zone
3. No damage to ozone layer
4. Totally automatic system
5. Accurate control of protection zone
6. No need for employment of monitor staff
Applications:
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.
Compositions:
Electrical Fm200 Firefighting System Of 40l Suspension Tank is mainly composed by two parts. Extinguishing devices and electrical accessories.
Extinguishing devices are such things, like cabinet to store extinguishing device, cylinder to fill and store fm200 and flexible hose ans solenoid actuator and so on.
Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.
These integrated two parts will be efficient to detect and supervise and alarm and extinguish fire automatically.
Here attached below is complete composition of whole system,
Competitive Advantage:
1. Small but effective
2. Extremely simple installation
3. Little space for placement of it
4. Hanging on the ceiling or wall
5. Low cost for little protective zone
Attention points:
1. One room is better just equipped with one temperature-based hanging type fm200 fire extinguisher in case that the disequilibrium of temperature leads to the consiquence that the temperature-based fm200 fire extinguisher cannot activate in the same time.
2. For the electromagnetic type, only when all the things are being prepared well, then the clip of the solenoid valve can be taken out. The clip here can protect the fire suppression system from wrong opening because of carelessness.
