Mechanical HFC 227ea Fire Extinguishing System Fm 200 fire suppression system

Product Details:
Place of Origin: China
Brand Name: xingjin
Payment & Shipping Terms:
Minimum Order Quantity: 1 set system
Price: negotiation
Packaging Details: Plywood case or paper carton
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 1000 sets per month
  • Detail Information
  • Product Description

Detail Information

Zone Management: One Zone Standard Of Examination: GB25972-2010
Pattern Of Extinguishing: Enclosed Flooding Capacity Of Cylinder: 16L
Dimension(mm): 670*314*410 Working Temperature: 0~50℃
High Light:

fire suppression systems


automatic fire suppression system

Product Description

Mechanical HFC 227ea Fire Extinguishing System Fm 200 System





No. Specification Technical Parameter
1 Filling pressure 1.6Mpa
2 Spraying time ≤8s
3 Working temperature 0~50℃
4 Starting mode Electrical start




    1. Manual or electromagnetic manipulation and mechanical manipulation

    2. Agent quantity for biggest zone is enough to protect all zones through selector valves

    3. Direct target to expensive machine or delicate device

    4. Short time discharge of extinguishing agent

    5. Preparation for storage room

    6. Space confirmation of placement for cylinder group




    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.


    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.


Competitive Advantage:


    It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.

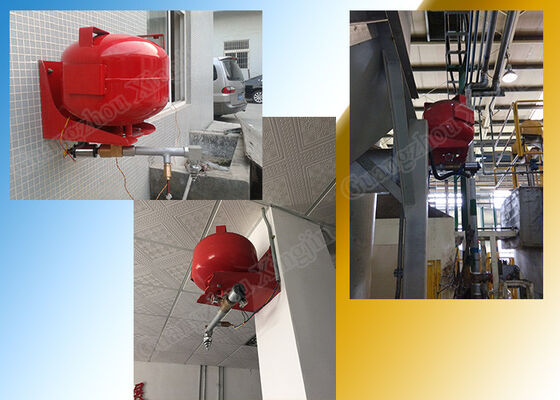

    Different from piped network type of fm200 automatic fire suppression system, it will be simple to install. Because there is no pipeline installation. If your protective zone is really small and there is no more space to put extinguishing device, this type can be under consideration. Because it will be hanged on the ceiling or attached on the wall.




  1. Few devices can be connected together in one room.

  2. Ceiling should be fastened and firm

  3. One protected zone should only be equipped with one temperature-based hanging type fm200 fire


  4. Users should better follow the routine check schedual that we provide in the manual instruction



Working principles:


The electromagnetic type:


A fire happens → smoke / heat detector catches the differences and send signal to the control panel → control panel receives the signal and activates the alarm bell to tell people quickly escape from the building → after receiving both signal from smoke and heat detector and a few seconds delay, the control panel activates the fire extinguishing system.


The temperature-based type:


A fire happens → the inside temperature is high enough to break the temperature sensor → the fire agent comes out and sprays from the nozzle.
