|Place of Origin:||China|
|Model Number:||GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5,|
Payment & Shipping Terms:
|Minimum Order Quantity:||10set system|
|Packaging Details:||Plywood case,Paper carton|
|Delivery Time:||10-15 working days after payment or receipt of L/C|
|Payment Terms:||L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card|
|Supply Ability:||30000 set per month|
|Weight:||50kg||Capacity Of Cylinder:||70L|
|Gross Volume:||408L||Pattern Of Extinguishing:||Enclosed Flooding|
|Standard Of Examination:||GB25972-2010||Dimension(mm):||550*450*1650|
fm 200 fire extinguisher,
hfc227ea fire suppression systems
Custom Colorless Hfc 227 Fire Extinguishing System of 70L Cabinet
|6||Max working pressure||4.2Mpa|
Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.
Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.

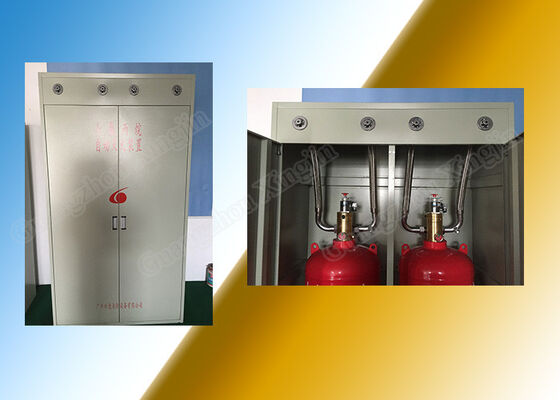

HFC 227 Fire Extinguishing System of 70L cabinet is mainly composed by two parts. Extinguishing devices and electrical accessories.
Extinguishing devices are such things, like cabinet to store extinguishing device, cylinder to fill and store fm200 and flexible hose and solenoid actuator and so on.
Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.
These integrated two parts will be efficient to detect and supervise and alarm and extinguish fire automatically.
Here attached below is complete composition of whole system,
1. Corlorless, tasteless and non-corrosive
2. Easy installation and convenient transportation
3. Quick response of the system
4. Lower cost in some circumstance
