15MPa 80L 90L Inergen Gas Fire Suppression System Reasonable Good Price High Quality

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMH15/80, QMH15/90

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 10-15 working days

Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 300 sets per month

Get Best Price
Product Details
High Light:

80L Inergen Gas Fire Suppression System

,

15MPa Inergen Gas Fire Suppression System

Cylinder Volume:
80L, 90L
Capacity:
16.89kg, 19kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
IG541(52% Nitrogen, 40% Argon, 8% Carbon Dioxide)
Working Pressure:
15MPa
Color:
Red
Cylinder Volume:
80L, 90L
Capacity:
16.89kg, 19kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
IG541(52% Nitrogen, 40% Argon, 8% Carbon Dioxide)
Working Pressure:
15MPa
Color:
Red
Product Description

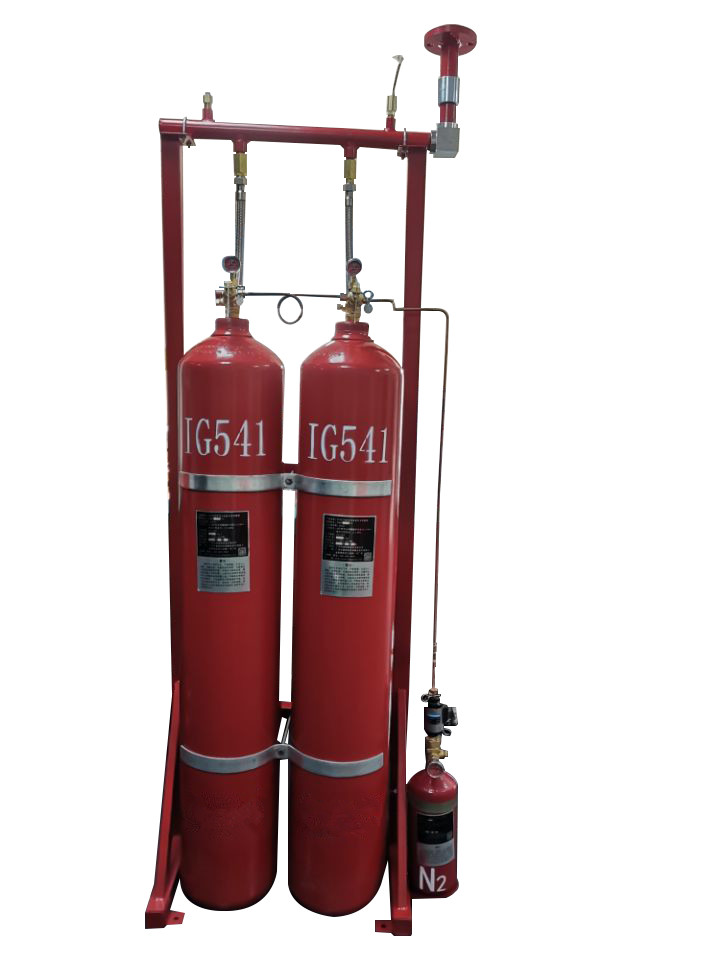

Inergen gas fire suppression system



Description



    Inergen gas fire suppression system



IG541 mixture gas (52% nitrogen, 40% argon, 8% carbon dioxide) is a kind of colorless and tasteless and nontoxic and non-conducting, pure “green” gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.



Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and it also saves much money for employment to supervise the protective area.



Management of Multiple zones is also in the safe control of the whole system. We can use one system to protect multiple zones through distributing valves. It can make the whole system alternative aiming at different protective zone. Agent can be discharged into where the fire happens. It will be very efficient to put out fire in short time. One thing that need to mention, is that a little room should be prepare to be as storage space for the whole system.




Parameters


No. Specification Technical Parameter
1 Working Pressure 15Mpa
2 Device Model QMH15/80 QMH15/90
3 Capacity 80Ltr 90Ltr
4 Filling Capacity of Gas 16.89kg 19kg
5 Outside Diameter of Cylinder Φ279mm Φ325mm
6 Height of Cylinder 1578+73mm 1345+60mm
7 Spraying Time ≤120s
8 Filling Rate 0.211kg/L
9 Power DC24V/1.6A
10 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
11 Condition of Reserving Room for Container temperature: 0~50℃
12 Max Working Pressure 17.2Mpa
13 Min Working Pressure 13.6Mpa





Application

Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.


Packages



We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.


15MPa 80L 90L Inergen Gas Fire Suppression System Reasonable Good Price High Quality 0


Advantages

In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.



Another one is that IG541 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.



It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.



It can let multiple zones are protectively in the control of one system. Then it will save much money for big and multiple zones.




Mimic Diagram

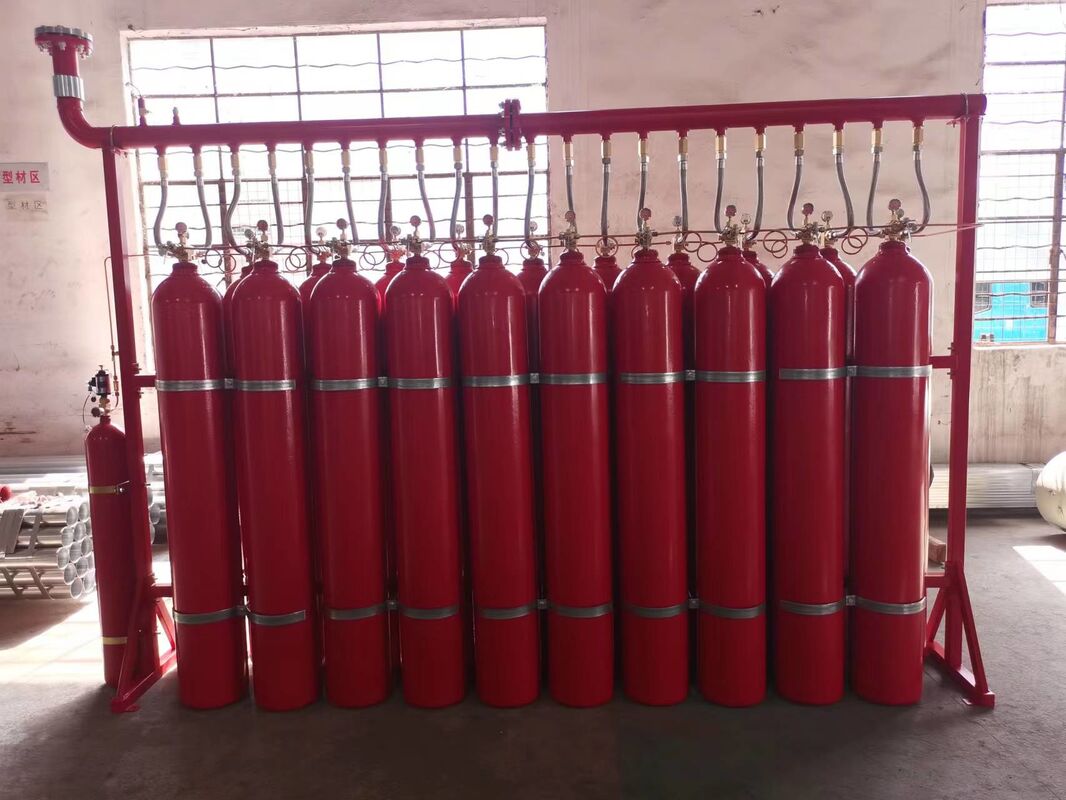

Multiple cylinders for one zone



15MPa 80L 90L Inergen Gas Fire Suppression System Reasonable Good Price High Quality 1





Multiple cylinders for multiple zones



15MPa 80L 90L Inergen Gas Fire Suppression System Reasonable Good Price High Quality 2
