Hfc-227ea Fire Suppression System With Full Agent Reasonable Good Price High Quality

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

Hfc-227ea Fire Suppression System

,

100L Hfc-227ea Fire Suppression System

,

66.5kg fire extinguishing system

Power:
DC24V/1.6A
Type:
Cabinet Automatic Fire Suppression System
Actuation:
Automatic, Manual, Mechanical Emergency Manual
Working Pressure:
2.5Mpa
Discharge Time:
≤10s
Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Agent:
HFC-227ea (FM200)
Power:
DC24V/1.6A
Type:
Cabinet Automatic Fire Suppression System
Actuation:
Automatic, Manual, Mechanical Emergency Manual
Working Pressure:
2.5Mpa
Discharge Time:
≤10s
Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Agent:
HFC-227ea (FM200)
Product Description

Hot Sale Hfc-227ea Fire Suppression System with Full Agent




Description:

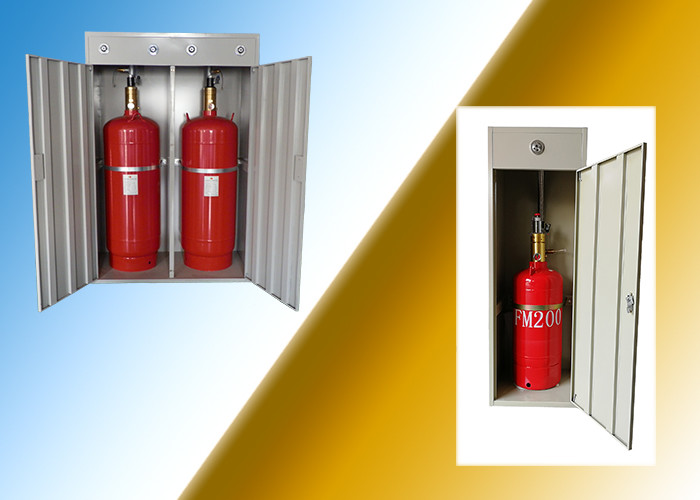

Cabinet HFC-227ea fire suppression system is a preset and independent fire extinguishing system, without pipe network distribution. It is directly set at the protected area to put out the fire. Its features are easy installation, convenient to move, fast to action and beautiful appearance. The system is suitable for small fire protection areas, and for buildings which have been built but needs an additional fire extinguishing system.



Parameter:


NO.SpecificationsParameters
1Cylinder capacity40Ltr,70Ltr,90Ltr,100Ltr,
120Ltr,150Ltr,180Ltr
2Device modelGQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5
3Filling pressure2.5Mpa
4Max filling rate0.95kg/L
5Discharge time≤10s
6Working temperature0℃~50℃
7Max working pressure4.2Mpa
8Discharge pressure5.6±0.28Mpa
9Proportion of protected zone≤500m²
10Volume of protected zone≤1600m³
11ActuationAutomatic or manual start


Cabinet Size


SpecificationSize(mm)Volume(cbm)Net weight (kg)
GQQ40/2.5500×450×14500.32633
GQQ70/2.5500×450×14500.32643-50
GQQ90/2.5500×450×16500.37143-50(46)
GQQ100/2.5500×450×16500.37155-64(54)
GQQ120/2.5550×550×19000.57560-73(60)
GQQ150/2.5550×550×19000.57580
GQQ180/2.5600×550×21500.7180



Applications:

    Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.


Compositions:


Cabinet type HFC-227ea fire suppression system assemblys easily. A complete system is formed by two parts, the extinguishing device and eletrical elements. The extinguishing device is composed by the following:
1/ Fm200 cylinder
2/ Container valve
3/ Flexible hose
4/ Solenoid actuator
5/ Nozzle
6/ Cabinet

                Hfc-227ea Fire Suppression System With Full Agent Reasonable Good Price High Quality 0


Attentions:

    There are some points users need to notice when they are using this system.

1/ The volume of the protected zone shouldn't be bigger than 1600 cubic metres; the proportion of the protected zone should be smaller than 500 square metres.

2/ If there some problems occur, users shouldn't fix or touch it themselves. The best solution is to call and tell us the problems, and wait for our professionals.

3/ Users better follow the routine check schedual that we provide.

4/ unless everthing is at its position, the cover of the small ball valve can be unclosed.
