Xingjin IG55 Fire Suppression System Protects Environment And Efficient Fire Extinguishing

Product Details:
Place of Origin: China
Brand Name: Xingjin
Model Number: QMDY30/80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 300 sets per month
  • Detail Information
  • Product Description

Detail Information

Cylinder Volume: 80L Pattern Of Extinguishing: Enclosed Flooding
Agent: IG55(50% Nitrogen, 50% Argon ) Working Pressure: 30MPa
Color: Red Max. Working Pressure: 36.6 MPa
System Start Mode: Electrical Automatic, Electrical Manual, Mechanical Emergency Start
High Light:

IG55 Fire Suppression System


50% Argon Fire Suppression System


30MPa Inert Gas Fire Suppression System

Product Description

IG55 fire suppression system

Inert Gas IG55 Fire Suppression System Cylinder Volume 80L Enclosed Flooding




IG55 adopts 50% nitrogen and 50% argon to form fire extinguishing agent, which fully integrates the design concept of new era fire extinguishing system, making the product successfully equipped with the function of protecting environment and efficient fire extinguishing. It has the characteristics of protecting the earth's ecological environment, safety and health, no damage caused by fire extinguishing agent, and enduring fire-extinguishing effect.


The fire-extinguishing principle of IG55 gas is mainly to reduce the oxygen concentration (below 15%) to achieve the fire-extinguishing without supporting combustion. The extinguishing mechanism is to dilute the oxygen in the burning area to achieve the purpose of smothering the fire. The ratio of nitrogen to air is 0.97, which enables the fire extinguishing agent to maintain a constant fire-extinguishing concentration after being released in the protection zone, thus ensuring the fire-extinguishing effect and effectively preventing reignition.





No. Specification Technical Parameter
1 Working Pressure 30Mpa
2 Device Model QMDY30/80
3 Capacity 80Ltr
4 Outside Diameter of Cylinder Φ267mm
5 Height of Cylinder 1770±10mm
6 Spraying Time ≤120s
7 Power DC24V/1.6A
8 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
9 Condition of Reserving Room for Container temperature: 0~50℃
10 Max Working Pressure 36.6MPa
11 Min Working Pressure 27MPa







Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.





We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

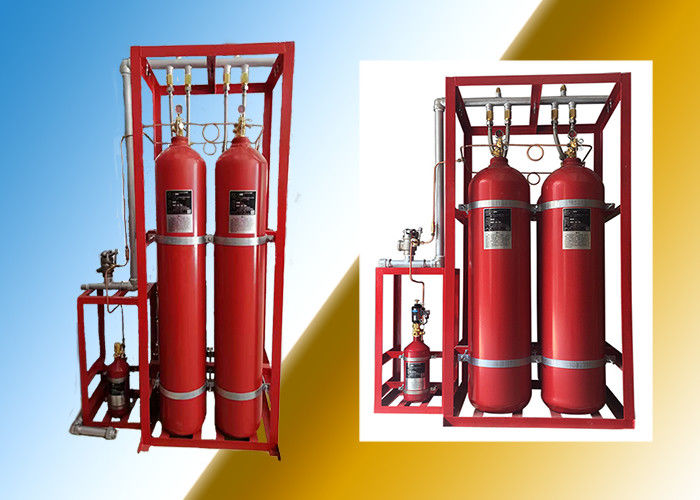

Xingjin IG55 Fire Suppression System Protects Environment And Efficient Fire Extinguishing 0





1. Compared with the traditional 15MPa system, the 30MPa system saves 25%-50% of the quantity of extinguisher cylinders.

2. It effectively reduces the floor area between the cylinders and improves the overall use value and utilization rate of the building.

3. Constant low pressure release of 6MPa reduces the cost of piping and components for the whole system.

4. The constant release pressure of 6MPa provides a more durable and effective pressure, with a transmission distance of up to 200 meters.

5. Whole system release by low pressure, it will be less impact on site personnel, equipment and building structure, and it will be more safety.

6. The external constant pressure-relief device only bears the pressure when the system is discharged, which is convenient for disassembly and maintenance, and effectively reduces the system failure rate.

7. After discharging, the system can be put into operation quickly with simple disassembly and secondary filling witn agent without replacing any parts.

8. It reduces the area of opening hole of gas pressure relief port, directly reduces the input cost of safety pressure relief device, and installs and arranges safety buckle become more simply.

9. IG55 fire extinguishing system can be widely used in important places that need rapid response to fire. There are workers, sudden fires and sensitive to chemical reactions on the site of the protection zone, the fire extinguishing system can effectively protect the safety of personnel and property.





Mimic Diagram



Multiple cylinders for multiple zones


Xingjin IG55 Fire Suppression System Protects Environment And Efficient Fire Extinguishing 1



Multiple cylinders for one zone


Xingjin IG55 Fire Suppression System Protects Environment And Efficient Fire Extinguishing 2


Company Introduction:


Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.



Xingjin IG55 Fire Suppression System Protects Environment And Efficient Fire Extinguishing 3


  • Q: What is the brand name of this product?
    A: The brand name of this product is Guangzhou Xingjin Fire Equipment Co.,Ltd.
  • Q: What is the model number of this product?
    A: The model number of this product is fm200 extinguishant.
  • Q: Where is this product originally made?
    A: This product is originally made in Guangzhou, Guangdong, China.
  • Q: What type of fire can this product suppress?
    A: This product can suppress Class A, B, and C fires.
  • Q: How does this product work?
    A: This product works by releasing a gas called FM200, which removes heat from the fire and breaks down the chemical reaction of the fire.
