Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Xingjin |
| Certification: | CAL,CMA,CNAS,ILAC-MRA,CCC |
| Model Number: | QMDY20/140, QMDY30/140 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Plywood outer box with bubble bag or paper |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, Paypal, Credit card |
| Supply Ability: | 3000 sets per month |
|
Detail Information |
|||
| Cylinder Volume: | 90L | Pattern Of Extinguishing: | Enclosed Flooding |
|---|---|---|---|
| Agent: | IG55(50% Nitrogen, 50% Argon ) | Working Pressure: | 20MPa, 30MPa |
| Color: | Red | Max. Working Pressure: | 23.2MPa, 36.6 MPa |
| Min. Working Pressure: | 18MPa, 27MPa | System Start Mode: | Electrical Automatic, Electrical Manual, Mechanical Emergency Start |
| High Light: | argonite fire extinguishing system 140l,argonite gas suppression system 140l,argonite gas suppression system IG55 |
||
Product Description

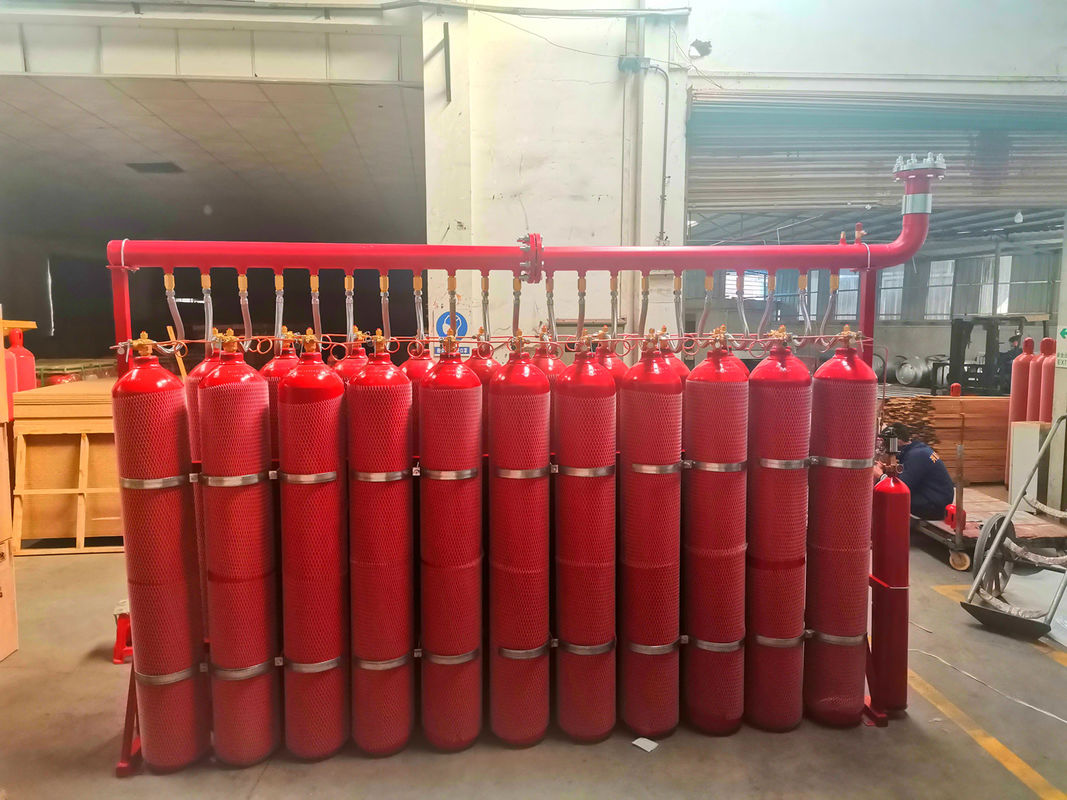

90L argonite IG55 fire suppression system
IG55 Argonite Fire Suppression System
Description
The extinguishing principle of inert gases focuses on reducing oxygen concentration in the affected zone.
When a fire starts, IG55 rapidly penetrates the area and reduces the oxygen level percentage from the usual level of 21% to a limit that fluctuates between 13% and 11%, the amount sufficient for combustion to stop and to be safe for the people in the room. Thanks to the stratification of the gases (due to their density, argon rises and nitrogen falls) protection is achieved throughout the space, regardless of how high the ceiling is.
During its discharge, there is excellent visibility and, since it leaves no residue, there are no destructive effects to the equipment, which will continue functioning normally and, of course, there will be nothing to clean up.
Parameters
| No. | Specification | Technical Parameter | |
| 1 | Working Pressure | 20MPa | 30MPa |
| 2 | Device Model | QMDY 20/140 | QMDY 30/140 |
| 3 | Cylinder Volume | 140Ltr | 140Ltr |
| 4 | Filling Capacity of Gas | 40.1 kg | 56.3 kg |
| 5 | Outside Diameter of Cylinder | Φ356mm | Φ356mm |
| 6 | Height of Cylinder | 1825mm±20mm | 1825mm±20mm |
| 7 | Spraying Time | ≤120s | |
| 8 | Power | DC24V/1.6A | |
| 9 | Nitrogen Pressure of Driving Device | 6.0±1.0MPa(20℃) | |
| 10 | Condition of Reserving Room for Container | temperature: 0~50℃ | |
| 11 | Max. working pressure | 23.2 MPa | 36.6 MPa |
| 12 | Min. working pressure | 18 MPa | 27 MPa |
Application
Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.
Packages
Advantages
1. Compared with the traditional 15MPa system, the 30MPa system saves 25%-50% of the quantity of extinguisher cylinders.
2. It effectively reduces the floor area between the cylinders and improves the overall use value and utilization rate of the building.
3. Constant low pressure release of 6MPa reduces the cost of piping and components for the whole system.
4. The constant release pressure of 6MPa provides a more durable and effective pressure, with a transmission distance of up to 200 meters.
5. Whole system release by low pressure, it will be less impact on site personnel, equipment and building structure, and it will be more safety.
6. The external constant pressure-relief device only bears the pressure when the system is discharged, which is convenient for disassembly and maintenance, and effectively reduces the system failure rate.
7. After discharging, the system can be put into operation quickly with simple disassembly and secondary filling witn agent without replacing any parts.
8. It reduces the area of opening hole of gas pressure relief port, directly reduces the input cost of safety pressure relief device, and installs and arranges safety buckle become more simply.
9. IG55 fire extinguishing system can be widely used in important places that need rapid response to fire. There are workers, sudden fires and sensitive to chemical reactions on the site of the protection zone, the fire extinguishing system can effectively protect the safety of personnel and property.
Mimic Diagram
Multiple cylinders for multiple zones
Multiple cylinders for one zone
