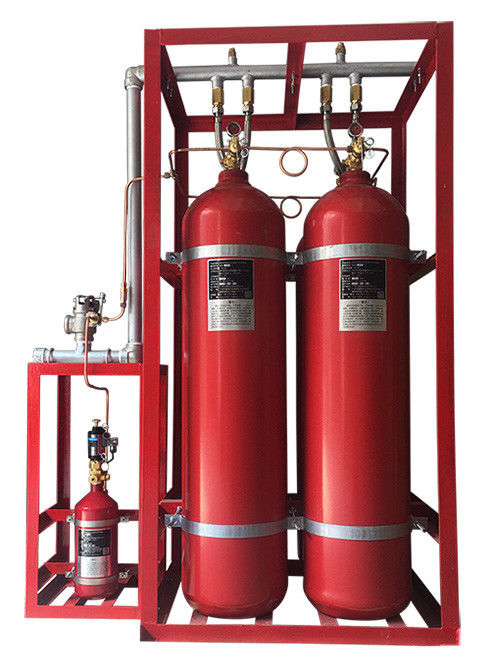

14.25kg IG100 Fire Suppression System Cylinder Volume CCC 15MPa

Product Details:
Place of Origin: China
Brand Name: Xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMH15/80, QMH15/90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
  • Detail Information
  • Product Description

Detail Information

Cylinder Volume: 80L, 90L Capacity: 14.25kg, 16.04kg
Pattern Of Extinguishing: Enclosed Flooding Agent: IG100 (100% Pressurized Nitrogen)
Working Prussure: 15MPa Color: Red
High Light:

15MPa Fire Suppression System Cylinder

,

IG100 Fire Suppression System

,

80Ltr Fire Suppression System Cylinder

Product Description

IG100 Fire Suppression System

14.25kg IG100 Fire Suppression System Cylinder Volume CCC 15MPa



Description of Fire Suppression System

IG100 uses 100% pressurized nitrogen, which accounts for 78% of the atmosphere, as the extinguishing agent. Its ozone depletion potential (ODP) and global warming potential (GWP) are zero. The atmospheric retention time is zero without any adverse effects on the environment. It fully integrates the design concept of the fire-extinguishing system in the new era, so that the product successfully has the function of environmental protection and efficient fire-fighting.



IG100 characteristics: protecting the ecological environment of the earth, safety and hygiene do not interfere with vision, no stain caused by extinguishing agent, durable of fire fighting effect. Nitrogen can be separated from the air and produced from a wide range of sources at a cheap charge.





Parameters of Fire Suppression System



No. Specification Technical Parameter
1 Working Pressure 15Mpa
2 Device Model QMD15/80 QMD15/90
3 Capacity 80Ltr 90Ltr
4 Filling Capacity of Gas 14.25kg 16.04kg
5 Outside Diameter of Cylinder Φ279mm Φ325mm
6 Height of Cylinder 1578+73mm 1345+60mm
7 Spraying Time ≤10s
8 Max Filling Rate 0.178kg/L
9 Power DC24V/1.6A
10 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20)
11 Condition of Reserving Room for Container temperature: 0~50
12 Max Working Pressure 17.2Mpa
13 Min Working Pressure 13.6Mpa







Application of Fire Suppression System



Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.





Packages


We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.


                              14.25kg IG100 Fire Suppression System Cylinder Volume CCC 15MPa 0





Advantages



  • Compared with the traditional 15MPa system, the number of fire extinguishing agent cylinders can be saved by 25%-50%.
  • The building area between cylinders is effectively reduced, and the overall occupation and utilization rate of the building are improved.
  • Constant 6MPa low pressure release can reduce the cost of pipeline and pipe fittings.
  • The constant release pressure of 6MPa provides more lasting and effective pressure, and the transmission distance can reach 200 meters.
  • The release of the whole system with low pressure can only have a less impact on personnel on sites, equipment and building structure and it is more safety.
  • The external constant pressure reliever can only bear the pressure when the system is spraying, which is convenient for dis-assembly and maintenance and effectively reduces the failure rate of the system.
  • After spraying, the system does not need to replace any parts, simple dis-assembly and secondary filling, the system can be quickly put into operation.
  • The opening area of the pressure-relief device is reduced. the input cost of the pressure-relief device is directly reduced, and the safety buckle is installed and arranged more simply.
  • Nitrogen fire extinguishing system(IG-100) can be widely used to make rapid response to fire, protect staffs on sites, sudden fire, important places sensitive to chemical reaction and effectively protect the safety of personnel and property.





Mimic Diagram





Single/Multiple cylinder(s) for multiple zone





14.25kg IG100 Fire Suppression System Cylinder Volume CCC 15MPa 1









Single/Multiple cylinder(s) for one zone



14.25kg IG100 Fire Suppression System Cylinder Volume CCC 15MPa 2



Company Introduction



Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher

(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.





After-Sale Service



• We have an efficient sales and after sales team to promise slove all client's question in time.

• We provide 8×6 hrs technical support and service.
