Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Xingjin |
| Certification: | CAL,CMA,CNAS,ILAC-MRA,CCC |
| Model Number: | QMH15/80, QMH15/90 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | plywood outer box with bubble bag or paper |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Cylinder Volume: | 80L, 90L | Capacity: | 16.89kg, 19kg |
|---|---|---|---|
| Pattern Of Extinguishing: | Enclosed Flooding | Agent: | IG541(52% Nitrogen, 40% Argon, 8% Carbon Dioxide) |
| Working Prussure: | 15MPa | Color: | Red |
| High Light: | 15MPa IG541 Fire Suppression System,16.89kg Inergen Gas Fire Suppression System,OEM Inert Gas Fire Suppression System |
||
Product Description

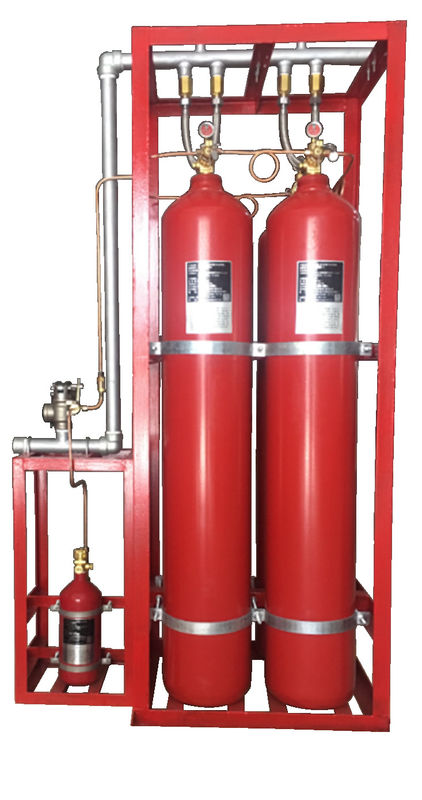

IG541 Fire Suppression System
16.89kg 15MPa Inert Gas Fire Suppression System IG541 Enclosed Flooding
Description of Fire Suppression System
IG541 mixture gas (52% nitrogen, 40% argon, 8% carbon dioxide) is a kind of colorless and tasteless and nontoxic and non-conducting, pure “green” gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.
Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and it also saves much money for employment to supervise the protective area.
Management of Multiple zones is also in the safe control of the whole system. We can use one system to protect multiple zones through distributing valves. It can make the whole system alternative aiming at different protective zone. Agent can be discharged into where the fire happens. It will be very efficient to put out fire in short time. One thing that need to mention, is that a little room should be prepare to be as storage space for the whole system.
Parameters of Fire Suppression System
| No. | Specification | Technical Parameter | |
| 1 | Working Pressure | 15Mpa | |
| 2 | Device Model | QMH15/80 | QMH15/90 |
| 3 | Capacity | 80Ltr | 90Ltr |
| 4 | Filling Capacity of Gas | 16.89kg | 19kg |
| 5 | Outside Diameter of Cylinder | Φ279mm | Φ325mm |
| 6 | Height of Cylinder | 1578+73mm | 1345+60mm |
| 7 | Spraying Time | ≤120s | |
| 8 | Filling Rate | 0.211kg/L | |
| 9 | Power | DC24V/1.6A | |
| 10 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) | |
| 11 | Condition of Reserving Room for Container | temperature: 0~50℃ | |
| 12 | Max Working Pressure | 17.2Mpa | |
| 13 | Min Working Pressure | 13.6Mpa | |
Application of Fire Suppression System
Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Mimic Diagram
Multiple cylinders for one zone
Multiple cylinders for multiple zones
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
• Q: Are you a manufacturer or a trading company?
A: We are a manufacturer.
• Q: Is the OEM order available?
A: Yes, produce in accordance with per client's requirement.
• Q: Where is your factory located? Can I visit there?
A: Our factory is located in Guangzhou, Guangdong province, China.
Yes, we always welcome and wait for your visit.
