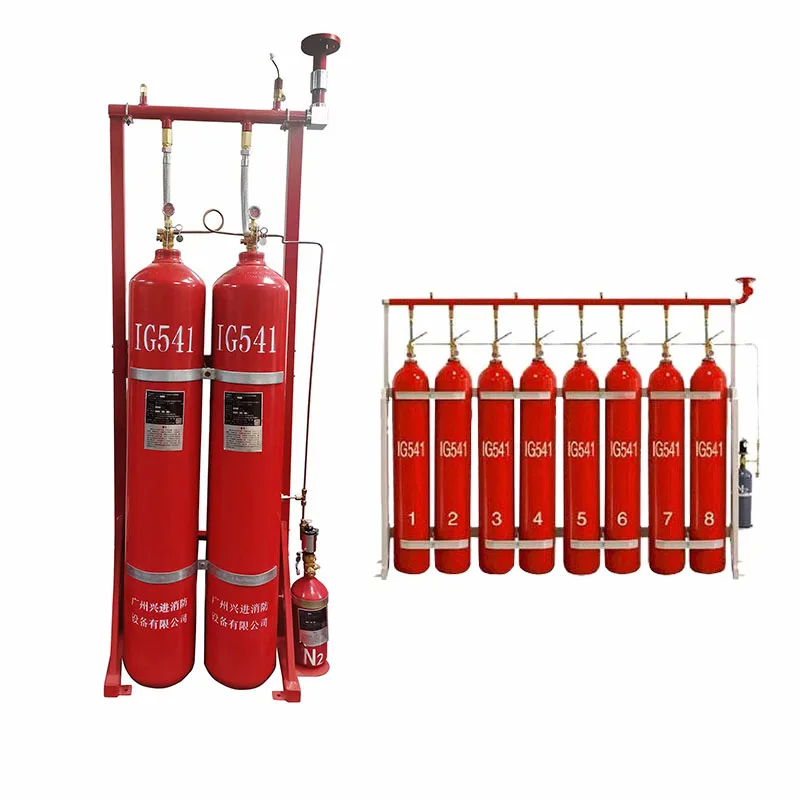

80L 15MPa Automatic Fire Alarm System IG541 Enclosed Flooding 1578mm

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMH15/80, QMH15/90

Payment & Shipping Terms

Minimum Order Quantity: 5 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 10-15 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000 sets per month

Get Best Price
Product Details
High Light:

15MPa Automatic Fire Alarm System

,

80L Automatic Fire Alarm System

Cylinder Volume:
80L
Capacity:
16.89kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
IG541(52% Nitrogen, 40% Argon, 8% Carbon Dioxide)
Working Prussure:
15MPa
Spraying Time:
Less Than 120s
Cylinder Volume:
80L
Capacity:
16.89kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
IG541(52% Nitrogen, 40% Argon, 8% Carbon Dioxide)
Working Prussure:
15MPa
Spraying Time:
Less Than 120s
Product Description

IG541 Fire Suppression System

80L 15MPa Automatic Fire Alarm System IG541 Enclosed Flooding 1578mm



Description of Fire Suppression System

A pure "green" gas without residue or pollution after extinguishment, IG541 mixed gas is a type that is colorless, tasteless, nontoxic, and nonconducting (52% nitrogen, 40% argon, and 8% carbon dioxide). And it has 0 ODP. It is an environmentally friendly gas that can be used to put out fires. Additionally, this functionality allows it to be used in specific locations where electrical fires are prone to occur.



The entire system can be automatically activated when extinguishing equipment and electrical accessories are used together. It can automatically initiate the extinguishing device using a solenoid actuator after monitoring the situation in the protective area with detectors. So the system as a whole can fully automate. As a result, it may be avoided that no one notices the fire when it breaks out, and it also saves a lot of money on hiring someone to oversee the protective area.



The safe control of the entire system includes the management of many zones. Through the use of distributing valves, we can safeguard several zones with a single system. It might modify the entire system to aim for a different protected zone. Agent can be released into the area of the fire. In a short period of time, the fire will be effectively extinguished. One thing that must be mentioned is that a small room must be ready to serve as the system's storage space.





Parameters
of Fire Suppression System


No. Specification Technical Parameter
1 Working Pressure 15Mpa
2 Device Model QMH15/80 QMH15/90
3 Capacity 80Ltr 90Ltr
4 Filling Capacity of Gas 16.89kg 19kg
5 Outside Diameter of Cylinder Φ279mm Φ325mm
6 Height of Cylinder 1578+73mm 1345+60mm
7 Spraying Time ≤120s
8 Filling Rate 0.211kg/L
9 Power DC24V/1.6A
10 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20)
11 Condition of Reserving Room for Container temperature: 0~50
12 Max Working Pressure 17.2Mpa
13 Min Working Pressure 13.6Mpa




Application
of Fire Suppression System

  • Buildings: To protect occupants and property from fire damage, fire suppression systems are frequently installed in commercial and residential buildings. These systems frequently incorporate sprinkler systems, fire extinguishers, and fire alarms.
  • Data Centers: A fire has the potential to completely destroy the vital information and technology housed in data centers. Data centers are protected from fire damage by fire suppression systems, such as pre-action systems that put out fires with both gas and water.



Packages

We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

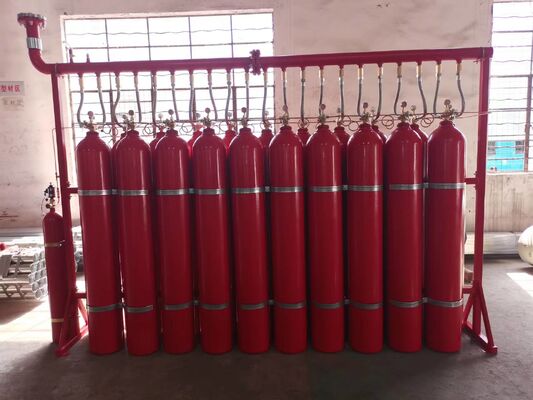

                                   80L 15MPa Automatic Fire Alarm System IG541 Enclosed Flooding 1578mm 0





Mimic Diagram


Multiple cylinders for one zone



80L 15MPa Automatic Fire Alarm System IG541 Enclosed Flooding 1578mm 1





Multiple cylinders for multiple zones



80L 15MPa Automatic Fire Alarm System IG541 Enclosed Flooding 1578mm 2







After-Sale Service



• We have an efficient sales and after sales team to promise slove all client's question in time.

• We provide 8×6 hrs technical support and service.





FAQ



• Q: Are you a manufacturer or a trading company?



A: We are a manufacturer.





• Q: Is the OEM order available?



A: Yes, produce in accordance with per client's requirement.





• Q: Where is your factory located? Can I visit there?



A: Our factory is located in Guangzhou, Guangdong province, China.



Yes, we always welcome and wait for your visit.
