15MPa IG100 Nitrogen Fire Suppression Device Pipe Network Type 16.04kg

Product Details:
Place of Origin: China
Brand Name: Xingjin
Model Number: QMH15/80, QMH15/90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
  • Detail Information
  • Product Description

Detail Information

Cylinder Volume: 80L, 90L Capacity: 14.25kg, 16.04kg
Pattern Of Extinguishing: Enclosed Flooding Agent: IG100 (100% Pressurized Nitrogen)
Working Prussure: 15MPa Color: Red
High Light:

IG100 Nitrogen Fire Suppression Device


15MPa Nitrogen Fire Suppression Device

Product Description

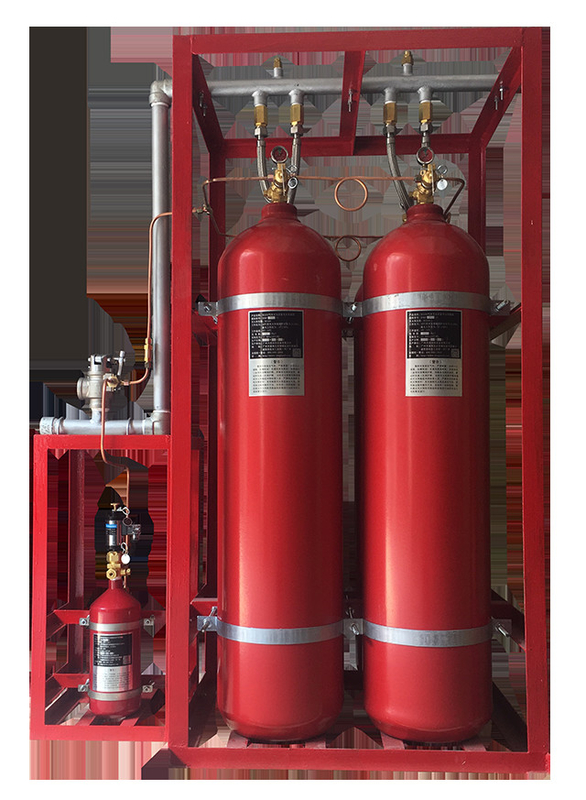

15MPa IG100 Nitrogen Fire Suppression Device Pipe Network Type 16.04kg


Description of Fire extinguishing agent


In order to properly incorporate the design idea of the new era fire extinguishing system, IG100 uses nitrogen with a 100% nitrogen content as the extinguishing agent. This results in the product having effective environmental protection and fire extinguishing characteristics. It has the qualities of safeguarding the ecological environment of the planet, assuring clean and safe visibility, and preventing pollution from fire fighting products. With cheap filling costs, nitrogen can be produced from a variety of sources and separated from air. Suffocation fire extinguishing is accomplished by the fire extinguishing system, which reduces the oxygen in the combustion zone.



Parameters of Fire Suppression System


No. Specification Technical Parameter
1 Working Pressure 15Mpa
2 Device Model QMD15/80 QMD15/90
3 Capacity 80Ltr 90Ltr
4 Filling Capacity of Gas 14.25kg 16.04kg
5 Outside Diameter of Cylinder Φ279mm Φ325mm
6 Height of Cylinder 1578+73mm 1345+60mm
7 Spraying Time ≤10s
8 Max Filling Rate 0.178kg/L
9 Power DC24V/1.6A
10 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20)
11 Condition of Reserving Room for Container temperature: 0~50
12 Max Working Pressure 17.2Mpa
13 Min Working Pressure 13.6Mpa




Application of Fire Suppression System


The control center, library, archives, treasure trove of historical artifacts, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, etc.





  • There may be a 25%–50% reduction of fire extinguishing agent cylinders when compared to the conventional 15MPa system.
  • Between-cylinder building space is successfully decreased, and the building's occupancy and utilization rates are both increased.
  • Costs for pipeline and pipe fittings can be decreased with a continuous 6MPa low pressure release.
  • 200 meters may be transmitted at a distance of 6 MPa continuous release pressure, which offers longer-lasting and more effective pressure.
  • The impact on workers at construction sites, machinery, and building structures will only be reduced and safety will increase with the release of the entire system under low pressure.
  • The external constant pressure reliever can only bear the pressure when the system is spraying, which is convenient for dis-assembly and maintenance and effectively reduces the failure rate of the system.
  • After spraying, the system does not need to replace any parts, simple dis-assembly and secondary filling, the system can be quickly put into operation.
  • The opening area of the pressure-relief device is reduced. the input cost of the pressure-relief device is directly reduced, and the safety buckle is installed and arranged more simply.
  • Nitrogen fire extinguishing system(IG-100) can be widely used to make rapid response to fire, protect staffs on sites, sudden fire, important places sensitive to chemical reaction and effectively protect the safety of personnel and property.
  • As a fire extinguishing agent, nitrogen is not a mixed product. It can be directly extracted from the air and has low maintenance and filling costs. Additionally, there are no chemical reagent residues that may exist in the mixed gas, making it safe and reliable. Due to filling an inert gas without the need for secondary pressurization, filling is simple and fast, which can shorten the production and processing cycle of the product.



15MPa IG100 Nitrogen Fire Suppression Device Pipe Network Type 16.04kg 0




We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.


15MPa IG100 Nitrogen Fire Suppression Device Pipe Network Type 16.04kg 1





Mimic Diagram



Single/Multiple cylinder(s) for multiple zone



15MPa IG100 Nitrogen Fire Suppression Device Pipe Network Type 16.04kg 2


























                                                                      Single/Multiple cylinder(s) for one zone


15MPa IG100 Nitrogen Fire Suppression Device Pipe Network Type 16.04kg 3


























After-Sale Service


• We have an efficient sales and after sales team to promise slove all client's question in time.

• We provide 8×6 hrs technical support and service.
