FM200 Hanging Fire Extinguishing System With Automatic Suspension For Rooms

Product Details:
Place of Origin: China
Brand Name: xingjin
Model Number: XQQW8/1.6, XQQW10/1.6, XQQW16/1.6, XQQW20/1.6, XQQW30/1.6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set system
Price: negotiation
Packaging Details: Plywood case or paper carton
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 1000 sets per month
  • Detail Information
  • Product Description

Detail Information

Cylinder Volume: 8L, 10L,16L, 20L, 30L Agent: Hfc-227ea
Working Pressure: 1.6MPa Zone Management: One Zone
Placement: Hanging On The Wall/ceiling Standard Of Examination: GB25972-2010
Pattern Of Extinguishing: Enclosed Flooding Actuation: Temperature 68℃
High Light:

FM200 Hanging Fire Extinguishing System


Automatic Suspension Fire Extinguishing System

Product Description

Hfc227ea Hanging Fire Suppression System Without Pollution for Storage Room



Product Introduction:


• Assembling the container, automatic suspension of the HFC-227ea/FM200 fire extinguishing system valve, nozzle, etc. mounted separately to the wall or ceiling. When a fire starts, a fire extinguisher will either manually or automatically begin.

• The solenoid sensor and temperature sensor are the device's default starting modes.

• It does not take up any ground space and is typically utilized in smaller rooms.

• It extinguishes quickly and accurately, with a short spray duration.

• Installation and construction require little engineering investment.

• An automatic fire extinguishing system using HFC-227ea and FM200 (Heptafluoropropane) is a set of fire extinguishers. The current intelligent automatic fire detection system combines automatic control and fire detection extinguishing apparatus.

• HFC-227ea/FM200 (Heptafluoropropane) is a type of colorless, tasteless, electrically inert, and non-combustible gas. second-hand gas contamination. The potential for ozone depletion is zero.

• Elevated fire extinguishing effectiveness, strong electrical insulation, low toxicity, and cleanliness.

• It currently serves as a great alternative to halon extinguishing agents.

• Depending on the size, capacity, extinguishing agent, and beginning point of the place how to put together.


FM200 Hanging Fire Extinguishing System With Automatic Suspension For Rooms 0





No Specifications Parameters
1 Tank size 8Ltr, 10Ltr, 16Ltr, 20Ltr, 30Ltr
2 Device model XQQW8/1.6, XQQW10/1.6, XQQW16/1.6, XQQW20/1.6, XQQW30/1.6
3 Storage pressure 1.6mpa
4 Maximum working pressure 2.5mpa
5 Discharge time ≤10s
6 Maximum filling rate 1kg/L
7 Device starting power DC24V/1.5A
8 Activating temperature 68℃
9 Environment temperature of protection zone 0℃~50℃


Below data refers to regular temperature at 20 centigrade and atmospheric pressure at 1 bar. The max coverage would vary a little from the ambient temperature and pressure on the real condition.


Device model Filling amount (kg) Maximum working pressure(Mpa) Storage pressure (Mpa) Maximum coverage
Starting mode
XQQW8/1.6 8 2.5 1.6 11.11

Temperature sensor


Activating Tem[erature:68℃

XQQW16/1.6 10 2.5 1.6 13.89
XQQW16/1.6 16 2.5 1.6 22.22
XQQW20/1.6 20 2.5 1.6 27.78
XQQW30/1.6 30 2.5 1.6 41.67

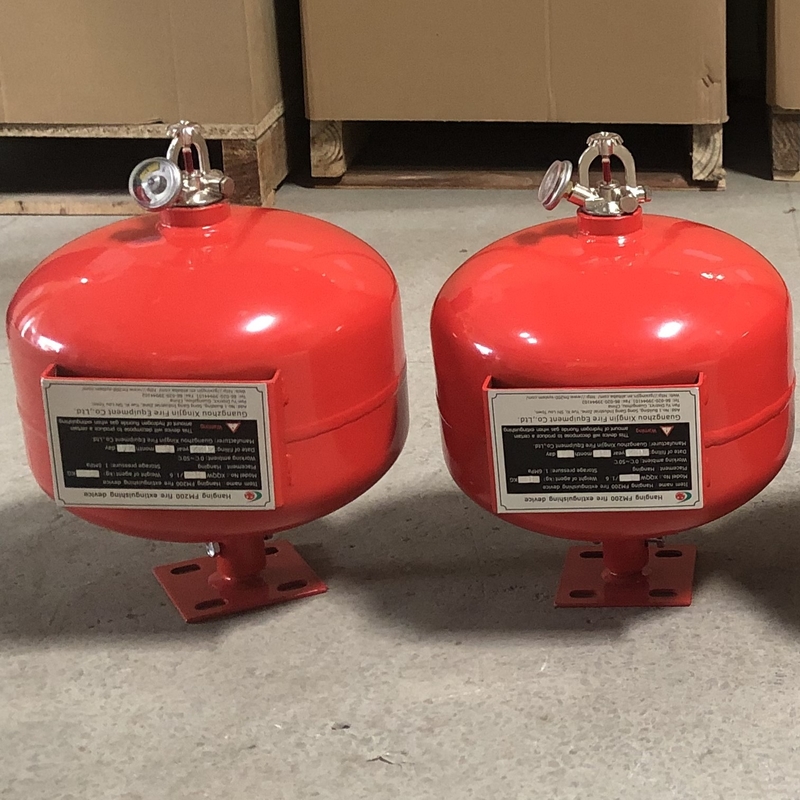

One spherical pressure tank, fire extinguishing agent(HFC-227ea, same as FM200), hanging mounting, thermal sensor(one little glass tube filled with liquid whose volume will be changed by temperature).

FM200 Hanging Fire Extinguishing System With Automatic Suspension For Rooms 1



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.


    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.

FM200 Hanging Fire Extinguishing System With Automatic Suspension For Rooms 2



Competitive Benefit:


Although there are two different types of systems for the automatic FM200 fire extinguisher, they both share the same advantages:​


1. Consideration of minimal protection in depth. There are some very small spaces that just need a minimal amount of fire extinguishing agent, such as server rooms, electric rooms, or the like. A hanging type system can thus be used.


2. Not much room is occupied. Due to the narrow size of the protection zone, there may not be much room for additional machinery, equipment, or objects. The ceiling mounted type is therefore created with the modest but effective function of fire suppression and complete space coverage.


3. Easy transportation and installation. Due to its relative lightness and diminutive size, even one person can hold it and mount it to the top of a wall or ceiling. The temperature-controlled type, however, cannot, in theory or in practice, be placed in more than one piece.





We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

FM200 Hanging Fire Extinguishing System With Automatic Suspension For Rooms 3


Company Introduction


Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and our professional and experienced staff, which consists of the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, is dedicated to the study and development of HFC-227ea (FM200) products. The FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are all currently commonly utilized.Our business is well-liked by the clients in China as a consequence of the high-quality goods and services we provide, as well as our solid reputation.




1. Are you a manufacturer or a trading company?


We produce things.


2. How long will a typical quantity order take?


We typically take 15 working days to complete a typical order (40 images); for some large purchases, it is best to get in touch with our seller.


3. How do you want the payment to be made?


We accept all forms of payment, although we would appreciate it if you used something straightforward like T/T or Paypal.
