Home > products > Inert Gas Fire Suppression System > IG55 Argonite Fire System For Safe Fire Suppression Nitrogen And Argon Safe

IG55 Argonite Fire System For Safe Fire Suppression Nitrogen And Argon Safe

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMDY30/80, QMDY20/80

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 10-15 working days

Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 300 sets per month

Get Best Price
Product Details
High Light:

IG55 Argonite Fire System

,

Argon Safe Argonite Fire System

Cylinder Volume:
80L
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
IG55(50% Nitrogen, 50% Argon )
Working Pressure:
30MPa, 20MPa
Color:
Red
Max. Working Pressure:
36.6 MPa, 23.2MPa
Min. Working Pressure:
27MPa, 18MPa
System Start Mode:
Electrical Automatic, Electrical Manual, Mechanical Emergency Start
Cylinder Volume:
80L
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
IG55(50% Nitrogen, 50% Argon )
Working Pressure:
30MPa, 20MPa
Color:
Red
Max. Working Pressure:
36.6 MPa, 23.2MPa
Min. Working Pressure:
27MPa, 18MPa
System Start Mode:
Electrical Automatic, Electrical Manual, Mechanical Emergency Start
Product Description

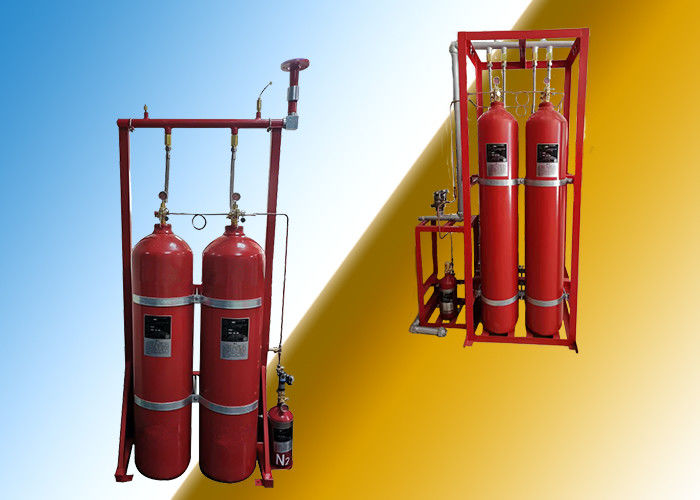

IG55 Argonite fire system

IG55 Argonite fire system





IG55 Argonite Fire System For Safe Fire Suppression Nitrogen And Argon Safe 0






Description



Gaseous fire suppression systems like the IG55 automatic fire extinguishing system are made to put out fires rapidly and efficiently. This technology is perfect for securing enclosed spaces like data centers, telecommunications hubs, archives, museums, and other places with priceless assets that need to be protected from fire.



A mixture of nitrogen and argon gases is released into the protected area as part of the IG55 system to operate. These gases are safe to use around delicate electronic equipment and in occupied environments because they are non-conductive and non-toxic. The gas quickly fills the enclosed space after it is released, replacing the oxygen and putting out the fire.



Parameters



No. Specification Technical Parameter
1 Working Pressure 20MPa 30MPa
2 Device Model QMDY20/80 QMDY30/80
3 Capacity 80Ltr 80Ltr
4 Outside Diameter of Cylinder Φ279mm Φ267mm
5 Height of Cylinder 1610+70mm 1770±10mm
6 Max Working Pressure 23.2MPa 36.6MPa
7 Min Working Pressure 18MPa 27MPa
8 Spraying Time ≤120s
9 Power DC24V/1.6A
10 Nitrogen Pressure of Driving Device 6.0±1.0MPa(20℃)
11 Condition of Reserving Room for Container temperature: 0~50℃








Application



Any application where fire safety is essential can use the IG55 automated fire extinguishing system. Here are a few scenarios in which the IG55 system might be applied:

  1. The data center Critical servers and computer systems are kept in data centers, which are prone to fire damage. The IG55 system is perfect for guarding these locations since it can put out fires rapidly without harming the delicate electrical equipment.
  2. telecommunications infrastructure Switches, routers, and servers are examples of equipment found in telecommunications facilities that are necessary for maintaining communication networks. These facilities can be protected by the IG55 system, which will guarantee continuous communication in the case of a fire.
  3. Museums and archives: These institutions frequently hold priceless objects and irreplaceable records. These things can be shielded against fire damage by the IG55 system, preserving them for future generations.
  4. Facilities for producing electricity: Facilities for producing electricity, such as substations and control rooms, contain equipment that is essential for ensuring a steady supply of electricity. These locations can be safeguarded by the IG55 system, reducing the possibility of outages and downtime.
  5. Industrial facilities: Due to the presence of combustible materials, industrial facilities, such as chemical factories and manufacturing plants, frequently have high fire risks. The IG55 system can offer efficient fire protection while lowering the possibility of product and equipment damage.

All things considered, the IG55 automatic fire extinguishing system is a flexible option for a variety of applications that demand dependable and effective fire protection.



Packages


We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.



IG55 Argonite Fire System For Safe Fire Suppression Nitrogen And Argon Safe 1





Advantages



1. The 30MPa system uses 25% to 50% less extinguisher cylinders than the conventional 15MPa system.

2. It significantly minimizes the floor area between the cylinders, increasing the building's overall use value and utilization rate.
3. A continuous 6MPa low pressure release lowers the overall system's pipe and component costs.

4. With a transmission range of up to 200 meters, the continuous release pressure of 6 MPa offers a more reliable and efficient pressure.

5. The entire system will release at low pressure, which will increase safety and have less of an impact on the building's structure, workers, and equipment.

6. The external continuous pressure-relief mechanism only supports the pressure during system discharge, making it simple to disassemble and maintain and significantly lowering the rate of system failure.

7. With easy disassembly and secondary filling with agent after discharge, the system can be immediately placed into operation without changing any elements.

8. It makes installing and arranging the safety buckle easier and minimizes the size of the opening hole in the gas pressure relief port. It also directly lowers the cost of the safety pressure relief device's input.

9. IG55 fire extinguishing system can be widely used in important places that need rapid response to fire. There are workers, sudden fires and sensitive to chemical reactions on the site of the protection zone, the fire extinguishing system can effectively protect the safety of personnel and property.









Mimic Diagram





Multiple cylinders for multiple zones



IG55 Argonite Fire System For Safe Fire Suppression Nitrogen And Argon Safe 2





Multiple cylinders for one zone



IG55 Argonite Fire System For Safe Fire Suppression Nitrogen And Argon Safe 3
