Guangzhou Xingjin Fire Equipment Co.,Ltd.

IG55 Automatic Inert Gas Fire Extinguishing System Device Model

Product Details:
Place of Origin: China
Brand Name: Xingjin
Model Number: QMDY30/80, QMDY20/80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 300 sets per month
  • Detail Information
  • Product Description

Detail Information

Cylinder Volume: 80L Pattern Of Extinguishing: Enclosed Flooding
Agent: IG55(50% Nitrogen, 50% Argon ) Working Pressure: 30MPa, 20MPa
Color: Red Max. Working Pressure: 36.6 MPa, 23.2MPa
Min. Working Pressure: 27MPa, 18MPa System Start Mode: Electrical Automatic, Electrical Manual, Mechanical Emergency Start
High Light:

Inert Gas Fire Extinguishing System


Automatic Inert Gas Fire Extinguishing System


IG55 Inert Gas Fire Suppression System

Product Description

IG55 Argonite fire system

IG55 Argonite fire system

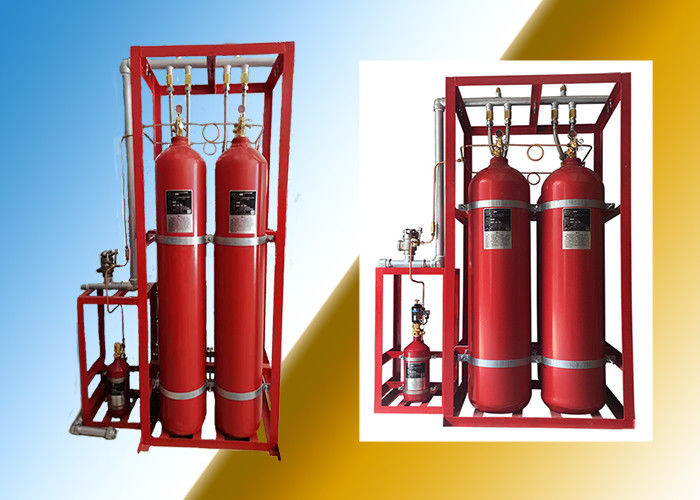

IG55 Automatic Inert Gas Fire Extinguishing System Device Model 0





The IG55 automatic fire extinguisher system, for example, is made to suppress fires using gas rapidly and efficiently. Examples of enclosed spaces that this technology is perfect for securing include data centers, communication hubs, archives, museums, and other locations with priceless assets that need to be protected from fire.


An argon and nitrogen gas combination is released into the protected area in order for the IG55 system to work. Due to their non-conductive nature and lack of toxicity, these gases are safe to use around delicate electrical equipment and in populated regions. Once released, the gas quickly fills the space, replacing the oxygen and putting out the fire.




No. Specification Technical Parameter
1 Working Pressure 20MPa 30MPa
2 Device Model QMDY20/80 QMDY30/80
3 Capacity 80Ltr 80Ltr
4 Outside Diameter of Cylinder Φ279mm Φ267mm
5 Height of Cylinder 1610+70mm 1770±10mm
6 Max Working Pressure 23.2MPa 36.6MPa
7 Min Working Pressure 18MPa 27MPa
8 Spraying Time ≤120s
9 Power DC24V/1.6A
10 Nitrogen Pressure of Driving Device 6.0±1.0MPa(20℃)
11 Condition of Reserving Room for Container temperature: 0~50℃






The IG55 automatic fire extinguishing system can be used in any situation where fire safety is crucial. Listed below are a few situations where the IG55 system might be used:

  1. The computer center Data centers, which are vulnerable to fire damage, are where vital servers and computer systems are maintained. The IG55 system is ideal for defending these areas since it can quickly extinguish fires without endangering the delicate electrical apparatus.
  2. Infrastructure for telecommunications Equipment found in telecommunications facilities that is required for maintaining communication networks includes switches, routers, and servers. The IG55 system, which will ensure constant communication in the event of a fire, can protect these installations.
  3. Museums and archives: These places regularly house priceless items and irreplaceable documents. The IG55 system can protect these items against fire damage, ensuring that they are preserved for future generations.
  4. Facilities for electricity production: Equipment necessary for guaranteeing a consistent supply of electricity is found in facilities for electricity production, such as substations and control rooms. By protecting these areas, the IG55 system can lessen the likelihood of outages and downtime.
  5. Industrial facilities: Because of the combustible elements they contain, industrial facilities, like chemical plants and manufacturing facilities, usually pose a high fire risk. While reducing the likelihood of product and equipment damage, the IG55 system can provide effective fire protection.

Overall, the IG55 automatic fire extinguishing system is a versatile choice for a range of applications that demand dependable and efficient fire protection.



We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.


IG55 Automatic Inert Gas Fire Extinguishing System Device Model 1





1. The 30MPa system uses 25% to 50% less extinguisher cylinders than the conventional 15MPa system.

2. It significantly minimizes the floor area between the cylinders, increasing the building's overall use value and utilization rate.
3. A continuous 6MPa low pressure release lowers the overall system's pipe and component costs.

4. With a transmission range of up to 200 meters, the continuous release pressure of 6 MPa offers a more reliable and efficient pressure.

5. The entire system will release at low pressure, which will increase safety and have less of an impact on the building's structure, workers, and equipment.

6. The external continuous pressure-relief mechanism only supports the pressure during system discharge, making it simple to disassemble and maintain and significantly lowering the rate of system failure.

7. With easy disassembly and secondary filling with agent after discharge, the system can be immediately placed into operation without changing any elements.

8. It makes installing and arranging the safety buckle easier and minimizes the size of the opening hole in the gas pressure relief port. It also directly lowers the cost of the safety pressure relief device's input.

9. IG55 fire extinguishing system can be widely used in important places that need rapid response to fire. There are workers, sudden fires and sensitive to chemical reactions on the site of the protection zone, the fire extinguishing system can effectively protect the safety of personnel and property.





Mimic Diagram



Multiple cylinders for multiple zones


IG55 Automatic Inert Gas Fire Extinguishing System Device Model 2



Multiple cylinders for one zone


IG55 Automatic Inert Gas Fire Extinguishing System Device Model 3
