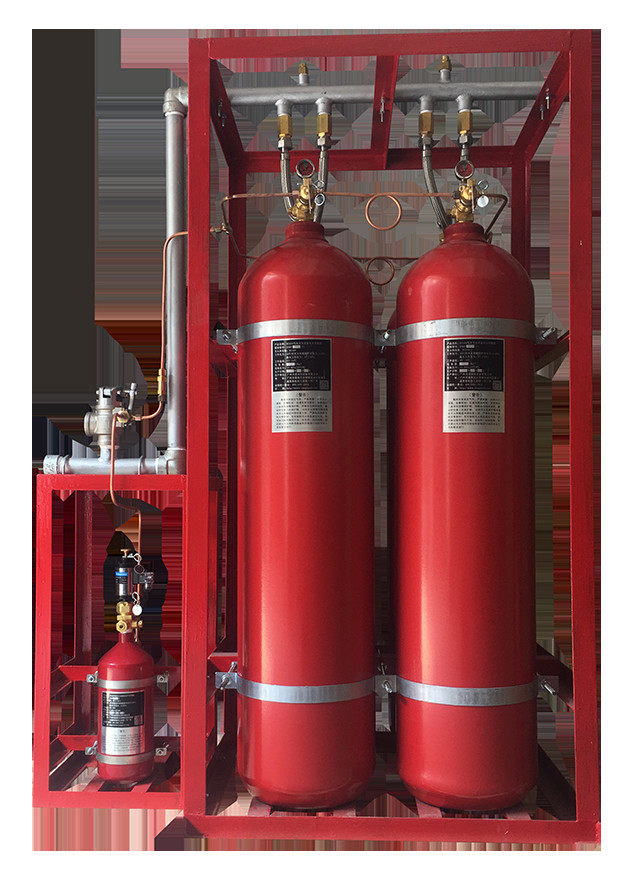

30MPa IG541 Inert Gas Fire Suppression System For Communication Facilities

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMH20/80, QMH30/80

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 10-15 working days

Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 300 sets per month

Get Best Price
Product Details
High Light:

IG541 Inert Gas Fire Suppression System

,

30MPa Inert Gas Fire Suppression System

Cylinder Volume:
80L
Capacity:
23.9kg(20MPa), 33.56kg(30MPa)
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
IG541(52% Nitrogen, 40% Argon, 8% Carbon Dioxide)
Working Pressure:
20MPa, 30MPa
Color:
Red
Cylinder Volume:
80L
Capacity:
23.9kg(20MPa), 33.56kg(30MPa)
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
IG541(52% Nitrogen, 40% Argon, 8% Carbon Dioxide)
Working Pressure:
20MPa, 30MPa
Color:
Red
Product Description

30MPa IG541 Inergen Fire Suppression System



Description



Another form of clean agent fire suppression system, the IG541 automatic fire extinguishing system is intended to put out flames swiftly and effectively without endangering delicate equipment or leaving behind any residue. The technique produces a non-conductive, non-conductive, and environmentally benign fire-extinguishing agent using a mixture of three naturally occurring gases: nitrogen, argon, and carbon dioxide.



Data centers, server rooms, communication facilities, and control rooms are examples of spaces that the IG541 system is frequently utilized to safeguard. When heat or smoke is detected, the system immediately releases the extinguishing chemical into the enclosed space. The system is activated by a fire detection system.



The IG541 system works by lowering the oxygen concentration in the covered area to a level below which combustion cannot continue, putting out the fire. The system is made to put out fires quickly and effectively while causing the least amount of inconvenience to the facility or equipment that is being safeguarded.



The IG541 system is ideal for a variety of applications and is simple and dependable in design, making it straightforward to install and maintain. The system is very versatile and may be set up to satisfy different fire prevention needs.



The IG541 system has the benefit of having a low potential for ozone depletion and global warming, making it an environmentally safe choice for fire suppression. Additionally, because the extinguishing chemical is non-toxic and doesn't produce any dangerous byproducts, the system is safe to use in occupied environments.



Overall, the IG541 automatic fire extinguishing system offers quick and efficient protection for priceless equipment and facilities, while reducing damage and downtime.



Parameters


No. Specification Technical Parameter
1 Working Pressure 20MPa 30MPa
2 Device Model QMH20/80 QMH30/80
3 Capacity 80Ltr 80Ltr
4 Filling Capacity of Gas 22.37kg 33.56kg
5 Filling Rate 0.29kg/L 0.42kg/L
6 Outside Diameter of Cylinder Φ286mm Φ267mm
7 Height of Cylinder 1910mm 1770mm
8 Max Working Pressure 23.2MPa 36.6MPa
9 Min Working Pressure 18MPa 27MPa
10 Spraying Time ≤120s
11 Power DC24V/1.6A
12 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
13 Condition of Reserving Room for Container temperature: 0~50℃





Application



Leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural artifacts, etc. are just a few examples of the rooms that are available.


Packages



We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.


30MPa IG541 Inert Gas Fire Suppression System For Communication Facilities 0


Advantages

With the exception of metal fires, one of the agent's advantages in terms of its description is that it may be used for all classes of class fires. It is a clean agent, as well. After being put out, the fire leaves no traces of pollutants.



Another is the expertise of the IG541 extinguishing system in handling critical assets or equipment. Your goods won't suffer any damage as a result. It is an effective fire suppression system that is also reasonably priced.



By doing this, you can properly protect your possessions. It has an extinguishing mechanism built into the system to swiftly put out a fire, preferably in less than 10 seconds. It suggests that all agents will be released in this manner promptly. There will then be extensive flooding. There is a time delay mechanism included as well. It takes two minutes or so. It implies that, in the event of a fire, enough time will be available to safely evacuate everyone.



It can make it possible for many zones to be safely managed by one system. This will result in significant cost savings for expansive and multiple zones.



Mimic Diagram

Multiple cylinders for one zone



30MPa IG541 Inert Gas Fire Suppression System For Communication Facilities 1





Multiple cylinders for multiple zones



30MPa IG541 Inert Gas Fire Suppression System For Communication Facilities 2
