Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Xingjin |
| Certification: | CAL,CMA,CNAS,ILAC-MRA,CCC |
| Model Number: | QMH20/80, QMH30/80 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Plywood outer box with bubble bag or paper |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, Paypal, Credit card |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Cylinder Volume: | 80L | Capacity: | 23.9kg(20MPa), 33.56kg(30MPa) |
|---|---|---|---|
| Pattern Of Extinguishing: | Enclosed Flooding | Agent: | IG541(52% Nitrogen, 40% Argon, 8% Carbon Dioxide) |
| Working Pressure: | 20MPa, 30MPa | Color: | Red |
| High Light: | IG541 Inert Gas Fire Suppression System,30MPa Inert Gas Fire Suppression System |
||
Product Description

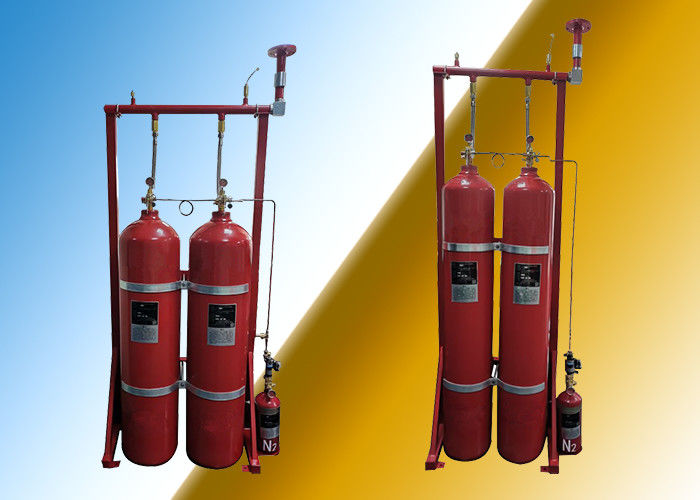

30MPa IG541 Inergen Fire Suppression System
Description
The IG541 automatic fire extinguishing system is another type of clean agent fire suppression system that is designed to extinguish flames quickly and effectively without damaging delicate equipment or leaving any residue behind. Using a combination of three naturally existing gases: nitrogen, argon, and carbon dioxide, the approach creates a non-conductive, non-conductive, and environmentally friendly fire-extinguishing agent.
The IG541 system is frequently used to protect data centers, server rooms, communication facilities, and control rooms. When heat or smoke is detected, the device rapidly releases the extinguishing chemical into the confined space. A fire detection system triggers the system.
The IG541 system extinguishes a fire by reducing the oxygen content of the enclosed space to a level below which combustion is unable to proceed. The system is designed to promptly and effectively extinguish flames with the least amount of disruption to the building or protected equipment.
The design of the IG541 system is uncomplicated and reliable, making it simple to install and maintain. It is excellent for a range of applications. The system is very adaptable and may be configured to meet various fire protection requirements.
The IG541 system has the benefit of having a low potential for ozone depletion and global warming, making it an environmentally safe choice for fire suppression. Additionally, because the extinguishing chemical is non-toxic and doesn't produce any dangerous byproducts, the system is safe to use in occupied environments.
Overall, the IG541 automatic fire extinguishing system offers quick and efficient protection for priceless equipment and facilities, while reducing damage and downtime.
Parameters
| No. | Specification | Technical Parameter | |
| 1 | Working Pressure | 20MPa | 30MPa |
| 2 | Device Model | QMH20/80 | QMH30/80 |
| 3 | Capacity | 80Ltr | 80Ltr |
| 4 | Filling Capacity of Gas | 22.37kg | 33.56kg |
| 5 | Filling Rate | 0.29kg/L | 0.42kg/L |
| 6 | Outside Diameter of Cylinder | Φ286mm | Φ267mm |
| 7 | Height of Cylinder | 1910mm | 1770mm |
| 8 | Max Working Pressure | 23.2MPa | 36.6MPa |
| 9 | Min Working Pressure | 18MPa | 27MPa |
| 10 | Spraying Time | ≤120s | |
| 11 | Power | DC24V/1.6A | |
| 12 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) | |
| 13 | Condition of Reserving Room for Container | temperature: 0~50℃ | |
Application
Leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural artifacts, etc. are just a few examples of the rooms that are available.
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Advantages
With the exception of metal fires, one of the agent's advantages in terms of its description is that it may be used for all classes of class fires. It is a clean agent, as well. After being put out, the fire leaves no traces of pollutants.
Another is the expertise of the IG541 extinguishing system in handling critical assets or equipment. Your goods won't suffer any damage as a result. It is an effective fire suppression system that is also reasonably priced.
By doing this, you can properly protect your possessions. It has an extinguishing mechanism built into the system to swiftly put out a fire, preferably in less than 10 seconds. It suggests that all agents will be released in this manner promptly. There will then be extensive flooding. There is a time delay mechanism included as well. It takes two minutes or so. It implies that, in the event of a fire, enough time will be available to safely evacuate everyone.
It can make it possible for many zones to be safely managed by one system. This will result in significant cost savings for expansive and multiple zones.
Mimic Diagram
Multiple cylinders for one zone
Multiple cylinders for multiple zones
