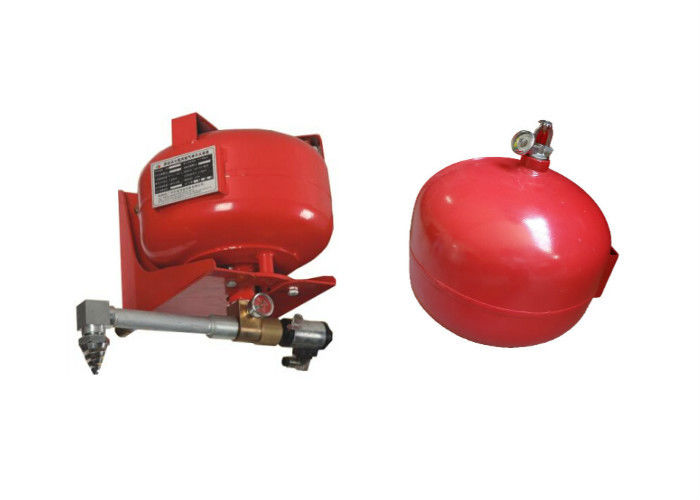

20L Hanging Fm200 Heptafluoropropane Automatic Suppression System

Product Details:
Place of Origin: China
Brand Name: xingjin
Payment & Shipping Terms:
Minimum Order Quantity: 1 set system
Price: negotiation
Packaging Details: Plywood case, Paper carton
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 1000 sets per month
  • Detail Information
  • Product Description

Detail Information

Dimension(mm): 670*341*410 Capacity Of Cylinder: 20L
Standard Of Examination: GB25972-2010 Working Temperature: 0~50℃
Agent: Heptafluoropropane Pattern Of Extinguishing: Enclosed Flooding
High Light:

Heptafluoropropane Automatic Suppression System


20L Hanging Automatic Suppression System


Fm200 Automatic Suppression System

Product Description

20L Hanging Fm200 Automatic Suppression System Heptafluoropropane



No. Specification Technical Parameter
1 Filling pressure 1.6Mpa
2 Spraying time ≤8s
3 Working temperature 0~50℃
4 Starting mode Electrical start or manual start

A hanging fire suppression system, also known as a suspended fire suppression system, is a fire protection system designed to detect and suppress fires in specific areas or rooms. It is typically installed in commercial and industrial settings where fire hazards are present, such as data centers, server rooms, electrical control rooms, or storage facilities. Here is a general description of a hanging fire suppression system:

  1. System of Fire Detection: Smoke detectors, heat detectors, and flame detectors are just a few of the several types of fire detection equipment included in the system of fire detection. These detectors are strategically positioned across the protected area to keep a look out for fire signs.
  2. Control panel: The control panel serves as the primary point of command for the system. It gathers signals from the detectors and analyzes the data to determine whether a fire is present. When a fire is found, the suppression procedure gets started.
  3. Suppression Agent: The suppression agent used in a hanging fire suppression system might vary based on the particular requirements and characteristics of the protected area. Common suppression agents include things like water, foam, inert gases (like nitrogen or argon), and clean agents (like FM200 or Novec 1230). The type of fire, whether or not there is precious equipment present, and environmental factors are all taken into account while choosing a suppression product.
  4. Sprinkler System: A hanging fire suppression system might also incorporate a sprinkler system. Sprinkler heads that have been strategically positioned across the protected area are activated when a fire is suspected. The sprinklers release water or other powerful fire-suppression chemicals to control or extinguish the fire.
  5. Pipe Network: To distribute the suppression agent to the selected places, a network of pipes is built throughout the protected area. The pipe system makes sure that the fire suppression ingredient is distributed evenly, maximizing its efficiency.
  6. Discharge Nozzles: Discharge nozzles are positioned to offer the best possible coverage. They are carefully positioned and attached to the piping network. To properly put out the fire, these nozzles distribute the suppression agent in a predetermined pattern.
  7. Control and Activation: The suppression system is activated when the control panel determines that a fire is present. In most cases, this entails sounding an alarm to notify the inhabitants and starting the release of the suppression agent through the piping system and discharge nozzles. To assist fire response and evacuation operations, the control panel may also link with other building systems, such as HVAC or access control.
  8. Safety Features: To prevent unintentional discharge or system failure, hanging fire suppression systems are outfitted with safety features. Pressure sensors, manual activation stations, and alarms to signal system status or errors are a few examples of these features.
  9. Maintenance and Inspections: Regular maintenance and inspections are essential to ensure the proper functioning of the hanging fire suppression system. This includes checking the pressure and integrity of the piping network, testing the detection devices, and verifying the functionality of the control panel.

It's important to note that the design and installation of a hanging fire suppression system may vary depending on specific building requirements and local fire safety regulations. Consulting with a fire protection professional is recommended to ensure compliance and the most effective system for a particular application.
 20L Hanging Fm200 Heptafluoropropane Automatic Suppression System 0
    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
    The location where fires are more likely to occur, such as the ship's engine room, cargo hold, rolling mill, printing press, oil switch, oil-immersed transformer, melt impregnating tank, and equipment used to dry large generators and pulverized coal into cement.

 20L Hanging Fm200 Heptafluoropropane Automatic Suppression System 1
Competitive Advantage:
    1. Small but effective
    2. Extremely simple installation
    3. Little space for placement of it
    4. Hanging on the ceiling or wall
    5. Low cost for little protective zone
The electromagnetic hanging type fm200 fire extinguishing systems and the temperature-based hanging type fm200 fire extinguishers are the two different types of hanging type fm200 fire suppression systems. They have slightly different compositions.
The fm200 cylinder, fm200 fire agent, pressure switch, solenoid actuator, container valve, and nozzle are all parts of the electromagnetic hanging type fm200 fire extinguisher system.
A temperature sensor, a fm200 cylinder, a fm200 fire agent, a nozzle, and a temperature sensor make up the temperature-based hanging type fm200 fire extinguisher.
Working principle:
The electromagnetic type:
A fire happens → smoke / heat detector catches the differences and send signal to the control panel → control panel receives the signal and activates the alarm bell to tell people quickly escape from the building → after receiving both signal from smoke and heat detector and a few seconds delay, the control panel activates the fire extinguishing system.
The temperature-based type:
A fire happens → the inside temperature is high enough to break the temperature sensor → the fire agent comes out and sprays from the nozzle.20L Hanging Fm200 Heptafluoropropane Automatic Suppression System 2
