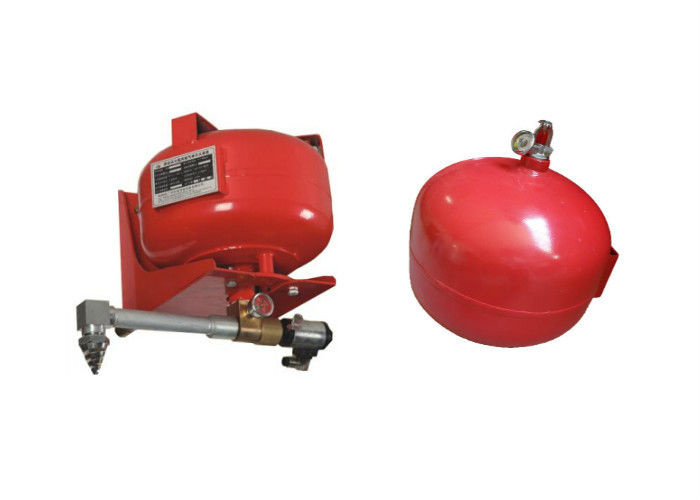

20L Hang Fire Suppression System With Fm200 Heptafluoropropane

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

20L Hang Fire Suppression System

,

Fm200 Hang Fire Suppression System

Dimension(mm):
670*341*410
Capacity Of Cylinder:
20L
Standard Of Examination:
GB25972-2010
Working Temperature:
0~50℃
Agent:
Heptafluoropropane
Pattern Of Extinguishing:
Enclosed Flooding
Dimension(mm):
670*341*410
Capacity Of Cylinder:
20L
Standard Of Examination:
GB25972-2010
Working Temperature:
0~50℃
Agent:
Heptafluoropropane
Pattern Of Extinguishing:
Enclosed Flooding
Product Description

20L Hanging Fm200 Automatic Suppression System Heptafluoropropane




Parameter:


No. Specification Technical Parameter
1 Filling pressure 1.6Mpa
2 Spraying time ≤8s
3 Working temperature 0~50℃
4 Starting mode Electrical start or manual start



Description:

A hanging fire suppression system, also known as a suspended fire suppression system, is a fire protection system designed to detect and suppress fires in specific areas or rooms. It is typically installed in commercial and industrial settings where fire hazards are present, such as data centers, server rooms, electrical control rooms, or storage facilities. Here is a general description of a hanging fire suppression system:

  1. Detection System: A variety of fire detection tools, including smoke detectors, heat detectors, and flame detectors, are included in the system. To keep an eye out for fire indicators, these detectors are placed in the protected area strategically.
  2. Control Panel: The system's principal command center is the control panel. In order to identify whether a fire is present, it collects signals from the detectors and processes the data. The suppression process begins when a fire is discovered.
  3. Suppression Agent: Depending on the unique requirements and characteristics of the protected area, the suppression agent employed in a hanging fire suppression system can change. Water, foam, inert gases (such as nitrogen or argon), or clean agents (such as FM200 or Novec 1230) are examples of common suppression agents. The type of fire, the presence of priceless equipment, and environmental considerations all have a role in the choice of suppression agent.
  4. Sprinkler System: A sprinkler system might be included in a hanging fire suppression system. When a fire is discovered, sprinkler heads that have been placed in strategic locations throughout the protected area are triggered. To contain or put out the fire, the sprinklers release water or other effective suppression chemicals.
  5. Piping Network: To carry the suppression agent to the selected places, a network of pipes is set up across the protected area. The pipe system makes sure that the fire suppression ingredient is distributed evenly, maximizing its efficiency.
  6. Discharge Nozzles:In order to offer the best coverage, discharge nozzles are positioned and attached to the piping network. To properly put out the fire, these nozzles distribute the suppression agent in a predetermined pattern.
  7. Activation and Control: The suppression system is turned on when the control panel detects the existence of a fire. In most cases, this entails sounding an alarm to notify the inhabitants and starting the release of the suppression agent through the piping system and discharge nozzles. To assist fire response and evacuation operations, the control panel may also link with other building systems, such as HVAC or access control.
  8. Safety Features: Safety precautions are built into hanging fire suppression systems to guard against unintentional discharge or system failure. Pressure sensors, manual activation stations, and alarms to signal system status or errors are a few examples of these features.
  9. Maintenance and Inspections: Regular maintenance and inspections are essential to ensure the proper functioning of the hanging fire suppression system. This includes checking the pressure and integrity of the piping network, testing the detection devices, and verifying the functionality of the control panel.

It's important to note that the design and installation of a hanging fire suppression system may vary depending on specific building requirements and local fire safety regulations. Consulting with a fire protection professional is recommended to ensure compliance and the most effective system for a particular application.


Applications:

    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.

    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.


Competitive Advantage:

    1. Small but effective
    2. Extremely simple installation
    3. Little space for placement of it
    4. Hanging on the ceiling or wall
    5. Low cost for little protective zone


Compositions:


The electromagnetic hanging type fm200 fire extinguishing systems and the temperature-based hanging type fm200 fire extinguishers are the two different types of hanging type fm200 fire suppression systems. They have slightly different compositions.


The fm200 cylinder, fm200 fire agent, pressure switch, solenoid actuator, container valve, and nozzle are all parts of the electromagnetic hanging type fm200 fire extinguisher system.


A temperature sensor, a fm200 cylinder, a fm200 fire agent, a nozzle, and a temperature sensor make up the temperature-based hanging type fm200 fire extinguisher.

Working principle:

The electromagnetic type:

A fire happens → smoke / heat detector catches the differences and send signal to the control panel → control panel receives the signal and activates the alarm bell to tell people quickly escape from the building → after receiving both signal from smoke and heat detector and a few seconds delay, the control panel activates the fire extinguishing system.

The temperature-based type:

A fire happens → the inside temperature is high enough to break the temperature sensor → the fire agent comes out and sprays from the nozzle.20L Hang Fire Suppression System With Fm200 Heptafluoropropane 0
