Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Xingjin |
| Certification: | CAL,CMA,CNAS,ILAC-MRA,CCC |
| Model Number: | QMDY30/80, QMDY20/80 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Plywood outer box with bubble bag or paper |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, Paypal, Credit card |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Cylinder Volume: | 80L | Pattern Of Extinguishing: | Enclosed Flooding |
|---|---|---|---|
| Agent: | IG55(50% Nitrogen, 50% Argon ) | Working Pressure: | 30MPa, 20MPa |
| Color: | Red | Max. Working Pressure: | 36.6 MPa, 23.2MPa |
| Min. Working Pressure: | 27MPa, 18MPa | System Start Mode: | Electrical Automatic, Electrical Manual, Mechanical Emergency Start |
| High Light: | IG55 Inert Gas Fire Suppression System,Eco Friendly Inert Gas Fire Suppression System |
||
Product Description

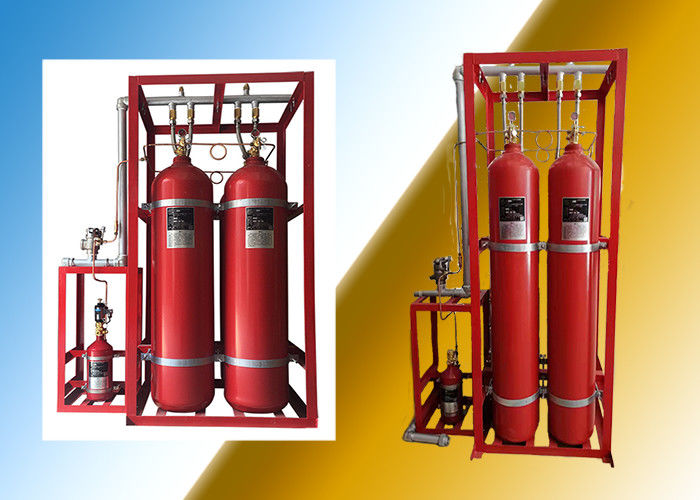

IG55 Argonite fire system
IG55 Argonite fire system
Description
The IG55 automatic fire extinguishing system is an illustration of a clean agent fire suppression system. It is designed to swiftly and effectively put out fires without harming delicate equipment or leaving behind residue. By combining two naturally occurring gases, argon and nitrogen, the process creates a non-conductive, non-conductive, and environmentally friendly fire-extinguishing agent.
Locations with priceless and sensitive technology, such as data centers, server rooms, communication hubs, and control rooms, are routinely secured with the IG55 system. When heat or smoke is detected by a fire detection system, an extinguishing agent is automatically discharged into the closed space.
The IG55 system extinguishes fires by reducing the amount of oxygen in the enclosed space to a point below which combustion is impossible. The system is designed to quickly and effectively put out flames while causing the least amount of harm to the building or the equipment it is protecting.
The IG55 system has a simple, reliable design that makes it suitable for a variety of applications. It is very simple to install and keep up with. The system is also very adaptable and may be configured to meet specific fire protection requirements.
The IG55 automatic fire extinguishing system offers quick and effective protection for irreplaceable facilities and equipment while minimizing damage and downtime.
Parameters
| No. | Specification | Technical Parameter | |
| 1 | Working Pressure | 20MPa | 30MPa |
| 2 | Device Model | QMDY20/80 | QMDY30/80 |
| 3 | Capacity | 80Ltr | 80Ltr |
| 4 | Outside Diameter of Cylinder | Φ279mm | Φ267mm |
| 5 | Height of Cylinder | 1610+70mm | 1770±10mm |
| 6 | Max Working Pressure | 23.2MPa | 36.6MPa |
| 7 | Min Working Pressure | 18MPa | 27MPa |
| 8 | Spraying Time | ≤120s | |
| 9 | Power | DC24V/1.6A | |
| 10 | Nitrogen Pressure of Driving Device | 6.0±1.0MPa(20℃) | |
| 11 | Condition of Reserving Room for Container | temperature: 0~50℃ | |
Application
The IG55 automatic fire extinguishing system can be used in any situation where fire safety is crucial. Listed below are a few situations where the IG55 system might be used:
The system of computers Important servers and computer systems are kept up to date in data centers, which are vulnerable to fire damage. The IG55 system is perfect for protecting these regions since it can put out flames rapidly without damaging the delicate electrical equipment.
Placing the communications infrastructure in place Telecommunications facilities require hardware like switches, routers, and servers to support communication networks. These installations can be safeguarded by the IG55 system, which will offer continuous communication in the case of a fire.
Museums and archives frequently house unique artifacts and irreplaceable records. These things can be shielded against fire damage by the IG55 system, preserving them for future generations.
Electricity production facilities: Substations and control rooms are two examples of locations where the equipment required to keep the energy flowing steadily is housed. By safeguarding these locations, the IG55 system can reduce the chance of outages and downtime.
Industrial establishments: Locations with combustible materials, such as chemical plants and manufacturing facilities, often pose a high fire risk. While reducing the risk of product and equipment damage, the IG55 system can effectively guard against fire.
Overall, the IG55 automatic fire extinguishing system is a versatile choice for a range of applications that demand dependable and efficient fire protection.
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Advantages
1. The 30MPa system requires 25% to 50% less extinguisher cylinders than the common 15MPa system.
2. By drastically reducing the floor area between the cylinders, the building's overall use value and utilization rate are increased.
3. A consistent 6MPa low pressure release lowers the cost of the pipes and other system parts.
4. With a transmission range of up to 200 meters, the continuous release pressure of 6 MPa provides a more reliable and effective pressure.
5. The entire system will discharge with little pressure, boosting safety and reducing harm to the machinery, inhabitants, and structure of the building.
6. Because it only maintains pressure during system discharge, the exterior continuous pressure-relief mechanism greatly decreases the chance of system failure and is simple to disassemble and maintain.
7. Thanks to easy disassembly and secondary filling with agent after discharge, the system can be placed into operation right away without changing any of the components.
8. It also makes it simpler to install and position the safety buckle by reducing the size of the opening hole in the gas pressure relief port. Additionally, it directly lowers the safety pressure relieving system's input cost.
9. IG55 fire extinguishing system can be widely used in important places that need rapid response to fire. There are workers, sudden fires and sensitive to chemical reactions on the site of the protection zone, the fire extinguishing system can effectively protect the safety of personnel and property.
Mimic Diagram
Multiple cylinders for multiple zones
Multiple cylinders for one zone
