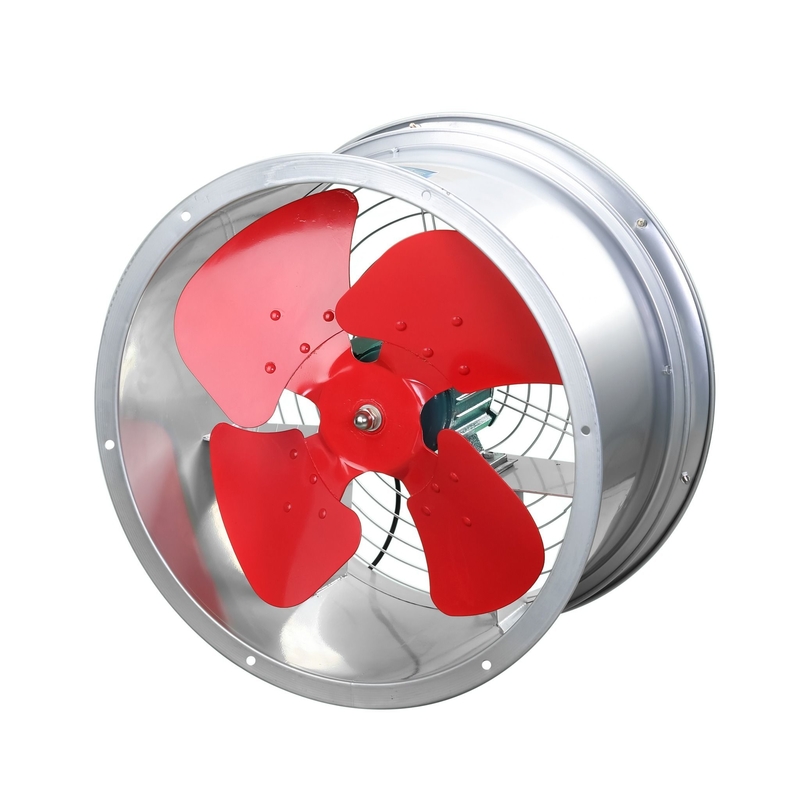

Electric SF Duct Axial Flow Smoke Extract Fan with Ball Bearing

SF/SF(B) Type Fuct Axial Flow Fan

Product introduction:

  SF duct axial flow fan achieves indoor cooling through negative pressure ventilation and water evaporation, which can break the thermal inertia of greenhouse air to the greatest extent, better maintain the stability of indoor microclimate, and fully realize full automation. It has good cooling, air supply and ventilation effects, is easy to operate, clean air, and has multiple installation methods. It is an economical and efficient cooling method.

Product features:
1. High efficiency and energy saving
Adopting 100% pure copper motor and double ball bearing and other internationally advanced energy-saving technologies and automatic thermal protection systems to ensure product safety and stability while reducing resistance and minimizing energy consumption.

2. Low noise
The fan blades are designed and manufactured according to the three-phase flow theory. The airfoil blades can be adjusted to achieve a variety of flow and pressure configurations, with large air volume and low noise.

3. Anti-corrosion and moisture-proof
The new bearings produced by precision technology have excellent wear resistance and corrosion resistance, are not easy to rust, have bidirectional stability, and are not afraid of impact during long-term high-speed operation. The cast iron shell and blade surface are sprayed with high-temperature powder, which is moisture-proof and durable.

4. Long service life
Adopting anti-corrosion and non-deformable stamping blades, thickened steel plates, double screw reinforced motors, high heat dissipation cast iron shells, double ball bearings, safe and durable, with a service life of more than ten years.

5. Various installation methods
According to the different needs of product usage scenarios, various installation methods such as hanging installation, fixed vertical installation, adjustable vertical installation, embedded installation, etc. are adopted, which are simple to operate and easy to install and disassemble.

Application areas:
1) Industrial field: textile, socks/clothing, glass, mold, rubber, spraying, screen printing, toys, electronics, home appliances, shoemaking, printing, food processing, dyeing, laundry and other high temperature workshops.

2) Civil field: Internet cafes, shops, supermarkets, canteens, vegetable markets, waiting rooms, entertainment venues and other places that require air conditioning.

3) Agricultural field: large farms, greenhouses, livestock farms, etc.

The place of use does not contain flammable, explosive or corrosive gases, and the temperature shall not exceed 60℃.

Product parameters and size table:

SF duct axial series fan appearance and installation dimensions Machine number (No) D D1 D2 L L1 nxd D3             n d   3G 305 325 350 320 260 3 6 380 3.5G 355 375 400 320 260 4 6 430 4G 405 430 460 330 265 4 6 500 5G 505 520 550 400 330 4 6 580 5.6G 565 590 620 460 400 4 6 640 6G 605 630 670 490 420 6 9 700 7G 705 730 785 520 430 8 9 300 8G 810 845 880 520 430 8 9 900 9G 910 950 980 — 550 12 12 (without horn mouth) 10G 1010 1055 1090 — 550 12 12 (without horn mouth) 12G 1210 1265 1310 — 650 12 12 (without horn mouth)

SF(B) series duct axial flow fans appearance and installation dimensions​ Model (NO) Power (KW) Speed (r/min) Voltage (V) Flow (m/h) Pressure (Pa) 3B 0.12 400 220/380 1818 33 3.5B 0.18 1400 220/380 2908 52 4B 0.25 1400 220/380 4413 92   5B 0.18 910 380 3932 49   0.37 1400 220 5817 96   0.37 1400 380 5817 96 5.6B 0.25 910 380 5524 54   0.37 1400 380 8172 120   6B 0.55 400 220 8604 131   0.55 1400 380 8604 131   0.37 910 380 5817 71

Packaging and Shipping:
Product Packaging:
Each smoke exhaust fan is securely wrapped with protective materials and placed in a sturdy carton to prevent any damage during transportation and ensure safe delivery. .

Shipping:
We provide fast and reliable shipping services for all smoke exhaust fan orders. Once your order is confirmed, our team will quickly process and ship in time according to your needs. You will receive a tracking number so that you can check the delivery status of your package at any time.

FAQ:
Q: Are you a trading company or a manufacturing factory?
A: We are both a manufacturer and a trading company. We have our own factory for nearly 15 years, and we provide better services to overseas customers.
Welcome to inquire!

Q: Can you customize the blade or paint color?
A: Yes, we have a variety of blade types and paint colors to choose from, you can also provide design drawings, we will customize it for you.

Q: How long is the quality guarantee period of your products?
A: We can provide a 2-year quality guarantee.

Q: What is your minimum order quantity?
A: Usually there is no minimum order quantity, but since the single piece shipping cost is high, we recommend ordering more than 5 pieces.

Q: Can you do OEM and build our own brand?
A: Yes, we can provide OEM and ODM services, and you can also build your own brand on the product.
