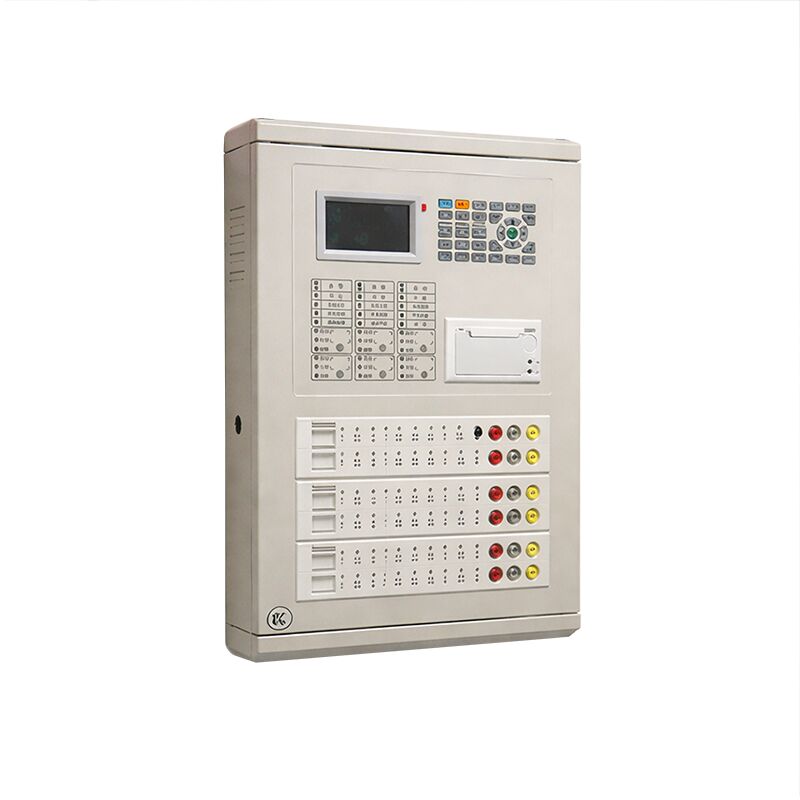

4-Zone Fire Alarm Control Panel with 255 Addressable Devices and Wall-Mounted Gas Suppression Controller

Name: 4-Zone Fire Alarm Control Panel with 255 Addressable Devices and Wall-Mounted Gas Suppression Controller
Brand: Guangzhou Xingjin Fire Equipment Co.,Ltd.
SKU: QTC5015
Price: 10.63 USD
Availability: InStock

Product Details

Place of Origin: Guangzhou,China

Brand Name: XINGJIN

Certification: CCC,CAC,ROHS

Model Number: QTC5015

Payment & Shipping Terms

Minimum Order Quantity: 20 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20days

Payment Terms: T/T,L/C

Supply Ability: 30000set/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                4-Zone Fire Alarm Control Panel, 255 Addressable Devices Gas Suppression Control Panel, Wall-Mounted Fire Alarm Controller


Size:	385mm×134mm×510mm	Main Power:	Ac 220V (3A)
Voltage Variation Range:	＋10%～－15%	Controller Backup Power:	24V DC (10A)
Operating Ambient Temperature:	-10℃～+50℃	Relative Humidity Of The Usage Environment:	≤95%, No Condensation
Weight:	12kg	Light Intensity:	135cd
Starting Current:	≤1.6A	Battery Charge Current:	0.7A Maximum

Size:	385mm×134mm×510mm
Main Power:	Ac 220V (3A)
Voltage Variation Range:	＋10%～－15%
Controller Backup Power:	24V DC (10A)
Operating Ambient Temperature:	-10℃～+50℃
Relative Humidity Of The Usage Environment:	≤95%, No Condensation
Weight:	12kg
Light Intensity:	135cd
Starting Current:	≤1.6A
Battery Charge Current:	0.7A Maximum

Product Description

JB-QB-QTC5015 Fire Alarm Controller

Introduction:

The JB-QB-QTC5015 Fire Alarm Control Panel (Gas Suppression Type) is an integrated intelligent control system combining fire detection, automatic linkage control, and gas fire suppression in one compact wall-mounted unit.

Designed for high-value and mission-critical environments, the system supports 4 gas suppression zones and up to 255 addressable devices per loop, ensuring reliable and accurate fire protection.

It complies with GB4717-2005 and GB16806-2006 standards and is suitable for indoor fire protection systems.

Technical Specifications

Model:	JB-QB-QTC5015
Type:	Fire Alarm & Gas Suppression Control Panel
Installation:	Wall-mounted
Dimensions:	385 × 134 × 510 mm
Gas Zones:	4 zones
Alarm Loop Capacity:	255 addressable devices
Direct Outputs:	6 circuits
Power Supply:	AC220V ±10%
Backup Power:	24V DC battery system
Communication:	CAN bus / RS485
Working Temperature:	0°C – +40°C
Humidity:	≤95% (non-condensing)
