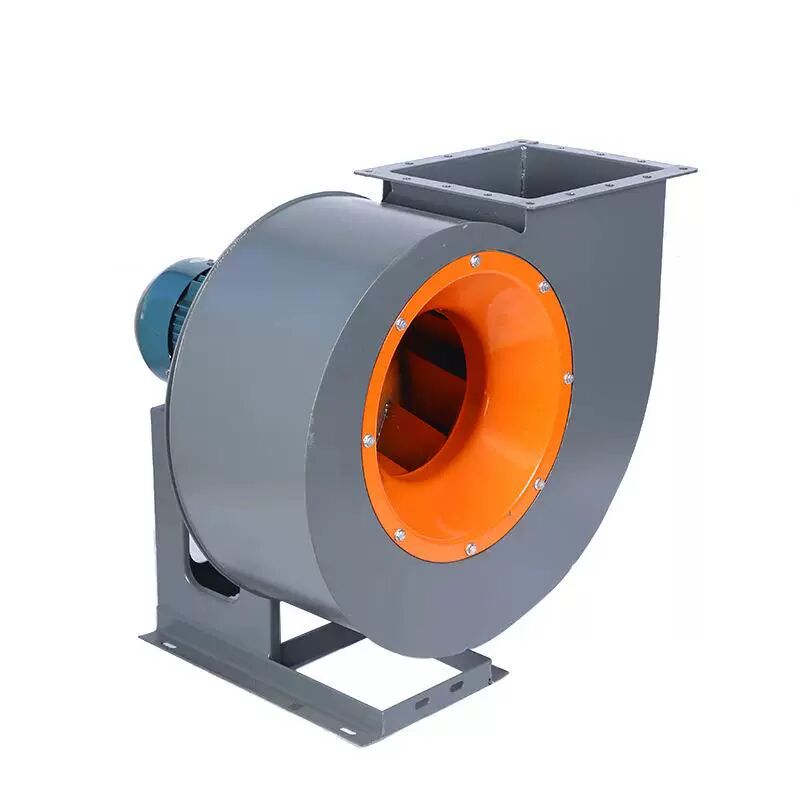

4-72-A type centrifugal fan

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Weight:	15 Kg	Noise Level:	65 DB
Protection Rating:	IP54	Power Range:	0.25-7.5KW
Airflow Rate:	890-22348m³/h

Weight:	15 Kg
Noise Level:	65 DB
Protection Rating:	IP54
Power Range:	0.25-7.5KW
Airflow Rate:	890-22348m³/h

Product Description

Product Introduction:

This series of fans feature high efficiency, low noise, stable pressure curve, and wide application range. They are mainly used for indoor ventilation and air exchange in factories and enterprises, stadiums, opera houses, basements, hotels of all sizes, restaurants, shopping malls, and large-scale buildings. They can also be used in conjunction with other types of machinery for gas circulation. The conveyed medium is air and other non-flammable, harmless to the human body, and non-corrosive gases. The B4-72 model uses an explosion-proof motor and can be used for ventilation and air exchange of flammable volatile gases. The gas temperature should be ≤80℃, and there should be no viscous substances, dust, and solid impurities in the gas, which should be ≤150mg/m³.

Model parameters:

Model	Power (KW)	Rotational speed (r/min)	Traffic (m³/h)	Total pressure (Pa)
2.5A	0.75	2800	1223-1981	855-482
2.8A	1.5	2800	1131-2356	994-606
3.2A	2.2	2800	1688-3517	1300-792
3.2A	1.1	1400	844-1758	324-198
3.6A	3	2900	2664-5268	1578-989
3.6A	1.1	1400	1332-2634	393-247
4A	5.5	2900	4012-7419	2014-1320
4A	1.1	1400	2006-3700	501-329
4.5A	7.5	2900	5712-10562	2554-1673
4.5A	1.1	1400	2856-5281	634-416
5A	15	2930	7728-15455	3187-2019
5A	2.2	1420	3864-7728	790-502
5.6A	22	2930	10122-25736	4152-2330
5.6A	3	1420	5009-12736	1017-570
6A	7.5	1450	7840-18047	1395-570
	5.5	1450	6950-15037	1320-731
	4	1450	5677-13353	1137-724
	1.5	960	4420-8841	498-317
7A	11	1450	10602-21204	1550-984

Product size:

Machine number	Inlet size				Outlet size							Dimensions of the shape							Basic dimensions					Equipped with motor	Weight/kg (excluding motor)
Machine number	d1	d2	d3	n-md	A1	A2=axb	A3	A4	A5=cxd	A6	N-Φ1	F	G	M	N	L	E	E1	a1	a	b1	b	k	Equipped with motor	Weight/kg (excluding motor)
No2.8	280	306	330	8-M8	196	228=76X3	256	224	258=86X3	284	12-Φ9	195	465	570	196	455	102	210	140	180	100	135	90	Y90S-2,1.5KW	18.5kg
No3.2	320	350	380	8-M8	224	258=86X3	284	256	288=96X3	316	12-Φ9	220	530	625	224	485	115	220	140	180	100	135	90	Y90S-4,1.1KW	22.6kg
No3.2	320	350	380	8-M8	224	258=86X3	284	256	288=96X3	316	12-Φ9	220	530	625	224	508	115	235	140	180	125	135	90	Y90L-2,2.2KW	22.6kg
No3.6	360	394	420	8-M8	256	288=96X3	316	288	321=107X3	348	12-Φ9	246	593	701	256	520	132	238	140	180	100	135	90	Y90S-4,1.1KW	28.6kg
No3.6	360	394	420	8-M8	256	288=96X3	316	288	321=107X3	348	12-Φ9	246	593	701	256	592	132	265	160	205	140	180	100	Y100L-2,3KW	28.6kg
No 4	400	440	475	8-M8	280	321=107X3	360	320	360=120X3	400	12-Φ9	272	664	774	280	540	145	251	140	180	100	135	90	Y90S-4,1.1KW	38kg
No 4	400	440	475	8-M8	280	321=107X3	360	320	360=120X3	400	12-Φ9	272	664	774	280	665	145	305	216	280	140	205	132	Y132S1-2,5.5KW	38kg
No4.5	450	490	520	8-M8	315	360=120X3	395	360	402=134X3	440	12-Φ9	302	737	875	315	575	160	265	140	180	100	135	90	Y90S-4,1.1KW	49.7kg
No4.5	450	490	520	8-M8	315	360=120X3	395	360	402=134X3	440	12-Φ9	302	737	875	315	705	160	320	216	280	140	205	132	Y132S2-2,7.5KW	49.7kg
No 5	500	550	580	16-M8	350	392=98X4	430	400	440=110X4	480	16-Φ9	333	816	966	350	670	180	313	160	205	140	180	100	Y100L1-4,2.2KW	70.7kg
No 5	500	550	580	16-M8	350	392=98X4	430	400	440=110X4	480	16-Φ9	333	816	966	350	840	180	393	254	330	210	275	160	Y160M2-2,15KW	70.7kg
No5.6	560	610	640	16-M8	392	432=108X4	472	448	492=123X4	528	16-Φ9	382	927	1117	392	710	200	333	160	205	140	180	100	Y100L2-4,3KW	91.6kg
No5.6	560	610	640	16-M8	392	432=108X4	472	448	492=123X4	528	16-Φ9	382	927	1117	392	950	200	445	279	355	241	315	180	Y180M-2,22KW	91.6kg
No 6	600	650	680	16-M8	420	460=115X4	500	480	520=104X5	560	16-Φ9	400	976	1156	420	740	215	348	160	205	140	180	100	Y100L-6,1.5KW	111.2kg
No 6	600	650	680	16-M8	420	460=115X4	500	480	520=104X5	560	16-Φ9	400	976	1156	420	757	215	355	190	245	140	185	112	Y112M-4,4KW	111.2kg
No 7	700	750	780	16-M10	490	540=135X4	590	560	615=123X5	660	18-Φ11	474	1150	1394	490	1040	250	465	254	330	210	275	160	Y160M-4,11KW	167.2kg
