Automatic Hanging Type Of Hfc227ea Firefighting System Factory High Quality High Safety with Advanced Features

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 8L/16L/20L/30L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fm 200 fire system

,

fm 200 fire extinguisher

Storage Pressure:
1.6 Mpa
Zone Management:
Single
Agent:
Fm200(htc-227ea Or Heptafluoropropane)
Capacity Of Cylinder:
16L、20L、30L、40L、50L
Pattern Of Extinguishing:
Enclosed Flooding
Actuation:
Automatic Or Manual
Storage Pressure:
1.6 Mpa
Zone Management:
Single
Agent:
Fm200(htc-227ea Or Heptafluoropropane)
Capacity Of Cylinder:
16L、20L、30L、40L、50L
Pattern Of Extinguishing:
Enclosed Flooding
Actuation:
Automatic Or Manual
Product Description

Hanging type of fm200 automatic fire suppression system


Parameter:


No. Specification Technical Parameter
1 Filling pressure 1.6Mpa
2 Spraying time ≤8s
3 Working temperature 0~50℃
4 Starting mode Electrical start or manual start



No. Model Max filling weight of agent(Kg) Net weight of container(Kg)
1 XQQC16L 16 14
2 XQQC20L 20 18
3 XQQC30L 30 20
4 XQQC40L 40 22
5 XQQC50L 50 24


Description:

    A hanging type of FM200 automatic fire suppression system is a type of gaseous fire suppression system that is typically installed in server rooms, computer rooms, and data centers, among other applications. This system uses FM200 gas, a colorless and odorless extinguishing agent that is highly effective in suppressing fires by reducing the oxygen concentration to a point where combustion is not possible.

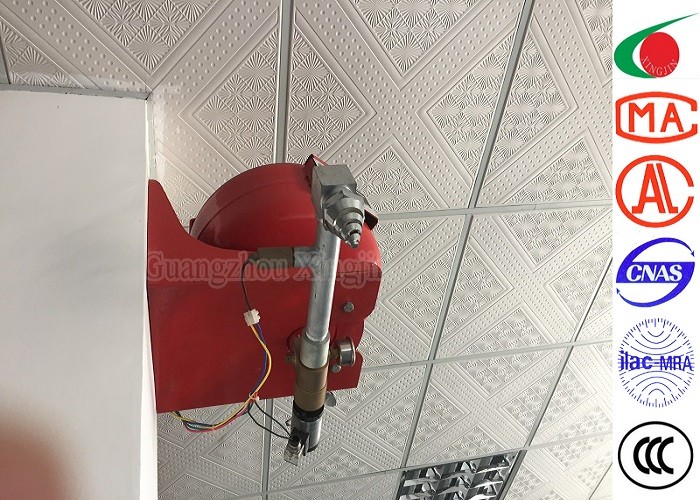

The hanging type FM200 system is designed to be mounted on a ceiling and is typically used in environments where floor space is limited. The system is composed of FM200 cylinders, detection and control panels, discharge nozzles, and distribution piping.

The cylinders are usually mounted on a frame that is suspended from the ceiling at a suitable height. The detection and control panels are connected to the cylinders and are responsible for monitoring the protected area for any signs of fire. When a fire is detected, the control panel activates the discharge mechanism, which causes the gas to be released from the cylinders and distributed throughout the protected area via the discharge nozzles and distribution piping.

The discharge nozzles are strategically placed throughout the protected area and are designed to distribute the FM200 gas in a uniform manner. The distribution piping is typically made of stainless steel and is used to transport the gas from the cylinders to the discharge nozzles.

One of the main advantages of hanging type FM200 systems is their compact design, which allows them to be installed in small rooms and tight spaces. Compared with other types of fire suppression systems, FM200 systems require minimal cleanup after activation since the gas leaves no residue, which is particularly desirable in environments where sensitive electronic equipment is present.

Overall, hanging type FM200 automatic fire suppression systems are reliable, effective, and easy to install and maintain. They offer fast and efficient fire protection with minimal damage to sensitive equipment or materials.

Applications:

    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.

    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.

Compositions:

    Hanging type of fm200 automatic fire suppression system is mainly composed by two parts. Extinguishing devices and electrical accessories.

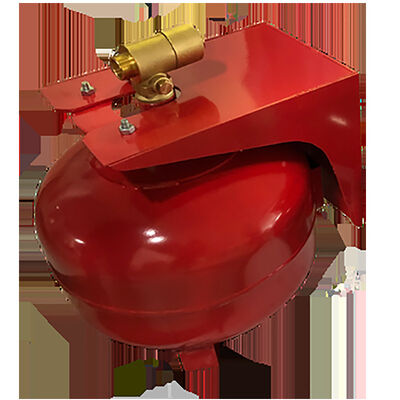

    Extinguishing devices are such things, like cabinet to store extinguishing device, cylinder to fill and store fm200 and flexible hose ans solenoid actuator and so on.

    Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.

    These integrated two parts will be efficient to detect and supervise and alarm and extinguish fire automatically.

Here attached below is complete composition of whole system,
Automatic Hanging Type Of Hfc227ea Firefighting System Factory High Quality High Safety with Advanced Features 0

Competitive Advantage:

    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.

    Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.

    It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.

    Different from piped network type of fm200 automatic fire suppression system, it will be simple to install. Because there is no pipeline installation. If your protective zone is really small and there is no more space to put extinguishing device, this type can be under consideration. Because it will be hanged on the ceiling or attached on the wall.

Working principle:

Here is the illustration of working principle to whole system,

Automatic Hanging Type Of Hfc227ea Firefighting System Factory High Quality High Safety with Advanced Features 1

Simulated diagram:

Below attached is one mimic diagram of single cabinet type of fm200 automatic fire suppression system,

Automatic Hanging Type Of Hfc227ea Firefighting System Factory High Quality High Safety with Advanced Features 2
Automatic Hanging Type Of Hfc227ea Firefighting System Factory High Quality High Safety with Advanced Features 3
