Heptafluoropropane Fm200 Extinguishing System GB25972-2010 Standard

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fire suppression systems

,

automatic fire suppression system

Actuation:
Electrical Or Manual
Capacity Of Cylinder:
30L
Standard Of Examination:
GB25972-2010
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Agent Fm200(htc-227ea Or Heptafluoropropane)
Zone Management:
Single
Actuation:
Electrical Or Manual
Capacity Of Cylinder:
30L
Standard Of Examination:
GB25972-2010
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Agent Fm200(htc-227ea Or Heptafluoropropane)
Zone Management:
Single
Product Description

Heptafluoropropane Fm200 Extinguishing System GB25972-2010 Standard





Parameter:



No. Specification Technical Parameter
1 Filling pressure 1.6Mpa
2 Spraying time ≤8s
3 Working temperature 0~50℃
4 Starting mode Electrical start





Description:



    1. Multiple management in the control of the whole system

    2. Agent quantity for biggest zone is enough to protect all zones through selector valves

    3. Direct target to expensive machine or delicate device

    4. Short time discharge of extinguishing agent

    5. Preparation for storage room

    6. Space confirmation of placement for cylinder group





Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.





Competitive advantage:



    1. Small but effective

    2. Extremely simple installation

    3. Little space for placement of it

    4. Hanging on the ceiling or wall

    5. Low cost for little protective zone

    6. Colorless, tasteless and pure

    7. Do no harm to environment

    8. Easy transportation





Compositions:

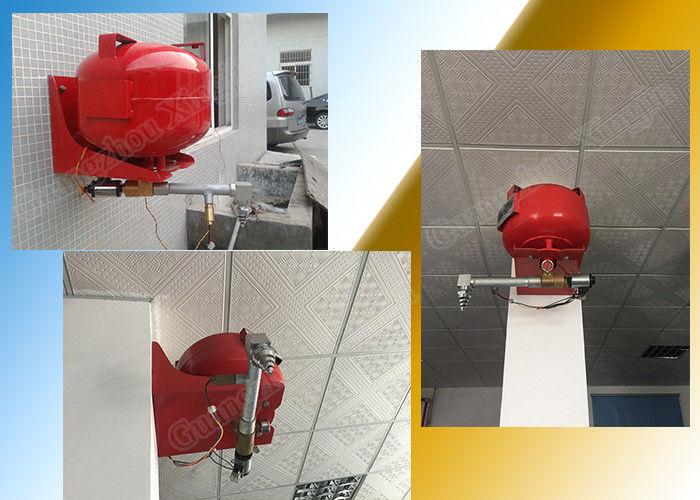

   Hanging type fm200 fire suppression device can be divided into two types: one is the electromagnetic type, the other is the temperature-controlled type.



   The electromagnetic type hanging fm200 fire suppression device consists of a fm200 cylinder, a container valve, a solenoid actuator, a pressure switch, a stainless steel pipe, and a nozzle.



   The temperature-controlled type hanging fm200 fire suppression system prefers a unit of temperature sensor instead of container valve and solenoid valve.

Heptafluoropropane Fm200 Extinguishing System GB25972-2010 Standard 0





Attentions:



1/ One protected zone can just be equipped with one temperature-based hanging type fm200 fire suppression system.



2/ The temperature-based hanging type fm200 fire extinguisher doesn't need those electrical elements; The electromagnatic hanging type fm200 fire suppression system should be used together with electrical elements.



3/ Users should follow the routine check schedual that we provide.



4/ If there is any problem, we suggest that users shouldn't fix or touch anything. And the best method is to call and tell us the problem and then we send our professionals to fix it.
