Non Corrosive HFC 227ea Fire Extinguishing System FirefightersEquipment

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fire suppression systems

,

automatic fire suppression system

Working Temperature:
0~50℃
Placement:
Hanging On The Wall
Standard Of Examination:
GB25972-2010
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea
Zone Management:
Single
Working Temperature:
0~50℃
Placement:
Hanging On The Wall
Standard Of Examination:
GB25972-2010
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea
Zone Management:
Single
Product Description

Non Corrosive HFC 227ea Fire Extinguishing System FirefightersEquipment



Parameter:



No. Specification Technical Parameter
1 Filling pressure 1.6Mpa
2 Spraying time ≤8s
3 Working temperature 0~50℃
4 Starting mode Electrical start



Description:



    Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing and do no harm to the environment. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.



Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.



Competitive Advantage:



   Fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.



   It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.





Simulated diagram:

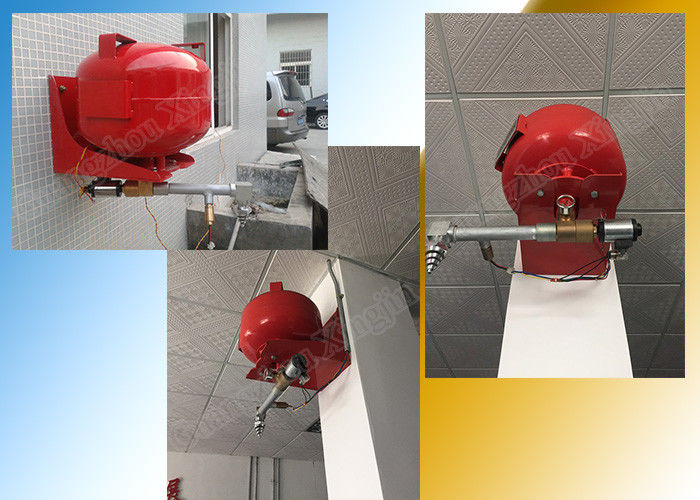

Below attached is one mimic diagram of Hanging Hfc227ea Fire Suppression with Solenoid Actuator,

             Non Corrosive HFC 227ea Fire Extinguishing System FirefightersEquipment 0





Compositions:



   Hanging type fm200 fire suppression device can be divided into two types: one is the electromagnetic type, the other is the temperature-controlled type.



   The electromagnetic type hanging fm200 fire suppression device consists of a fm200 cylinder, a container valve, a solenoid actuator, a pressure switch, a stainless steel pipe, and a nozzle.





Attentions:



1/ One protected zone should only be equipped with one temperature-based hanging type fm200 fire extinguishing system.



2/ Users should better follow the routine check schedual that we provide in the manual instruction.



3/ If there is any problem, we suggest that users shouldn't fix even touch it themselves. The proper way is to call and explain the problem to us, and then we will send professionals to help.
