2.5Mpa Fire Suppression System Fm200 120L Single Cabinet Type

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fm 200 fire system

,

hfc227ea fire suppression systems

Model Of Cabinet:
Single
Capacity Of Cylinder:
120L
Weight:
73kg
Volume Of Cabinet:
575L
Storage Pressure:
2.5Mpa
Agent:
Fm200
Model Of Cabinet:
Single
Capacity Of Cylinder:
120L
Weight:
73kg
Volume Of Cabinet:
575L
Storage Pressure:
2.5Mpa
Agent:
Fm200
Product Description

2.5Mpa Fire Suppression System Fm200 120L Single Cabinet Type





Parameter:



No. Specification Technical Parameter
1 Filling pressure 2.5Mpa
2 Relief pressure 5.0±0.225Mpa
3 Spraying time ≤10s
4 Working temperature 0~50℃
5 Power DC24V/1.6A
6 Max working pressure 4.2Mpa





Description:



    1. Totally automatic system

    2. Accurate control of protection zone

    3. No need for employment of monitor staff

    4. Manual or electromagnetic manipulation and mechanical manipulation

    5. Short time discharge of extinguishing agent

    6. Preparation for storage room

    7. Colorless, tasteless and non-corrosive

    8. Easy installation and careful but convenient transportation

    9. Environmentally friendly products

    10. Good substitute for halon series



Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.





Compositions:



    Hfc227ea Firefighting System Of 120l Single Cabinet Type is mainly composed by two parts. Extinguishing devices and electrical accessories.



    Extinguishing devices are such things, like cabinet to store extinguishing device, cylinder to fill and store fm200 and flexible hose and solenoid actuator and so on.



    Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.



    These integrated two parts will be efficient to detect and supervise and alarm and extinguish fire automatically.



    Here attached below is complete composition of whole system,

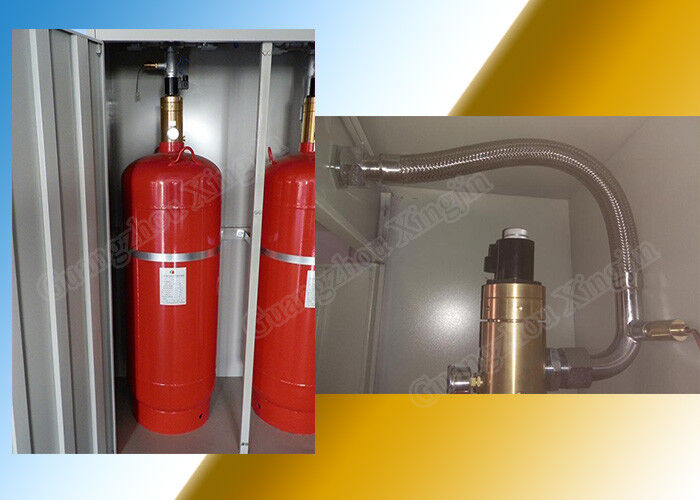

               2.5Mpa Fire Suppression System Fm200 120L Single Cabinet Type 0





Attentions:



1. The volume of a unit protected zone should not be bigger than 1600 cubic metres; the proportion of a unit protected zone should not be larger than 500 square metres.



2. We suggest that the system should have a whole check once a year.



3. The system should be carafully transported and conveyed in case that some careless actions wrongly open the fire suppression system before finishing installation.
