Cabinet Type FM200 Fire Suppression System with HFC-227ea Clean Agent for Automatic Detection and ≤10s Discharge

Product Overview

The Cabinet Type HFC-227ea (FM200) Fire Suppression System is an innovative, self-contained automatic fire extinguishing solution developed by Guangzhou Xingjin Fire Equipment Co., Ltd.

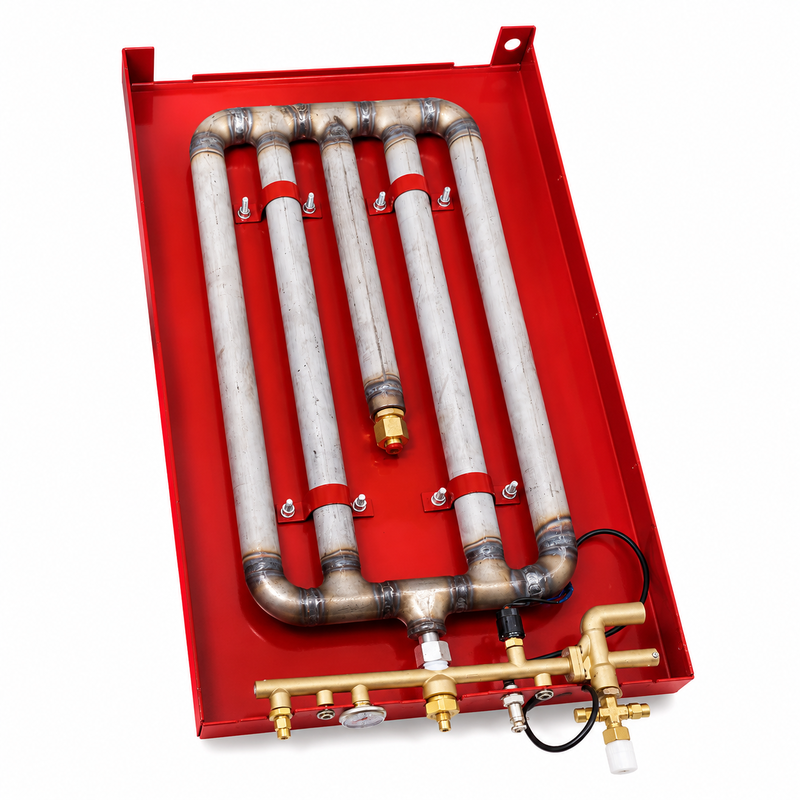

This system integrates the extinguishing agent storage cylinder, delivery piping, nozzles, pressure gauge, fire detector, and signal feedback device into a compact cabinet. The integrated design eliminates the need for a separate cylinder storage room and complex pipe network installation—making it an ideal choice for small to medium-sized protected areas such as server rooms, telecom equipment rooms, UPS rooms, and electrical control cabinets.

Technical Specifications

Parameter	Specification
Agent Type	HFC-227ea (FM200)
Storage Pressure (20°C)	2.5MPa
Max. Working Pressure (50°C)	4.2MPa
Cylinder Capacities	40L, 70L, 90L, 100L, 120L, 150L, 180L
Max. Filling Rate	≤0.95kg/L
Discharge Time	≤10s
Working Temperature Range	0°C – 50°C
Max. Protected Area (Single Zone)	≤500m²
Max. Protected Volume (Single Zone)	≤1600m³
Power Supply	DC24V/1.5A
Actuation Mode	Automatic / Manual / Mechanical Emergency Manual
Applicable Fire Classes	A, B, C (Solid, Liquid, Electrical)

Model Specifications

Model No.	Cylinder Capacity	Cabinet Size (mm)	Est. Net Weight (kg)	Max. Protected Volume
GQQ40/2.5	40L	450×400×1450	~33	≤1600m³
GQQ70/2.5	70L	550×450×1650	43-50	≤1600m³
GQQ90/2.5	90L	550×450×1650	43-50	≤1600m³
GQQ100/2.5	100L	550×450×1650	55-64	≤1600m³
GQQ120/2.5	120L	550×550×1900	60-73	≤1600m³
GQQ150/2.5	150L	550×550×1900	~80	≤1600m³
GQQ180/2.5	180L	600×550×2150	~80	≤1600m³

Key Product Advantages

1. Superior Fire Extinguishing Performance with Clean Agent

The system uses HFC-227ea (FM200) , a colorless, odorless, non-conductive clean gas agent. It extinguishes fires primarily through heat absorption (80%) and chemical chain reaction interruption (20%).

Key agent benefits:

• Zero Ozone Depletion Potential (ODP)

• Leaves no residue—no post-fire cleanup required

• Non-conductive—safe for sensitive electronic equipment

• Low toxicity—suitable for occupied spaces

• Effective against Class A, B, and C fires (solid, liquid, and electrical fires)

2. Integrated Automatic Fire Detection and Suppression

The system combines fire detection and extinguishing in one unit. It monitors the protected area via detectors and automatically activates the solenoid actuator to discharge the agent when a fire is detected. This eliminates the need for a standalone detection panel in basic configurations.

3. Dual Activation Mode

• Automatic Mode: Detectors trigger system release upon fire detection

• Manual Mode: Manual emergency start button for operator-initiated discharge

• Mechanical Emergency Manual: Bypasses electrical control for fail-safe actuation

4. Fast Discharge – ≤10 Seconds

With a discharge time of ≤10 seconds, the system responds rapidly to suppress fires in their early stages, minimizing damage and downtime.

Applications

The Cabinet Type FM200 Fire Suppression System is specifically designed for protection of:

• Data centers and server rooms – Protect critical IT equipment from electrical fires

• Telecom and communication facilities – Cell sites, telephone exchanges

• Control rooms and electrical switchgear rooms – Prevent costly downtime

• UPS rooms and battery storage areas – Fire hazards from electrical faults

• Archives, libraries, and museums – Protect irreplaceable documents and artifacts

• Flammable liquid storage areas – Class B fire protection

Packaging & Shipping

Inner Packaging

Each cabinet-type fire suppression unit is individually wrapped with bubble bag or anti-static protective film to prevent dust ingress and surface scratches during transit. All sensitive components are secured with cushioning materials to prevent movement.

Outer Packaging

The unit is placed inside a heavy-duty carton with foam inserts providing shock absorption.

Wooden Crate (for International Shipments)

All units are reinforced with export-grade wooden crates constructed from kiln-dried, heat-treated timber (compliant with ISPM 15 standards). Each crate features:

• Internal foam padding for impact protection

• Steel-reinforced corners for structural integrity

• Clear handling labels: "FRAGILE," "THIS SIDE UP," and "KEEP DRY"

Shipping Information

• Standard lead time: 10–15 working days

• Shipping methods: Sea freight, air freight, or international courier (DHL, FedEx, UPS)

• Port of loading: Guangzhou, China

• Export documentation: Commercial invoice, packing list, bill of lading, certificate of origin

About Guangzhou Xingjin Fire Equipment Co., Ltd.

Guangzhou Xingjin Fire Equipment Co., Ltd. is a professional manufacturer specializing in automatic clean agent fire suppression systems. With over 10 years of industry experience and SGS/BV certification, we offer:

• Factory-direct pricing with 5-year quality guarantee

• Customized solutions (OEM/ODM available)

• Professional technical support and installation guidance

• Global export experience to Middle East, Southeast Asia, Africa, and beyond
