High-Purity Nitrogen 6.0MPa Drive Cylinder with Dual Actuation for Inert Gas Fire Suppression Systems

Name: High-Purity Nitrogen 6.0MPa Drive Cylinder with Dual Actuation for Inert Gas Fire Suppression Systems
Brand: Guangzhou Xingjin Fire Equipment Co.,Ltd.
SKU: QQP4/6 QQP7.5/6 QQP10/6 QQP20/6 DQP40/6
Price: 831.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QQP4/6 QQP7.5/6 QQP10/6 QQP20/6 DQP40/6

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 10-15 working days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 300 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                6.0MPa Drive Cylinder, High-Purity Nitrogen Drive Cylinder, Dual Actuation Drive Cylinder


Power:	DC24V/1.6A	Spraying Time:	≤10s
System Components:	Control Panel, Cylinders, Piping, Nozzles, Detectors	Durability:	High Durability
Environmental:	Environmentally Friendly

Power:	DC24V/1.6A
Spraying Time:	≤10s
System Components:	Control Panel, Cylinders, Piping, Nozzles, Detectors
Durability:	High Durability
Environmental:	Environmentally Friendly

Product Description

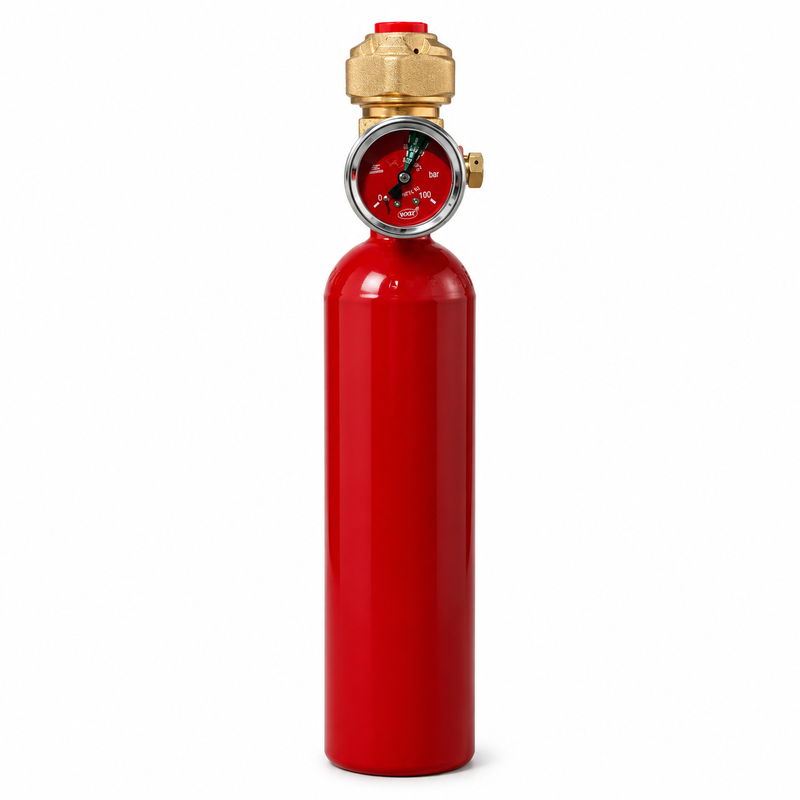

Driving Gas Cylinder —— The Power Core of Gas Fire Suppression Systems

Product Introduction

The Driving Gas Cylinder is a critical actuation component in gas fire suppression systems, enabling automatic, manual, and mechanical emergency start operations. By storing high-pressure nitrogen, it quickly and reliably opens selector valves and agent container valves when a fire occurs, ensuring the extinguishing agent reaches the protected area in the shortest possible time.

Technical Specifications

Parameter	Specification
Cylinder Volume	4L / 10L (customizable)
Charging Pressure (20℃)	6.0 MPa
Driving Medium	High-purity Nitrogen (moisture ≤15mL/m³)
Operating Voltage	DC 24V ± 3V, 1.5A
Solenoid Force	55N ~ 90N
Connection Thread	M14×1.5 (flare)
Operating Temperature	0℃ ~ +50℃
Standard	GB 25972-2010 Gas Fire Extinguishing Systems and Components
Compatible Systems	FM200, IG541, IG100, IG55, High-Pressure CO₂, External Storage HFC-227ea, Novec1230

Key Advantages

Safe and Reliable: Manufactured with high-quality seamless steel cylinders, each unit undergoes rigorous pressure and leakage testing to ensure normal operation at -18℃~+50℃. Key components are FM/UL certified.
Dual Actuation Assurance: Supports both electrical automatic start (DC 24V solenoid valve) and mechanical emergency manual start (manual push button), ensuring operation under any circumstances.
Multi-Level Safety Protection:
- Solenoid Driver Safety Pin: Prevents accidental discharge during transportation and installation
- Low Leakage High Seal Valve: Automatically vents minor pipeline leaks to prevent system mis-actuation
- Real-time Pressure Gauge: Enables easy daily inspection and monitoring
Standardized Interface: M14×1.5 flare thread connections compatible with mainstream actuation piping systems for easy installation.
Low Maintenance: Cylinders are refillable with long service life; solenoid actuators are removable for inspection, reducing maintenance costs.

Key component parameters

Component Name	Parameter Description
Electromagnetic Actuator	Model MFZ1 series, DC 24V power supply, rated current 1.5A, rated suction force 55N-90N (depending on specific model)
Pneumatic Actuator	Model QQQ1.2MPa / DYQQ1.2MPa / HQQ1.2MPa, nominal pressure 6.6MPa, minimum actuation pressure 1.2MPa
Low-Pressure Relief & Check Valve	Model EDGO.3/6.6, closing pressure 0.3±0.03MPa, used to prevent false actuation due to minor leakage in the pilot line
Pneumatic Check Valve	Model EQD6/6.6, nominal diameter 6mm, opening pressure 0.2MPa, connection thread M14×1.5
Pilot Line	φ8×1 copper tube, ferrule-type tube fittings connection, bracket spacing ≤0.6m
Safety Relief Device	Configured according to the driving cylinder bank pressure to prevent overpressure

About Guangzhou Xingjin Fire Equipment Co., Ltd.

Guangzhou Xingjin Fire Equipment Co., Ltd. is a professional manufacturer specializing in automatic clean agent fire suppression systems. With over 10 years of industry experience and SGS/BV certification, we offer:

Factory-direct pricing with 5-year quality guarantee
Customized solutions (OEM/ODM available)
Professional technical support and installation guidance
Global export experience to Middle East, Southeast Asia, Africa, and beyond
